lamborghini gallardo coupe (2008) a/c condenser parts diagram

260.02.00 - A/C CONDENSER

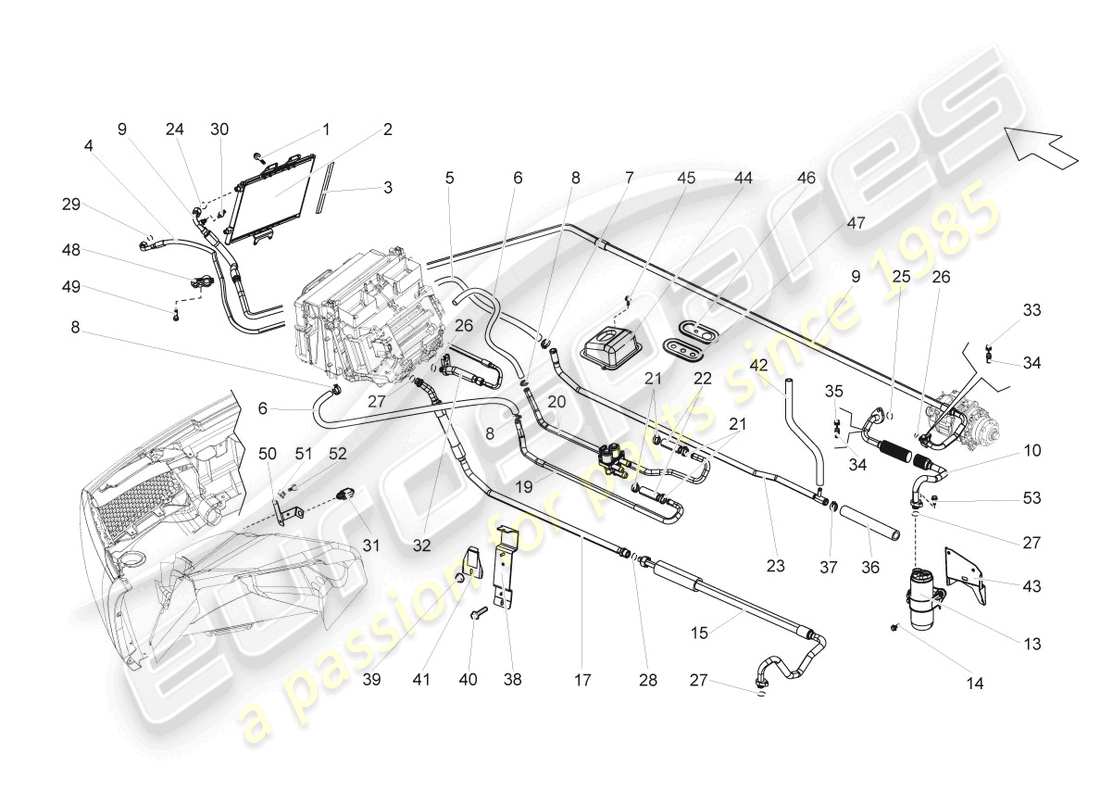

Lamborghini Gallardo Coupe (2008) A/C CONDENSER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: N10082911
HEXAGON HEAD BOLT (COMBI)
M6X16 (EUROPE spec vehicles)
from £0.52
from £0.52
HEXAGON HEAD BOLT M6X16-S1-N Genuine Lamborghini - New In stock
BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
# 002
MPN: 400260401B
A/C CONDENSER
(EUROPE spec vehicles)
from £402.90
from £402.90
CONDENSER Genuine Lamborghini - New (to order)
# 003
MPN: 400820261
SEAL
(EUROPE spec vehicles)
from £94.08
from £94.08
GASKET Genuine Lamborghini - New (to order)
# 004
MPN: 400260709
REFRIGERANT LINE
(EUROPE spec vehicles)
from £357.12
from £357.12
REFRIGERANT LINE Genuine Lamborghini - New (to order)
REFRIGERANT LINE Genuine Lamborghini - Used In stock
# 005
MPN: 400819371
COOLANT HOSE
(EUROPE spec vehicles)
from £48.71
from £48.71
HEATING HOSE Genuine Lamborghini - New (to order)
HEATING HOSE Genuine Lamborghini - Used In stock
# 006
MPN: 400819370
COOLANT HOSE
(EUROPE spec vehicles)
from £10.38
from £10.38
HEATING HOSE Genuine Lamborghini - New (to order)
# 007
MPN: N10166201
CLAMP
30,1X7X0,60 (EUROPE spec vehicles)
from £0.85
from £0.85
HOSE CLAMP LUG Genuine Lamborghini - New (to order)
# 008
MPN: N10255601
CLAMP
23,5X7X0,6 (EUROPE spec vehicles)
from £1.30
from £1.30
EAR HOSE CLAMP 23.5X7X0.6 Genuine Lamborghini - New In stock
# 009
MPN: 400260701B
REFRIGERANT LINE
(EUROPE spec vehicles)
from £493.63
from £493.63
COMPRESSOR/CONDENSER PIPE Genuine Lamborghini - New (to order)
# 010
MPN: 400260741A
REFRIGERANT PIPE
(EUROPE spec vehicles)
from £258.32
from £258.32
REFRIGERANT LINE Genuine Lamborghini - New In stock
REFRIGERANT LINE Genuine Lamborghini - Used In stock
# 013
MPN: 400820194
DRIER
USE REF.: 43 - WARNING UNTIL VIN 7LA04227 - INCLUDED IN REF.:- 14 (EUROPE spec vehicles)
from £121.91
from £121.91
ACCUMULATOR Genuine Lamborghini - New (to order)
# 014
MPN: N0903411
HEXAGON HEAD BOLT (COMBI)
M6X62Z3-2 (EUROPE spec vehicles)
from £2.13
from £2.13
SCREW Genuine Lamborghini - New (to order)
# 015
MPN: 400260740B
REFRIGERANT LINE
(EUROPE spec vehicles)
from £75.75
from £75.75
REFRIGERANT PIPE Genuine Lamborghini - New (to order)
REFRIGERANT PIPE Genuine Lamborghini - Used In stock
# 017
MPN: 400260740
REFRIGERANT LINE
(EUROPE spec vehicles)
from £119.02
from £119.02
HVAC GROUP/COMPRESS. PIPE Genuine Lamborghini - New (to order)
HVAC GROUP/COMPRESS. PIPE Genuine Lamborghini - Used In stock
# 019
MPN: 400819270
COOLANT PIPE
LEFT (EUROPE spec vehicles)
from £20.27
from £20.27
PIPE, COOLING SYST. Genuine Lamborghini - New (to order)
PIPE, COOLING SYST. Genuine Lamborghini - Used In stock
# 020
MPN: 400819269
COOLANT PIPE
RIGHT (EUROPE spec vehicles)
from £19.68
from £19.68
PIPE, COOLING SYST. Genuine Lamborghini - New (to order)
PIPE, COOLING SYST. Genuine Lamborghini - Used In stock
# 021
MPN: N0245107
CLAMP
16-25X9X0,5 (EUROPE spec vehicles)
from £3.19
from £3.19
This part replaces part number N10257901
HOSE CLIP Genuine Lamborghini - New (to order)
# 022
MPN: 400819372
COOLANT HOSE
(EUROPE spec vehicles)
from £4.79
from £4.79
HEATING HOSE Genuine Lamborghini - New (to order)
HEATING HOSE Genuine Lamborghini - Used In stock
# 023
MPN: 400820665
PRESSURE PIPE
(EUROPE spec vehicles)
from £32.21
from £32.21
VAKUUM LINE Genuine Lamborghini - New (to order)
VAKUUM LINE Genuine Lamborghini - Used In stock
# 024
MPN: 8A0260749AJ
O-RING
10,8X1,8 (EUROPE spec vehicles)
from £3.27
from £3.27
SEAL Genuine Lamborghini - New In stock
# 025
MPN: 8E0260749C
SEAL RING
23,8X2,4 (EUROPE spec vehicles)
from £3.26
from £3.26
SEAL RING Genuine Lamborghini - New In stock
SEAL RING Genuine Lamborghini - New (other) In stock
O-RING
# 026
MPN: 4E0260749A
SEAL RING
11X2,5 (EUROPE spec vehicles)
from £4.02
from £4.02
SEAL RING Genuine Lamborghini - New (to order)
# 027
MPN: 4E0260749C
SEAL RING
16,2X2,5 (EUROPE spec vehicles)
from £4.02
from £4.02
SEAL RING Genuine Lamborghini - New (to order)
# 028
MPN: 8A0260749AH
O-RING
14X1,8 (EUROPE spec vehicles)
from £0.54
from £0.54
SEAL Genuine Lamborghini - New In stock
# 029
MPN: 8A0260749AK
O-RING
7,6X1,8 BROWN (EUROPE spec vehicles)
from £1.41
from £1.41
O-RING Genuine Lamborghini - New In stock
# 030
MPN: 3R0959126
PRESSURE SENSOR
(EUROPE spec vehicles)
from £74.06
from £74.06
This part replaces part number 8E0959126B - and 1 more. Click to view details
PRESSURE SENSOR, AIR CONDITION NG Genuine Lamborghini - New (to order)
# 031
MPN: 8Z0820535
EXTERNAL TEMPERATURE SENSOR
(EUROPE spec vehicles)
from £23.13
from £23.13
THERMOPROBE Genuine Lamborghini - New (to order)
# 033
MPN: 400820853A
CAP CLOSURE
(EUROPE spec vehicles)
from £5.95
from £5.95
CAP Genuine Lamborghini - New (to order)
# 034
MPN: 400820855
VALVE INSERT
(EUROPE spec vehicles)
from £14.83
from £14.83
VALVE INSERT Genuine Lamborghini - New (to order)
# 035
MPN: 400820853
CAP CLOSURE
(EUROPE spec vehicles)
from £5.95
from £5.95
CAP Genuine Lamborghini - New (to order)
# 036
MPN: 400819268A
COOLANT HOSE
(EUROPE spec vehicles)
from £25.38
from £25.38
HEATER CIRCUIT Genuine Lamborghini - New (to order)
# 037
MPN: N0245203
HOSE CLAMP
20-32X9X0,5 (EUROPE spec vehicles)
from £0.93
from £0.93
HOSE CLIP Genuine Lamborghini - New In stock
HOSE CLAMP Genuine Porsche Part - New (to order)
# 038
MPN: 400121079A
BRACKET
(EUROPE spec vehicles)
from £7.69
from £7.69
BRACKET Genuine Lamborghini - New (to order)
BRACKET Genuine Lamborghini - Used In stock
# 039
MPN: N90367502
SELF-LOCKING COLLAR NUT
M6 (EUROPE spec vehicles)
from £0.56
from £0.56
HEXAGONAL NUT M6 Genuine Lamborghini - New (to order)
# 040
MPN: N90533002
HEXAGON HEAD BOLT (COMBI)
M6X20 (EUROPE spec vehicles)
from £1.12
from £1.12
Genuine Lamborghini (no longer available to order)
BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
# 041
MPN: 400121068
BRACKET
(EUROPE spec vehicles)
from £7.28
from £7.28
BRACKET ASSEMBLY Genuine Lamborghini - New (to order)
BRACKET ASSEMBLY Genuine Lamborghini - Used In stock
# 042
MPN: 408819377A
COOLANT PIPE
(EUROPE spec vehicles)
from £39.71
from £39.71
HOSE Genuine Lamborghini - New (to order)
# 043
MPN: 400260759F
BRACKET FOR DRIER
(EUROPE spec vehicles)
from £132.12
from £132.12
BRACKET Genuine Lamborghini - New In stock
BRACKET Genuine Lamborghini - Used In stock
# 044
MPN: 400820955A
COVER
(EUROPE spec vehicles)
from £47.59
from £47.59
COVER Genuine Lamborghini - New (to order)
# 045
MPN: WHT001190
ROUND HD. SCREW
M5X12 (EUROPE spec vehicles)
from £0.53
from £0.53
This part replaces part number 008700539
SCREW Genuine Lamborghini - New In stock
# 046
MPN: 400820099A
SEAL
(EUROPE spec vehicles)
from £22.21
from £22.21
GASKET Genuine Lamborghini - New (to order)
# 047
MPN: 400819028A
SEAL
(EUROPE spec vehicles)
from £11.80
from £11.80
GASKET Genuine Lamborghini - New (to order)
GASKET Genuine Lamborghini - Used In stock
# 048
MPN: 8E0260759AP
BRACKET FOR REFRIGERANT HOSE
(EUROPE spec vehicles)
from £2.94
from £2.94
SUPPORT Genuine Lamborghini - New In stock
# 049
MPN: N10470703
ROUND HD. SCREW
M6X50 (EUROPE spec vehicles)
from £1.13
from £1.13
This part replaces part number N10470701
HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
ROUND HD. SCREW Genuine Porsche Part - New In stock
# 050
MPN: 400820536A
BRACKET
(EUROPE spec vehicles)
from £7.46
from £7.46
BRACKET Genuine Lamborghini - New (to order)
# 051
MPN: N0454281
SPEED NUT
4,2X19,3X16 (EUROPE spec vehicles)
from £0.66
from £0.66
SPEED NUT Genuine Lamborghini - New In stock
# 052
MPN: N10405502
PANEL SCREW
4,8X16 (EUROPE spec vehicles)
from £0.53
from £0.53
PAN HEAD TAPPING Genuine Lamborghini - New In stock
# 053
MPN: N0903786
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)
M8X25 (EUROPE spec vehicles)
from £1.98
from £1.98
PAN HEAD BOLT WITH WASHER Genuine Lamborghini - New (to order)
