lamborghini gallardo coupe (2008) gear housing parts diagram

301.02.00 - GEAR HOUSING

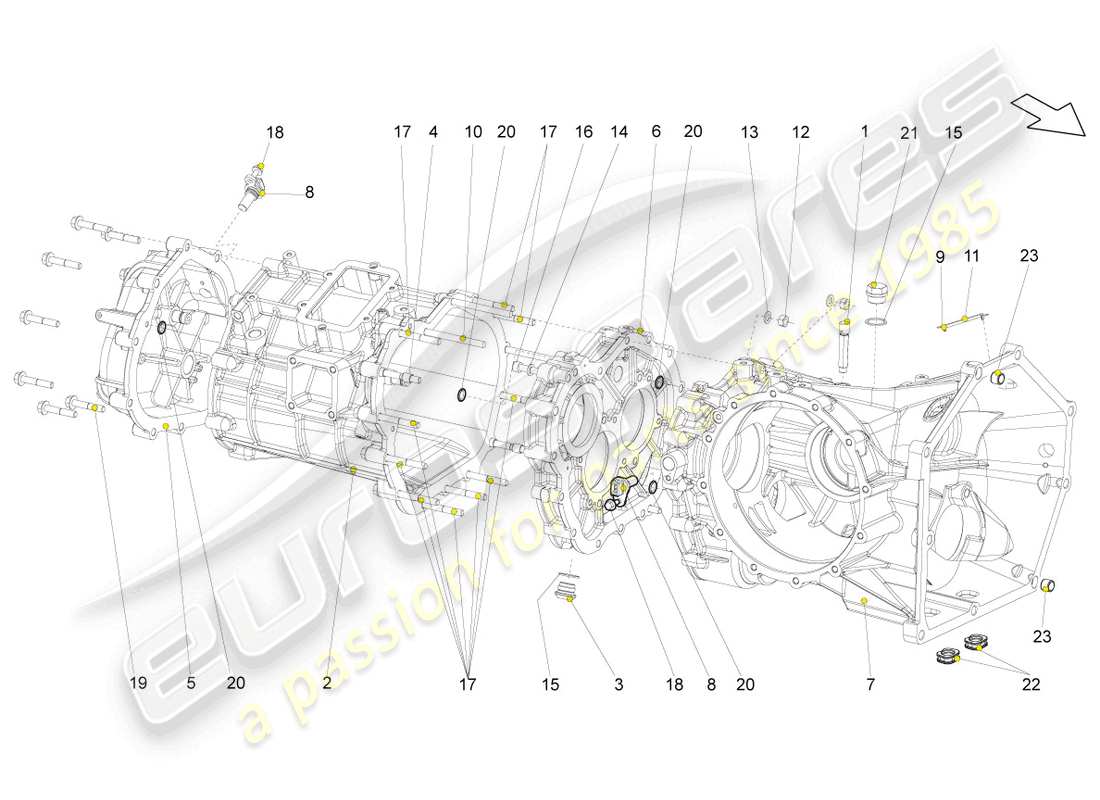

Lamborghini Gallardo Coupe (2008) GEAR HOUSING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 086301047B
CAP FOR VENTING THE GEARBOX
(EUROPE spec vehicles)
from £59.15
from £59.15
Ventilation Genuine Lamborghini - New (to order)
# 002
MPN: 086301051D
GEAR HOUSING
(EUROPE spec vehicles)
from £2,736.59
from £2,736.59
TRANSMISSION CASE Genuine Lamborghini - New (to order)
# 003
MPN: 086301141
SEALING PLUG
M22X1,5 (EUROPE spec vehicles)
from £16.61
from £16.61
MAGNETIC PLUG Genuine Lamborghini - New In stock
# 004
MPN: 086301153B
DOWEL SLEEVE
(EUROPE spec vehicles)
from £3.55
from £3.55
SLEEVE Genuine Lamborghini - New (to order)
# 005
MPN: 086301201F
TRANSMISSION HOUSING COVER
REAR (EUROPE spec vehicles)
from £1,275.35
from £1,275.35
COVER Genuine Lamborghini - New (to order)
# 006
MPN: 086301293B
SPACER PLATE
(EUROPE spec vehicles)
from £612.17
from £612.17
INTERMEDIATE PLATE Genuine Lamborghini - New (to order)
# 007
MPN: 086323209F
CLUTCH HOUSING
(EUROPE spec vehicles)
from £3,259.70
from £3,259.70
CLUTCH HOUSING Genuine Lamborghini - New (to order)
# 008
MPN: 086927321
GEARBOX SPEED SENDER
(EUROPE spec vehicles)
from £110.25
from £110.25
ELECTROMAGNETIC PROBE Genuine Lamborghini - New (to order)
# 010
MPN: N91031302
THREADED PIN
M8X110 (EUROPE spec vehicles)
from £10.12
from £10.12
TAP END STUD Genuine Lamborghini - New (to order)
# 012
MPN: N01100845
HEXAGON NUT
M8 (EUROPE spec vehicles)
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
HEX.NUT Genuine Lamborghini - New In stock
HEXAGON NUT (N 01100845) Genuine Porsche Part - New (to order)
# 013
MPN: N0115581
WASHER
8,4 (EUROPE spec vehicles)
from £0.53
from £0.53
Genuine Lamborghini (no longer available to order)
Washer - 8,4 (N 0115581) Genuine Porsche Part - New (to order)
# 014
MPN: N01155813
WASHER
8,4X15X1,6 (EUROPE spec vehicles)
from £0.53
from £0.53
This part replaces part number N0115581
WASHER Genuine Lamborghini - New In stock
# 015
MPN: N0138271
SEAL RING
22X27 (EUROPE spec vehicles)
from £1.88
from £1.88
SEALING WASHER Genuine Lamborghini - New In stock
seal ring (N 0138271) Genuine Porsche Part - New (to order)
# 016
MPN: N0147151
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
M8X45 (EUROPE spec vehicles)
from £1.24
from £1.24
CHEESE HEAD SCREW M8X45 Genuine Lamborghini - New (to order)
bolt, with hex. socket - hd. - M 8 X 45 (N 0147151) Genuine Porsche Part - New (to order)
# 017
MPN: N10120803
HEX COLLARED BOLT
M8X85 (EUROPE spec vehicles)
from £1.21
from £1.21
HEXAG.SCREW FLANGED M8X85 Genuine Lamborghini - New (to order)
# 017
MPN: N91071801
HEX COLLARED BOLT
M8X85 (EUROPE spec vehicles)
from £2.08
from £2.08
HEXAGON FLANGE AM8X85 Genuine Lamborghini - New (to order)
bolt, hex. hd. with shoulder (N 91071801) Genuine Porsche Part - New (to order)
# 018
MPN: N10338903
HEX COLLARED BOLT
M6X16 (EUROPE spec vehicles)
from £0.53
from £0.53
HEXAGON FLANGE Genuine Lamborghini - New (to order)
bolt, hex. hd. with shoulder (N 10338903) Genuine Porsche Part - New (to order)
# 019
MPN: N90173302
HEXAGON BOLT
M8X45 (EUROPE spec vehicles)
from £2.99
from £2.99
HEX.SCREW BM8X45 Genuine Lamborghini - New (to order)
# 020
MPN: WHT001492
O-RING
7,6X2,62 (EUROPE spec vehicles)
from £2.73
from £2.73
O-RING Genuine Lamborghini - New In stock
# 021
MPN: 086301114A
SEALING PLUG
M22X1,5 (EUROPE spec vehicles)
from £13.32
from £13.32
This part replaces part number 086301114
PLUG Genuine Lamborghini - New (to order)
# 023
MPN: 07L301155
BUSH
(EUROPE spec vehicles)
from £34.94
from £34.94
This part replaces part number 008851501
BUSH Genuine Lamborghini - New (to order)
# 024
MPN: N91028801
O-RING
9,92X2,62 (EUROPE spec vehicles)
from £2.04
from £2.04
O RING Genuine Lamborghini - New (to order)
