lamborghini gallardo coupe (2008) output shaft parts diagram

301.11.00 - OUTPUT SHAFT

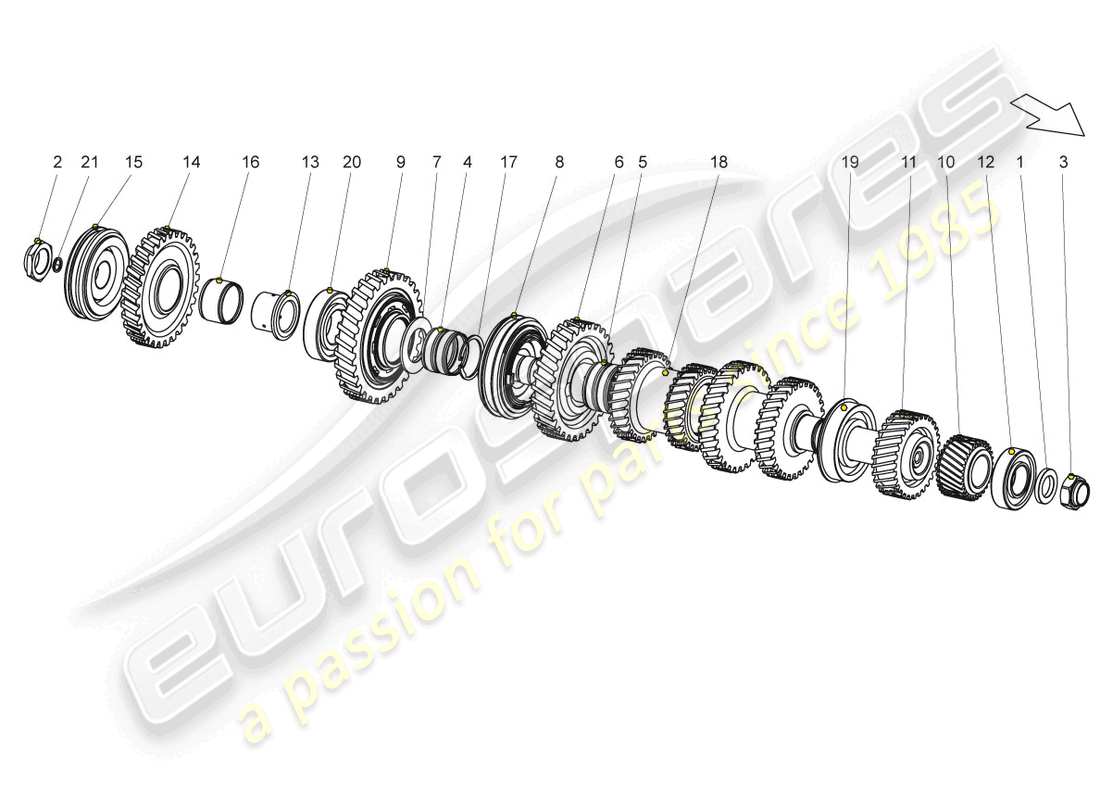

Lamborghini Gallardo Coupe (2008) OUTPUT SHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 086307293
THRUST WASHER
(EUROPE spec vehicles)
from £17.20
from £17.20
THRUST WASHER Genuine Lamborghini - New (to order)
# 002
MPN: 086307303
COLLAR NUT
M27X1,5 (EUROPE spec vehicles)
from £59.15
from £59.15
RINGNUT M27X15 Genuine Lamborghini - New (to order)
# 003
MPN: 086307304
COLLAR NUT
M22X1,5 (EUROPE spec vehicles)
from £59.15
from £59.15
RINGNUT M22X15 Genuine Lamborghini - New In stock
# 004
MPN: 086311132
NEEDLE BEARING -
40X45X30 (EUROPE spec vehicles)
from £36.32
from £36.32
RETAINER 1ST DRIVEN GEAR Genuine Lamborghini - New (to order)
# 005
MPN: 086311150
NEEDLE BEARING -
45X50X30 (EUROPE spec vehicles)
from £47.21
from £47.21
RETAINER 4TH DRIVE GEAR Genuine Lamborghini - New (to order)
# 006
MPN: 086311163A
GEAR
2.GEAR (EUROPE spec vehicles)
from £287.07
from £287.07
INDEXING GEAR,2ND Genuine Lamborghini - New (to order)
# 007
MPN: 086311231
SPACER SLEEVE
(EUROPE spec vehicles)
from £54.22
from £54.22
1ST GEAR SHOULDER SHIMRING Genuine Lamborghini - New (to order)
# 008
MPN: 086311243C
SYNCHRONIZING HUB
E-GEAR-1./2.GEAR (EUROPE spec vehicles)
from £1,361.82
from £1,361.82
This part replaces part number 086311243A
SYNCHRONIZER HUB Genuine Lamborghini - New (to order)
# 009
MPN: 086311257A
CHANGE GEAR
1.GEAR (EUROPE spec vehicles)
from £658.00
from £658.00
INDEXING GEAR,1ST Genuine Lamborghini - New (to order)
# 010
MPN: 086311348E
GEAR
(EUROPE spec vehicles)
from £338.94
from £338.94
GEAR Genuine Lamborghini - New (to order)
# 011
MPN: 086311352C
GEAR
(EUROPE spec vehicles)
from £349.32
from £349.32
GEAR Genuine Lamborghini - New (to order)
# 012
MPN: 086311372
ROLLER BEARING
30X62X16 (EUROPE spec vehicles)
from £146.57
from £146.57
STRAIGHT ROLLER BEARING RACE DRIVEN Genuine Lamborghini - New (to order)
# 013
MPN: 086311423
INNER RING
REVERSE GEAR (EUROPE spec vehicles)
from £153.04
from £153.04
REVERSE DRIVEN GEARB BUSHING Genuine Lamborghini - New (to order)
# 014
MPN: 086311532G
GEAR
ORDER ALSO RIF.15 COD. 086311762E-REVERSE GEAR (EUROPE spec vehicles)
from £678.75
from £678.75
INTERMEDIATE WHEEL Genuine Lamborghini - New (to order)
# 015
MPN: 086311762E
SYNCHRONIZING HUB
ORDER ALSO 086311532G RIF.14 (EUROPE spec vehicles)
from £2,248.08
from £2,248.08
SYNCHRONIZER HUB Genuine Lamborghini - New (to order)
# 016
MPN: 086311770
NEEDLE BEARING -
38X43X27 (EUROPE spec vehicles)
from £52.66
from £52.66
RETAINER REVERSE DRIVEN GEAR Genuine Lamborghini - New (to order)
# 017
MPN: 086311187A
SECURING RING
40X1,75 (EUROPE spec vehicles)
from £24.60
from £24.60
SECURITY RING FOR SHAFTS Genuine Lamborghini - New (to order)
# 018
MPN: 086311195K
OUTPUT SHAFT
(EUROPE spec vehicles)
from £3,467.23
from £3,467.23
OUTPUT SHAFT Genuine Lamborghini - New (to order)
# 019
MPN: 086311235A
BALL BEARING
35X80X21 (EUROPE spec vehicles)
from £65.73
from £65.73
RIGID BEARING DIFF.SIDE Genuine Lamborghini - New (to order)
# 020
MPN: 086311372B
ROLLER BEARING
35X72X17 (EUROPE spec vehicles)
from £155.64
from £155.64
STRAIGHT ROLLER BEARING RACE MAIN SH Genuine Lamborghini - New (to order)
# 021
MPN: WHT002219
O-RING
1,78X11,11 (EUROPE spec vehicles)
from £2.95
from £2.95
This part replaces part number N91014801
O-RING 11.11X1.78-N Genuine Lamborghini - New (to order)
