lamborghini gallardo coupe (2008) accelerator pedal parts diagram

721.04.00 - Accelerator Pedal

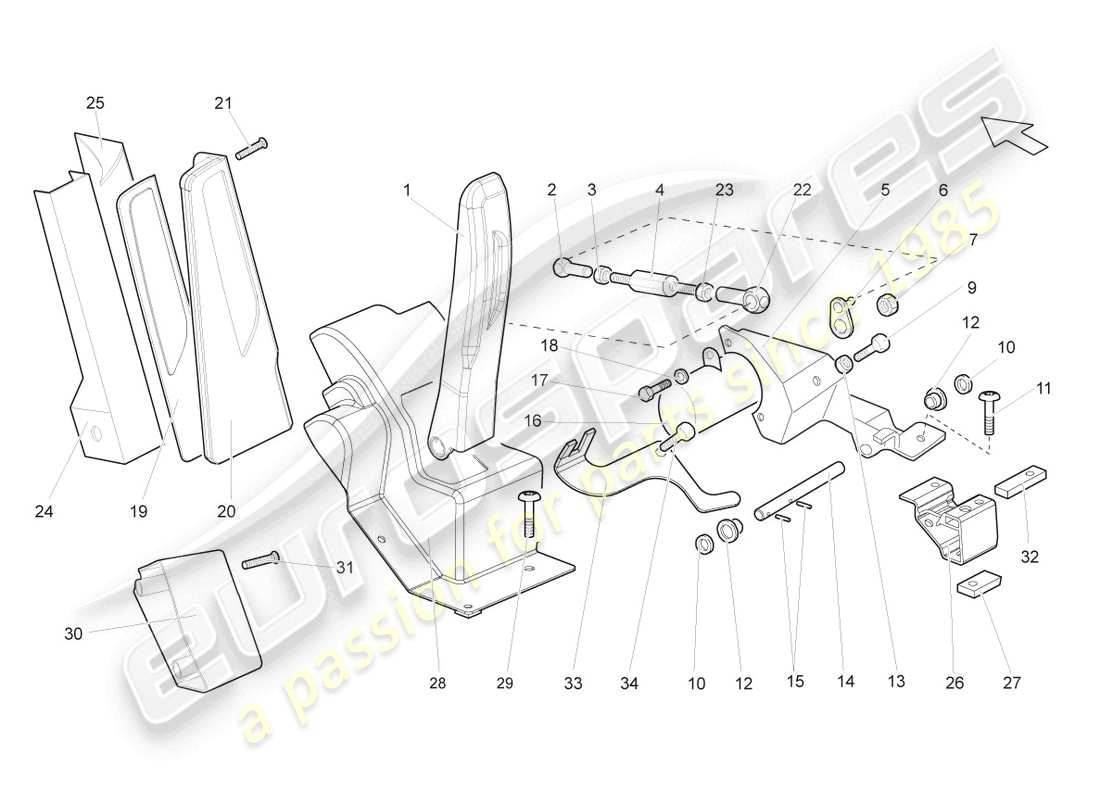

Lamborghini Gallardo Coupe (2008) ACCELERATOR PEDAL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 400721507A
Accelerator Pedal
(EUROPE spec vehicles)
from £806.07
from £806.07
ACELERATOR PEDAL Genuine Lamborghini - New (to order)
ACELERATOR PEDAL Genuine Lamborghini - Used In stock
# 002
MPN: 400721214E
BALL HEAD
LEFT HAND THREAD (EUROPE spec vehicles)
from £32.39
from £32.39
BALL JOINT Genuine Lamborghini - New (to order)
# 003
MPN: N10690001
HEXAGON NUT
LEFT HAND THREAD-M5 (EUROPE spec vehicles)
from £318.19
from £318.19
HEX.NUT Genuine Lamborghini - New (to order)
# 004
MPN: 400721743A
CONNECTING ROD
(EUROPE spec vehicles)
from £13.32
from £13.32
This part replaces part number 400721743 - and 2 more. Click to view details
CONNECTING ROD Genuine Lamborghini - New (to order)
CONNECTING ROD Genuine Lamborghini - Used In stock
# 005
MPN: 400721651A
BEARING BRACKET FOR ACCEL. PED
(EUROPE spec vehicles)
from £95.11
from £95.11
MOUNTING,THROTTLE Genuine Lamborghini - New (to order)
# 006
MPN: 400721728C
LEVER
(EUROPE spec vehicles)
from £128.83
from £128.83
This part replaces part number 400721728
LEVER,PEDAL VALUE TRANSMITTER Genuine Lamborghini - New (to order)
# 007
MPN: N01508213
HEXAGON COLLAR NUT
M6 (EUROPE spec vehicles)
from £0.47
from £0.47
This part replaces part number 008200614 which we have in stock - and 2 more. Click to view details
HEXAGON FLANGE NUTM6 Genuine Lamborghini - New In stock
shouldered hex. nut (N 01508213) Genuine Porsche Part - New In stock
# 009
MPN: N01024718
HEXAGON BOLT
M8X35 (EUROPE spec vehicles)
from £1.85
from £1.85
SCREW Genuine Lamborghini - New (to order)
screw, hex. hd. - M 8X35 (N 01024718) Genuine Porsche Part - New (to order)
# 010
MPN: WHT000697
WASHER
13X22X0,3 (EUROPE spec vehicles)
from £0.67
from £0.67
WASHER Genuine Lamborghini - New In stock
# 011
MPN: N91000203
OVAL HEXAGON SOCKET HEAD BOLT
M8X25-H (EUROPE spec vehicles)
from £3.28
from £3.28
HEXALOBULAR SOCKETM8X25 Genuine Lamborghini - New (to order)
# 011
MPN: N91084201
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
M8X25 (EUROPE spec vehicles)
from £1.84
from £1.84
12-POINT SOCKET Genuine Lamborghini - New In stock
bolt, with polygon socket hd. (N 91084201) Genuine Porsche Part - New (to order)
# 012
MPN: 400721543
BUSH
(EUROPE spec vehicles)
from £16.65
from £16.65
BUSCHING 12X14 Genuine Lamborghini - New (to order)
# 013
MPN: N01100845
HEXAGON NUT
M8 (EUROPE spec vehicles)
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
HEX.NUT Genuine Lamborghini - New In stock
HEXAGON NUT (N 01100845) Genuine Porsche Part - New (to order)
# 014
MPN: 400721157
BEARING PIN
(EUROPE spec vehicles)
from £19.89
from £19.89
ACCELERATOR PEDAL PIN Genuine Lamborghini - New (to order)
# 015
MPN: N10206801
SPRING PIN
2,5X16 (EUROPE spec vehicles)
from £0.53
from £0.53
SPIRAL PIN Genuine Lamborghini - New (to order)
# 016
MPN: 400907475A
ACCELERATOR PEDAL SENDER
(EUROPE spec vehicles)
from £615.84
from £615.84
This part replaces part number 0042010273 which we have in stock - and 2 more. Click to view details
PEDAL VALUE Genuine Lamborghini - New (to order)
PEDAL VALUE Genuine Lamborghini - Used In stock
# 017
MPN: N10546402
HEXAGON SOCKET HEAD BOLT
M6X16 (EUROPE spec vehicles)
from £0.47
from £0.47
This part replaces part number 008700614
HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
hexagonal socket head (N 10546402) Genuine Porsche Part - New (to order)
# 018
MPN: 008400628
WASHER
6X12X1 (EUROPE spec vehicles)
from £0.53
from £0.53
ROND.D.6X12X1 Genuine Lamborghini - New In stock
# 019
MPN: 401864431
COVER FOR FOOTREST
LHD (EUROPE spec vehicles)
from £7.28
from £7.28
COVER,FOOT SUPPORT Genuine Lamborghini - New (to order)
COVER,FOOT SUPPORT Genuine Lamborghini - Used In stock
# 020
MPN: 401864419B
FOOT REST
LHD (EUROPE spec vehicles)
from £73.00
from £73.00
FOOT SUPPORT Genuine Lamborghini - New (to order)
FOOT SUPPORT Genuine Lamborghini - Used In stock
# 021
MPN: N10648801
HEXAGON SOCKET FLAT HEAD BOLT
M6X80 LHD (EUROPE spec vehicles)
from £2.25
from £2.25
HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
# 022
MPN: 400721214D
BALL HEAD
(EUROPE spec vehicles)
from £26.30
from £26.30
BALL JOINT Genuine Lamborghini - New (to order)
# 023
MPN: N01100520
HEXAGON NUT
M5 (EUROPE spec vehicles)
from £0.65
from £0.65
HEX.NUT Genuine Lamborghini - New (to order)
# 024
MPN: 401864523A
BRACKET FOR FOOTREST
LHD (EUROPE spec vehicles)
from £18.24
from £18.24
BRACKET Genuine Lamborghini - New (to order)
BRACKET Genuine Lamborghini - Used In stock
# 025
MPN: 401864431B
COVER FOR FOOTREST
LHD (EUROPE spec vehicles)
from £28.35
from £28.35
COVER,FOOT SUPPORT Genuine Lamborghini - New In stock
COVER,FOOT SUPPORT Genuine Lamborghini - Used In stock
# 026
MPN: 400803427A
MOUNTING BLOCK
(EUROPE spec vehicles)
from £23.46
from £23.46
MOUNTING BRACKET Genuine Lamborghini - New (to order)
MOUNTING BRACKET Genuine Lamborghini - Used In stock
# 027
MPN: 401803016A
DISTANCE PLATE
LHD (EUROPE spec vehicles)
from £49.29
from £49.29
PLATE Genuine Lamborghini - New (to order)
# 028
MPN: 401721585A
COVER
LHD (EUROPE spec vehicles)
from £52.92
from £52.92
COVER,ACCEL.PEDAL Genuine Lamborghini - New In stock
# 029
MPN: N91000203
OVAL HEXAGON SOCKET HEAD BOLT
M8X25-H LHD (EUROPE spec vehicles)
from £3.28
from £3.28
HEXALOBULAR SOCKETM8X25 Genuine Lamborghini - New (to order)
# 032
MPN: 400723325B
ADJUSTMENT PART
(EUROPE spec vehicles)
from £20.10
from £20.10
ADJUSTMENT PART Genuine Lamborghini - New (to order)
# 033
MPN: 402971890
BRACKET
(EUROPE spec vehicles)
from £23.26
from £23.26
PLUG BRACKET Genuine Lamborghini - New (to order)
# 034
MPN: N90847903
HEXAGON HEAD BOLT (COMBI)
M6X15 (EUROPE spec vehicles)
from £0.61
from £0.61
This part replaces part number N90847901
HEXAGON FLANGE M6 X 15 Genuine Lamborghini - New In stock
BOLT HEX HD (COMBI) (N 90847903) Genuine Porsche Part - New (to order)
