lamborghini gallardo lp570-4s perform center frame elements parts diagram

080 - Center Frame Elements

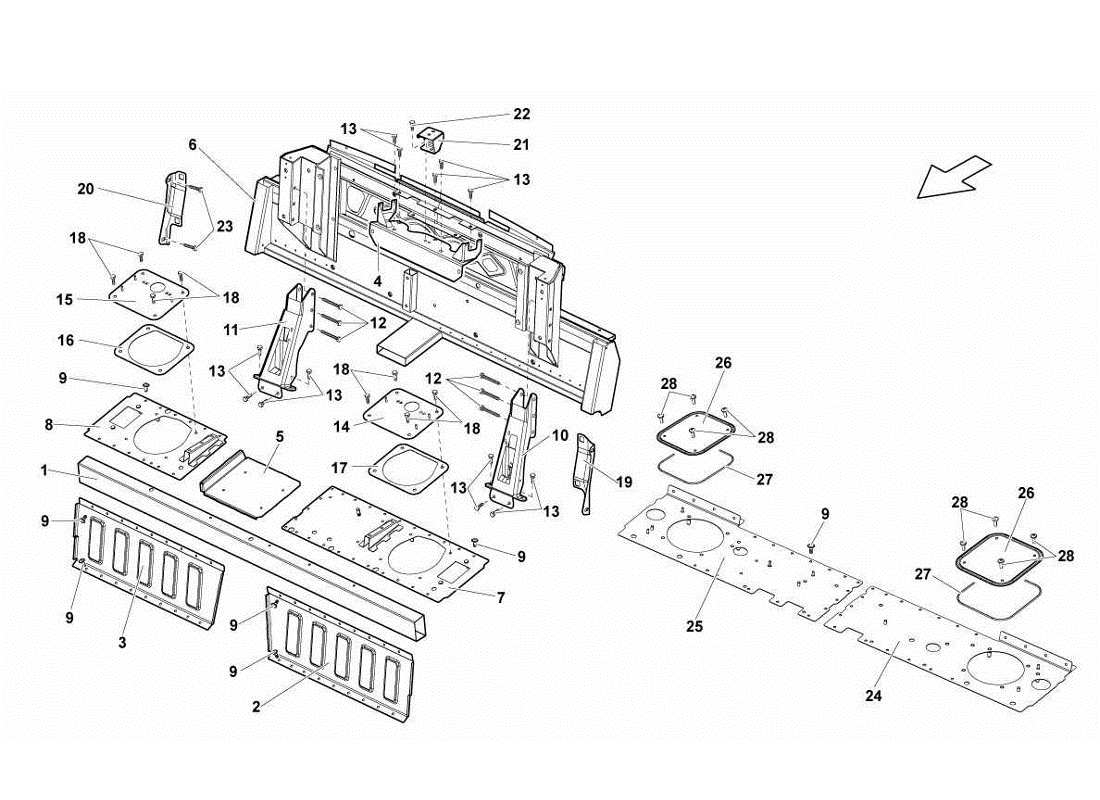

Lamborghini Gallardo LP570-4s Perform Center Frame Elements Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 407803221A
                                                          CROSS MEMBER
                                                          from £546.45
                                                          from £546.45
                                                          # 002
                                                          MPN: 408801275A
                                                          BOARD
                                                          from £237.78
                                                          from £237.78
                                                          # 003
                                                          MPN: 408801276A
                                                          BOARD
                                                          from £237.78
                                                          from £237.78
                                                          # 004
                                                          MPN: 407803145
                                                          BRACKET
                                                          from £36.48
                                                          from £36.48
                                                          # 005
                                                          -
                                                          INSERT (VALID UP TO MODEL YEAR 08)
                                                          # 006
                                                          MPN: 407813467A
                                                          REAR PANEL
                                                          from £2,598.25
                                                          from £2,598.25
                                                          # 007
                                                          -
                                                          BOARD (VALID UP TO MODEL YEAR 08)
                                                          # 008
                                                          -
                                                          BOARD (VALID UP TO MODEL YEAR 08)
                                                          # 009
                                                          MPN: N90919302
                                                          SCREW M5X18
                                                          from £0.47
                                                          from £0.47
                                                          # 010
                                                          MPN: 407803227A
                                                          LH BRACKET
                                                          from £108.66
                                                          from £108.66
                                                          # 011
                                                          MPN: 407803228A
                                                          RH BRACKET
                                                          from £108.66
                                                          from £108.66
                                                          # 012
                                                          MPN: 407813975
                                                          SCREW M8X75
                                                          from £0.52
                                                          from £0.52
                                                          # 013
                                                          MPN: N91000203
                                                          SCREW M8X25
                                                          from £3.28
                                                          from £3.28
                                                          # 014
                                                          -
                                                          COVER, LH (VALID UP TO MODEL YEAR 08)
                                                          # 015
                                                          -
                                                          COVER, RH (VALID UP TO MODEL YEAR 08)
                                                          # 016
                                                          -
                                                          GASKET (VALID UP TO MODEL YEAR 08)
                                                          # 017
                                                          -
                                                          GASKET (VALID UP TO MODEL YEAR 08)
                                                          # 018
                                                          -
                                                          SCREW M6X15 (VALID UP TO MODEL YEAR 08)
                                                          # 019
                                                          MPN: 407803581
                                                          FIXING CORNER
                                                          from £58.73
                                                          from £58.73
                                                          # 020
                                                          MPN: 407803582
                                                          FIXING CORNER
                                                          from £58.73
                                                          from £58.73
                                                          # 021
                                                          MPN: 407827876
                                                          SUPPORT
                                                          from £9.87
                                                          from £9.87
                                                          # 022
                                                          MPN: N90693702
                                                          SCREW M5X20
                                                          from £0.53
                                                          from £0.53
                                                          # 023
                                                          MPN: N10347804
                                                          SCREW M8X20
                                                          from £1.07
                                                          from £1.07
                                                          # 024
                                                          MPN: 407813503A
                                                          BOARD
                                                          from £255.07
                                                          from £255.07
                                                          # 025
                                                          MPN: 407813504A
                                                          BOARD
                                                          from £266.31
                                                          from £266.31
                                                          # 026
                                                          MPN: 420803961
                                                          COVER
                                                          from £4.16
                                                          from £4.16
                                                          # 027
                                                          MPN: 420803963
                                                          GASKET
                                                          from £3.77
                                                          from £3.77
                                                          # 028
                                                          MPN: N90780901
                                                          SCREW M6X16
                                                          from £0.51
                                                          from £0.51
