115 - dashboard instruments

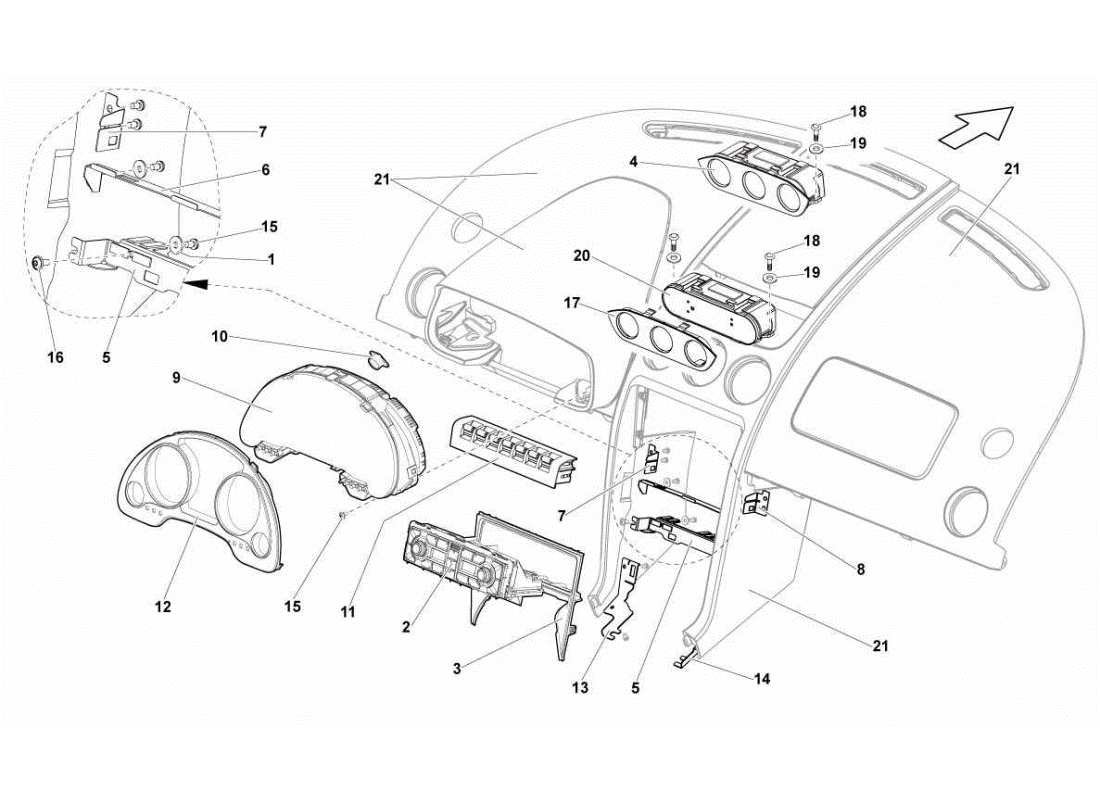

Lamborghini Gallardo STS II SC DASHBOARD INSTRUMENTS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: WHT000778
WASHER
from £0.53
from £0.53
# 002
MPN: 400820043D
CLIMATE CONTROL PANEL (WITHOUT HEATED SEATS)
from £1,736.59
from £1,736.59
# 003
MPN: 400820319
ORNAMENT (STANDARD)
from £169.39
from £169.39
# 003
MPN: 400820319A
ORNAMENT (CARBON INTERIOR)
from £1,338.28
from £1,338.28
# 004
MPN: 403857251A
CENTER INSTRUMENTS ASSEMBLY (STANDARD)
from £362.68
from £362.68
# 005
MPN: 400861393
BRACKET
from £28.24
from £28.24
# 006
MPN: 400861400
BRACKET
from £8.05
from £8.05
# 007
MPN: 400862409B
BRACKET
from £11.89
from £11.89
# 008
MPN: 400862410B
BRACKET
from £11.89
from £11.89
# 009
MPN: 400920900T
INSTRUMENT PANEL (KM/H - COMBINED ENGINE SPEED INDICATOR -
from £4,166.05
from £4,166.05
# 010
MPN: 400927521
REVERCE SWITCH (FOR E-GEAR)
from £133.05
from £133.05
# 011
MPN: 401941567G
7 SWITCHES
from £800.69
from £800.69
# 011
MPN: 401941567J
7 Switches (dark Chrome Package)
LHD
from £800.69
from £800.69
# 012
MPN: 403857053
ORNAMENT (INTERIORIO DEEP BLACK MICROFIBER)
from £116.90
from £116.90
# 012
MPN: 403857053B
ORNAMENT (CARBON INTERIOR)
from £3,040.51
from £3,040.51
# 013
MPN: 400863253C
SUPPORT
from £17.26
from £17.26
# 014
MPN: 400863254C
SUPPORT
from £17.26
from £17.26
# 015
MPN: N10406602
SCREW M5X8
from £0.47
from £0.47
# 016
MPN: N90944603
SCREW M5X12.0
from £0.75
from £0.75
# 017
MPN: 400863321B
TRIM (CARBON INTERIOR)
from £1,834.38
from £1,834.38
# 018
MPN: N10621601
SCREW M4X12
from £1.59
from £1.59
# 019
MPN: 400868563B
WASHER
from £5.95
from £5.95
# 020
MPN: 403857259A
CENTER INSTRUMENTS ASSEMBLY (CARBON INTERIOR)
from £348.19
from £348.19
# 021
-
COVERING (SEE TABLE 857.02.00)
