lamborghini gallardo sts ii sc insulations and soundproofing parts diagram

123 - Insulations And Soundproofing

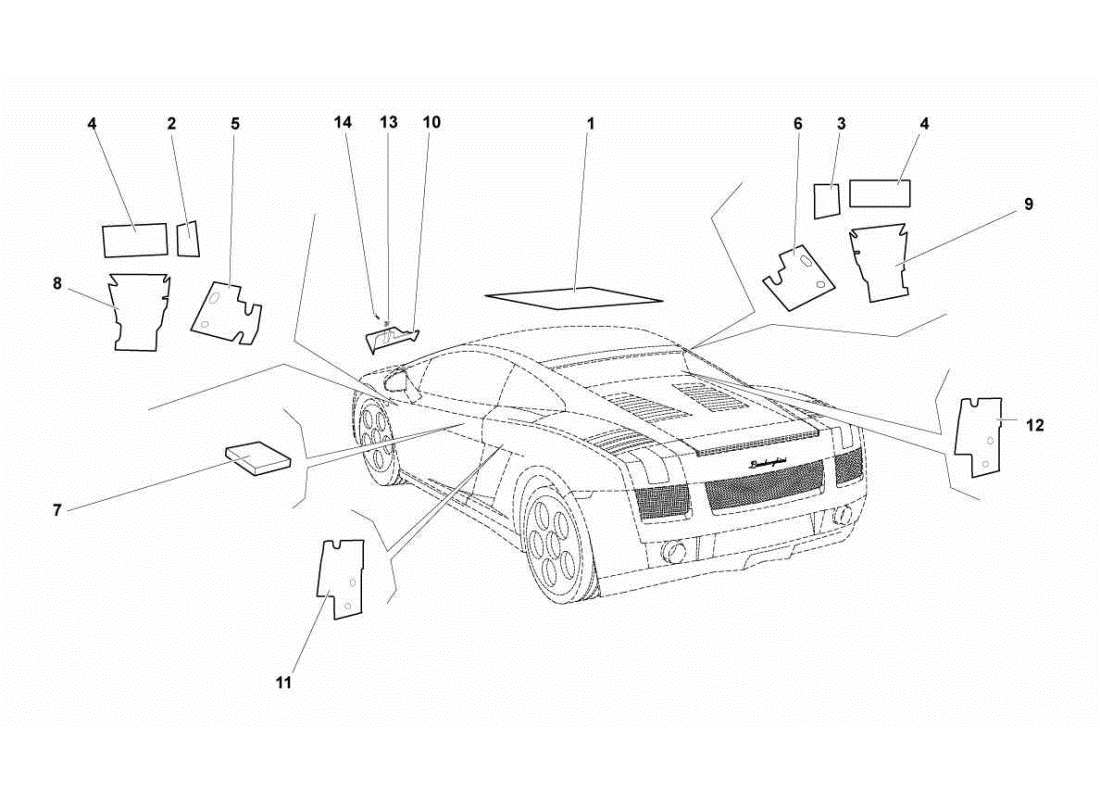

Lamborghini Gallardo STS II SC INSULATIONS AND SOUNDPROOFING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 400863248A
                              ROOF INSULATION
                              from £50.07
                              from £50.07
                              # 002
                              MPN: 400863813A
                              LH FRONT WHEELARCH INSULATION
                              from £4.12
                              from £4.12
                              # 003
                              MPN: 400863814A
                              RH FRONT WHEELARCH INSULATION
                              from £4.12
                              from £4.12
                              # 004
                              MPN: 400863826C
                              UPPER WHEELARCH INSULATION
                              from £7.45
                              from £7.45
                              # 005
                              MPN: 400863923B
                              DASHBOARD LH LOWER AREA INSULATION
                              from £9.60
                              from £9.60
                              # 006
                              MPN: 400863924B
                              DASHBOARD RH LOWER AREA INSULATION
                              from £9.60
                              from £9.60
                              # 007
                              MPN: 400863949
                              TUNNEL INSULATION (E-GEAR)
                              from £3.20
                              from £3.20
                              # 008
                              MPN: 400864807A
                              LH LOWER WHEELARCH INSULATION
                              from £7.26
                              from £7.26
                              # 009
                              MPN: 400864808A
                              RH LOWER WHEELARCH INSULATION
                              from £7.26
                              from £7.26
                              # 010
                              MPN: 400915430C
                              BATTERY COVER
                              from £80.16
                              from £80.16
                              # 011
                              MPN: 408863895A
                              LH B-PILLAR INSULATION
                              from £10.08
                              from £10.08
                              # 012
                              MPN: 408863896A
                              RH B-PILLAR INSULATION
                              from £10.03
                              from £10.03
                              # 013
                              MPN: WHT000916A
                              CLIP
                              from £9.30
                              from £9.30
                              # 014
                              MPN: N90986803
                              SCREW ST4.2X13
                              from £0.63
                              from £0.63
                              This part replaces part number N90986801
