lamborghini gallardo spyder (2007) camshaft cylinders 6-10 parts diagram

109.02.00 - CAMSHAFT CYLINDERS 6-10

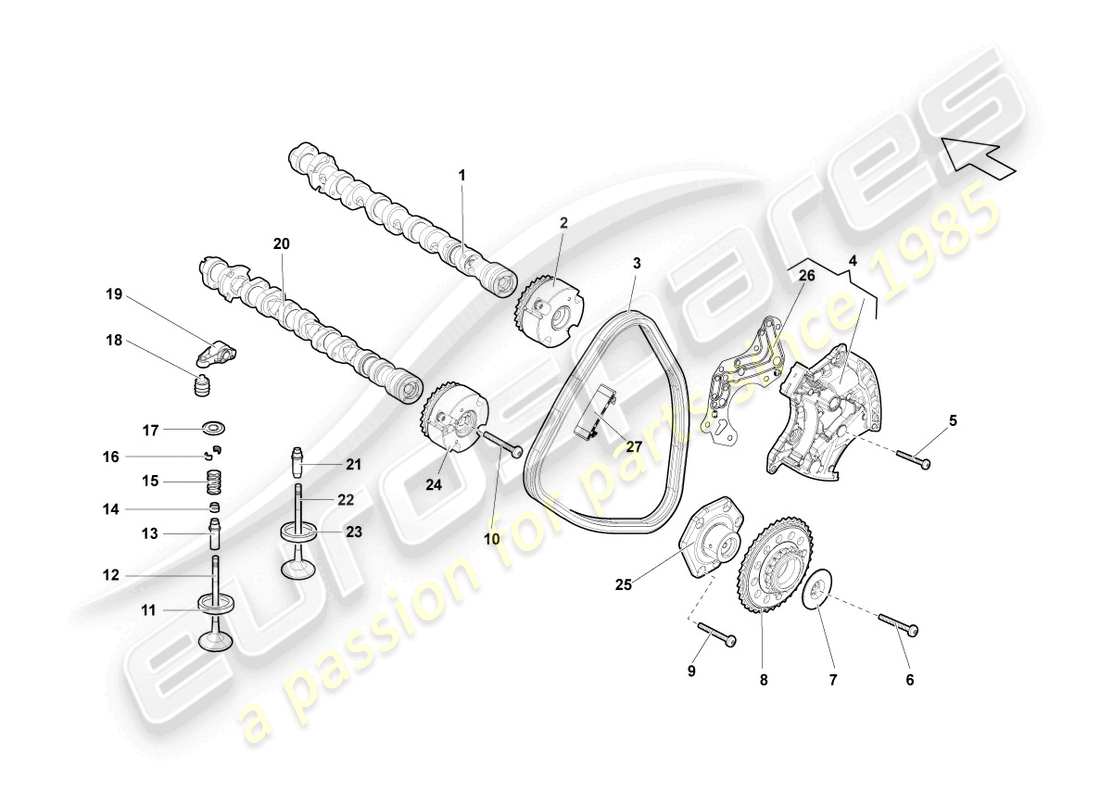

Lamborghini Gallardo Spyder (2007) CAMSHAFT CYLINDERS 6-10 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 07L109101S
                        camshaft
                        INLET
                        from £333.76
                        from £333.76
                        camshaft Genuine Lamborghini - New (to order)
                        # 002
                        MPN: 07L109083A
                        CAMSHAFT ADJUSTER UNIT
                        INLET
                        from £195.84
                        from £195.84
                        CAMSHAFT SPROCKET INLET Genuine Lamborghini - New (to order)
                        # 003
                        MPN: 079109229L
                        TIMING CHAIN
                        from £69.01
                        from £69.01
                        TIMING CHAIN Genuine Lamborghini - New In stock
                        # 004
                        MPN: 06E109217E
                        CHAIN TENSIONER
                        from £1,789.81
                        from £1,789.81
                        TIMING TENSIONER Genuine Lamborghini - New (to order)
                        # 005
                        MPN: N10124303
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X20
                        Supersession
                        Supersession
                        Genuine Lamborghini (no longer available to order)
                        # 005
                        MPN: N10124308
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X20
                        from £1.20
                        from £1.20
                        This part replaces part number N10124303
                        HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
                        # 006
                        MPN: N10335205
                        SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)
                        M6X12
                        from £0.75
                        from £0.75
                        PAN HEAD SCREW Genuine Lamborghini - New In stock
                        # 007
                        MPN: 079109435G
                        THRUST WASHER
                        UPPER CENTRE
                        from £11.72
                        from £11.72
                        WASHER PAD Genuine Lamborghini - New (to order)
                        # 008
                        MPN: 079109569K
                        CHAIN SPROCKET
                        Z=19
                        from £201.90
                        from £201.90
                        SPROCKET Genuine Lamborghini - New (to order)
                        # 009
                        MPN: N10505402
                        COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD
                        M6X20
                        from £0.53
                        from £0.53
                        SCREW Genuine Lamborghini - New In stock
                        # 010
                        MPN: N91042802
                        FLAT HEAD MULTI-POINT SOCKET BOLT
                        M12X1,25X60X30
                        from £3.59
                        from £3.59
                        12-POINT SOCKET FLANGE BOLT Genuine Lamborghini - New In stock
                        Flat head multi-point (N 91042802) Genuine Porsche Part - New (to order)
                        # 011
                        MPN: 06D103441L
                        VALVE GUIDE
                        OUTLET
                        from £5.23
                        from £5.23
                        VALVE SEAT INSERT Genuine Lamborghini - New (to order)
                        # 012
                        MPN: 06D109611H
                        EXHAUST VALVE
                        from £33.73
                        from £33.73
                        EXHAUST VALVE Genuine Lamborghini - New In stock
                        # 013
                        MPN: 06D103415F
                        VALVE GUIDE
                        from £53.44
                        from £53.44
                        VALVE GUIDE Genuine Lamborghini - New (to order)
                        # 014
                        MPN: 057109675
                        VALVE STEM SEAL
                        from £11.46
                        from £11.46
                        SEAL FOR VALVE Genuine Lamborghini - New In stock
                        # 015
                        MPN: 06E109623
                        VALVE SPRING
                        from £28.97
                        from £28.97
                        SPRING VALVE Genuine Lamborghini - New In stock
                        # 016
                        MPN: 036109651
                        COTTER, SPLIT
                        from £1.60
                        from £1.60
                        VALVE HALF CONES Genuine Lamborghini - New In stock
                        KEGELSTUECK (036109651) Genuine Porsche Part - New (to order)
                        # 017
                        MPN: 06E109641A
                        SPRING DISC
                        from £9.86
                        from £9.86
                        VALVE SPRING PLATE Genuine Lamborghini - New In stock
                        # 018
                        MPN: 057109521
                        EQUALIZING ELEMENT, HYDRAULIC
                        from £15.61
                        from £15.61
                        SUPPORT ELEMENT Genuine Lamborghini - New (to order)
                        # 019
                        MPN: 06D109417F
                        ROLLER ROCKER ARM
                        from £55.00
                        from £55.00
                        ROCKER ARM Genuine Lamborghini - New In stock
                        # 020
                        MPN: 07L109102Q
                        camshaft
                        OUTLET
                        from £284.48
                        from £284.48
                        camshaft Genuine Lamborghini - New (to order)
                        # 021
                        MPN: 07L103415
                        VALVE GUIDE
                        from £53.44
                        from £53.44
                        VALVE GUIDE Genuine Lamborghini - New (to order)
                        # 022
                        MPN: 06D109601H
                        INLET VALVE
                        WARRANTY
                        from £46.01
                        from £46.01
                        INTAKE VALVE Genuine Lamborghini - New (to order)
                        # 022
                        MPN: 079109601B
                        INLET VALVE
                        from £32.86
                        from £32.86
                        INTAKE VALVE Genuine Lamborghini - New (to order)
                        # 023
                        MPN: 06D103431L
                        VALVE GUIDE
                        INLET
                        from £4.06
                        from £4.06
                        VALVE SEAT INSERT Genuine Lamborghini - New (to order)
                        # 024
                        MPN: 07L109084C
                        CAMSHAFT ADJUSTER UNIT
                        OUTLET
                        from £216.17
                        from £216.17
                        This part replaces part number 06E109084D - and 1 more. Click to view details
                        CAMSHAFT SPROCKET EXHAUST Genuine Lamborghini - New In stock
                        # 025
                        MPN: 079109511G
                        BEARING PIN
                        LEFT
                        from £313.00
                        from £313.00
                        STUD SUPPORT D.34 Genuine Lamborghini - New (to order)
                        # 026
                        -
                        SEAL
                        # 027
                        -
                        COVERING
