lamborghini gallardo spyder (2008) fuel filler flap parts diagram

201.07.00 - FUEL FILLER FLAP

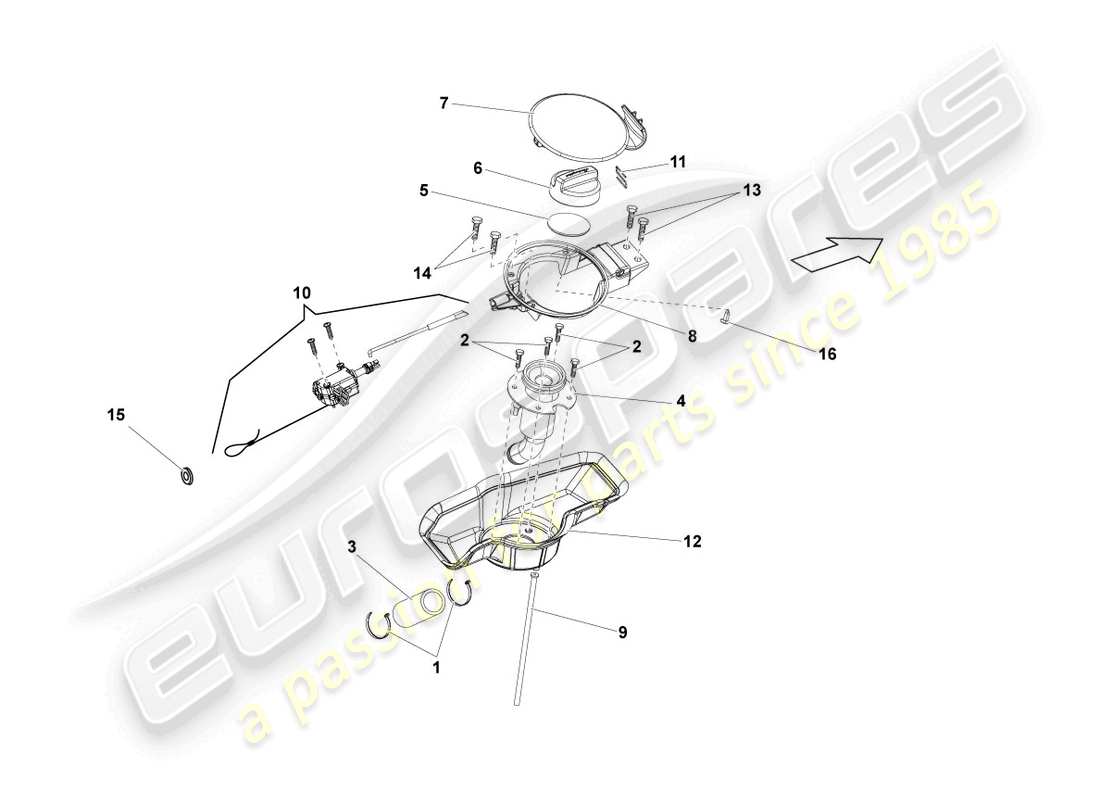

Lamborghini Gallardo Spyder (2008) FUEL FILLER FLAP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: N91104001
                    SPRING BAND CLAMP
                    25-40X9
                    from £4.18
                    from £4.18
                    HOSE CLIP Genuine Lamborghini - New (to order)
                    # 002
                    MPN: WHT001190
                    ROUND HD. SCREW
                    M5X12
                    from £0.53
                    from £0.53
                    This part replaces part number 008700539
                    SCREW Genuine Lamborghini - New In stock
                    # 003
                    MPN: 400201130E
                    FUEL HOSE
                    from £12.18
                    from £12.18
                    PLUG NECK Genuine Lamborghini - New (to order)
                    PLUG NECK Genuine Lamborghini - Used In stock
                    # 004
                    MPN: 407201137B
                    FUEL FILLER NECK
                    from £127.13
                    from £127.13
                    FUEL FILLER Genuine Lamborghini - New (to order)
                    FUEL FILLER Genuine Lamborghini - Used In stock
                    # 005
                    MPN: 400201557
                    SEAL
                    from £362.85
                    from £362.85
                    SEALING WASHER Genuine Lamborghini - New (to order)
                    # 006
                    MPN: 400201587A
                    FUEL TANK CAP
                    from £589.64
                    from £589.64
                    This part replaces part number 006219224
                    TAPPO BENZINA Genuine Lamborghini - New (to order)
                    # 007
                    MPN: 400809909
                    FUEL FILLER FLAP
                    from £70.13
                    from £70.13
                    TANK FLAP Genuine Lamborghini - New (to order)
                    TANK FLAP Genuine Lamborghini - Used In stock
                    TANK FLAP Genuine Lamborghini - New (other) In stock
                    PANITED
                    # 007
                    MPN: 400809909A
                    FUEL FILLER FLAP
                    from £76.76
                    from £76.76
                    FUEL FILLER DOOR Genuine Lamborghini - New (to order)
                    FUEL FILLER DOOR Genuine Lamborghini - Used In stock
                    # 008
                    MPN: 407809933B
                    POT
                    from £62.73
                    from £62.73
                    INSERT,FUEL FILLER Genuine Lamborghini - New (to order)
                    # 009
                    MPN: 8Z0809937
                    HOSE
                    610MM
                    from £1.61
                    from £1.61
                    WATER OUTLET PIPE Genuine Lamborghini - New In stock
                    # 010
                    MPN: 407998375
                    REPAIR SET
                    Supersession
                    Supersession
                    Genuine Lamborghini (no longer available to order)
                    # 011
                    MPN: 1J0809931
                    SPRING
                    from £2.49
                    from £2.49
                    SPRING Genuine Lamborghini - New In stock
                    # 012
                    MPN: 407809930B
                    POT
                    from £175.32
                    from £175.32
                    This part replaces part number 407809930A
                    INSERT,FUEL FILLER Genuine Lamborghini - New (to order)
                    # 013
                    MPN: N90924801
                    HEXAGON SOCKET HEAD BOLT
                    M6X17
                    from £3.23
                    from £3.23
                    CYLINDER HEAD SCREW Genuine Lamborghini - New (to order)
                    # 014
                    MPN: N90455204
                    FILLISTER HD. BOLT
                    M4X10
                    from £0.53
                    from £0.53
                    SCREW Genuine Lamborghini - New In stock
                    FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                    # 015
                    MPN: 410103638
                    GROMMET
                    5X8X2
                    from £9.07
                    from £9.07
                    This part replaces part number 008610503
                    GROMMET 5X8X2 MM Genuine Lamborghini - New In stock
                    # 016
                    MPN: N10720101
                    COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD
                    M4X18
                    from £0.53
                    from £0.53
                    HEXALOBULAR SOCKETM4X18 Genuine Lamborghini - New In stock
