lamborghini gallardo spyder (2008) drive shaft front parts diagram

407.02.00 - DRIVE SHAFT FRONT

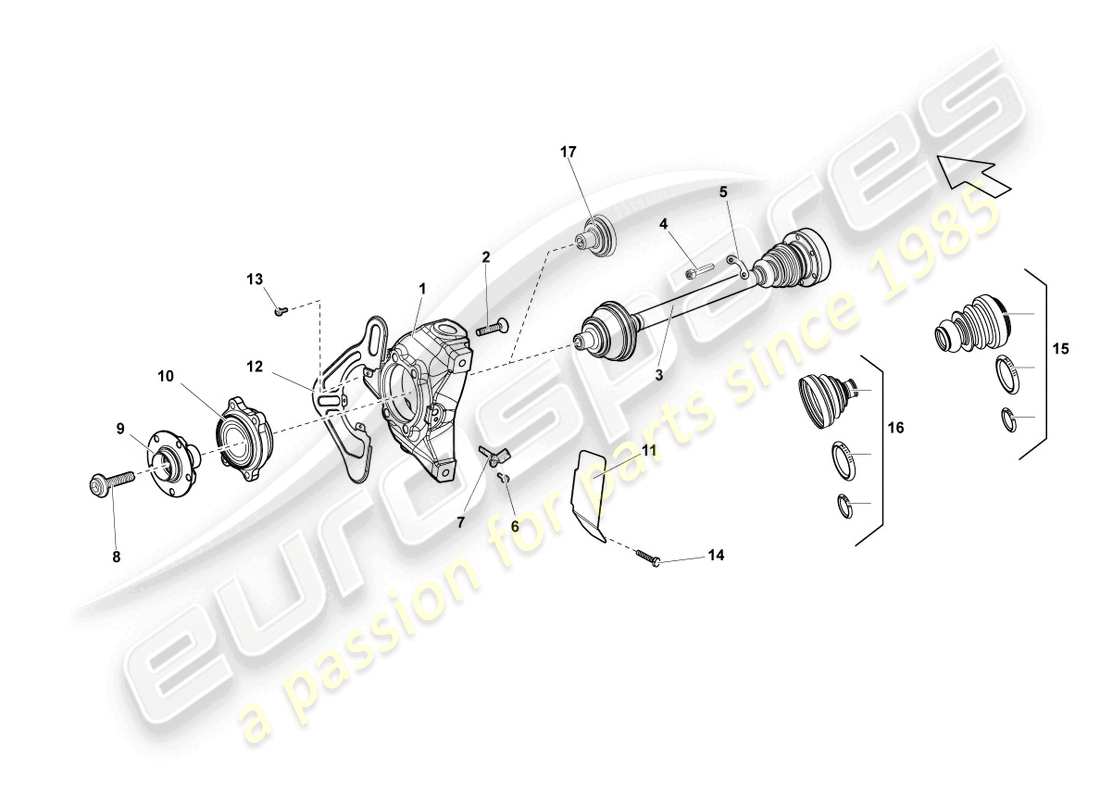

Lamborghini Gallardo Spyder (2008) DRIVE SHAFT FRONT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 400407245A
      WHEEL BEARING HOUSING
      LEFT
      from £244.68
      from £244.68
      STEERING KNUCKLE Genuine Lamborghini - New (to order)
      STEERING KNUCKLE Genuine Lamborghini - Used In stock
      STEERING KNUCKLE Genuine Lamborghini - Used In stock
      # 001
      MPN: 400407246A
      WHEEL BEARING HOUSING
      RIGHT
      from £183.75
      from £183.75
      STEERING KNUCKLE Genuine Lamborghini - New (to order)
      STEERING KNUCKLE Genuine Lamborghini - Used In stock
      STEERING KNUCKLE Genuine Lamborghini - Used In stock
      # 002
      MPN: WHT000237
      BALL SCREW
      M12X1,5X45
      from £4.27
      from £4.27
      12-POINT SOCKET BOLT M12X45 Genuine Lamborghini - New (to order)
      # 003
      MPN: 400407271
      DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS
      LEFT
      from £1,275.05
      from £1,275.05
      LEFT DRIVE SHAFT Genuine Lamborghini - New (to order)
      LEFT DRIVE SHAFT Genuine Lamborghini - Used In stock
      # 003
      MPN: 400407272
      DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS
      RIGHT
      from £400.38
      from £400.38
      RIGHT DRIVE SHAFT Genuine Lamborghini - New (to order)
      RIGHT DRIVE SHAFT Genuine Lamborghini - Used In stock
      # 004
      MPN: WHT000922
      SCREW WITH INT. SERRATIONS
      M8X55
      from £5.86
      from £5.86
      BOLT Genuine Lamborghini - New In stock
      # 005
      MPN: 8E0407357
      SPACER
      from £47.06
      from £47.06
      BACKING PLATE Genuine Lamborghini - New (to order)
      # 006
      MPN: N01474011
      SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
      M6X16
      from £1.26
      from £1.26
      PAN HEAD BOLT M6X16 Genuine Lamborghini - New In stock
      bolt, with hex. socket - hd. - M 6 X 16 - F 94-MS400 096>> - F 94-MS430 324>> Genuine Porsche Part - New In stock
      # 007
      MPN: 4E0927803F
      SPEED SENSOR
      from £45.94
      from £45.94
      This part replaces part number 4E0927803D which we have in stock - and 7 more. Click to view details
      SPEED SENSOR RIGHT Genuine Lamborghini - New (to order)
      SPEED SENSOR Genuine Porsche Part - New (to order)
      SPEED SENSOR RIGHT Genuine Lamborghini - Used In stock
      # 007
      MPN: 4E0927804F
      SPEED SENSOR
      from £45.94
      from £45.94
      This part replaces part number 4E0927804D which we have in stock - and 6 more. Click to view details
      SPEED SENSOR LEFT Genuine Lamborghini - New (to order)
      SPEED SENSOR Genuine Porsche Part - New (to order)
      SPEED SENSOR LEFT Genuine Lamborghini - Used In stock
      # 008
      MPN: 4B0407643A
      SHOULDERED BOLT
      M16X1,5X72
      from £5.90
      from £5.90
      HEXAGON HEAD BOLT M16X72 Genuine Lamborghini - New In stock
      HEXAGON HEAD BOLT M16X72 Genuine Lamborghini - Used In stock
      # 009
      MPN: 4E0407613A
      WHEEL HUB
      92MM
      from £295.15
      from £295.15
      WHEEL HUB Genuine Lamborghini - New (to order)
      # 010
      MPN: 4E0407625F
      DOUBLE (ANGLED) BALL BEARING WITH FLANGE
      92MM
      from £122.74
      from £122.74
      This part replaces part number 4E0407625D
      ANGULAR CONTACT Genuine Lamborghini - New In stock
      # 011
      MPN: 400614753B
      HEAT SHIELD
      LEFT
      from £11.73
      from £11.73
      PARATIA ANTIC SENSORE ABS Genuine Lamborghini - New (to order)
      # 011
      MPN: 400614754B
      HEAT SHIELD
      RIGHT
      from £11.73
      from £11.73
      PARATIA ANTIC SENSORE ABS Genuine Lamborghini - New (to order)
      # 012
      MPN: 400407721B
      COVER PLATE FOR BRAKE DISC
      LEFT
      from £9.22
      from £9.22
      SHIELD Genuine Lamborghini - New (to order)
      SHIELD Genuine Lamborghini - Used In stock
      # 012
      MPN: 400407722B
      COVER PLATE FOR BRAKE DISC
      RIGHT
      from £9.22
      from £9.22
      SHIELD Genuine Lamborghini - New (to order)
      SHIELD Genuine Lamborghini - Used In stock
      # 013
      MPN: N10459201
      HEXAGON SOCKET HEAD BOLT
      M5X12
      from £0.47
      from £0.47
      Genuine Lamborghini (no longer available to order)
      HEXAGONAL SOCKET HEAD Genuine Porsche Part - New (to order)
      # 014
      MPN: N91126601
      OVAL HEXAGON SOCKET HEAD BOLT
      M6X16
      from £0.57
      from £0.57
      HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
      # 015
      MPN: 400498099A
      JOINT PROT. SLEEVE WITH ASSY PARTS
      INNER
      from £177.53
      from £177.53
      WHEEL SHAFT, OUTER Genuine Lamborghini - New (to order)
      # 016
      MPN: 400498099
      JOINT PROT. SLEEVE WITH ASSY PARTS
      OUTER
      from £60.75
      from £60.75
      WHEEL SHAFT, OUTER Genuine Lamborghini - New (to order)
      # 017
      -
      STUB AXLE
      NOT AVAILABLE - NOT FOR THIS MODEL
