129.05.00 - INTAKE MANIFOLD

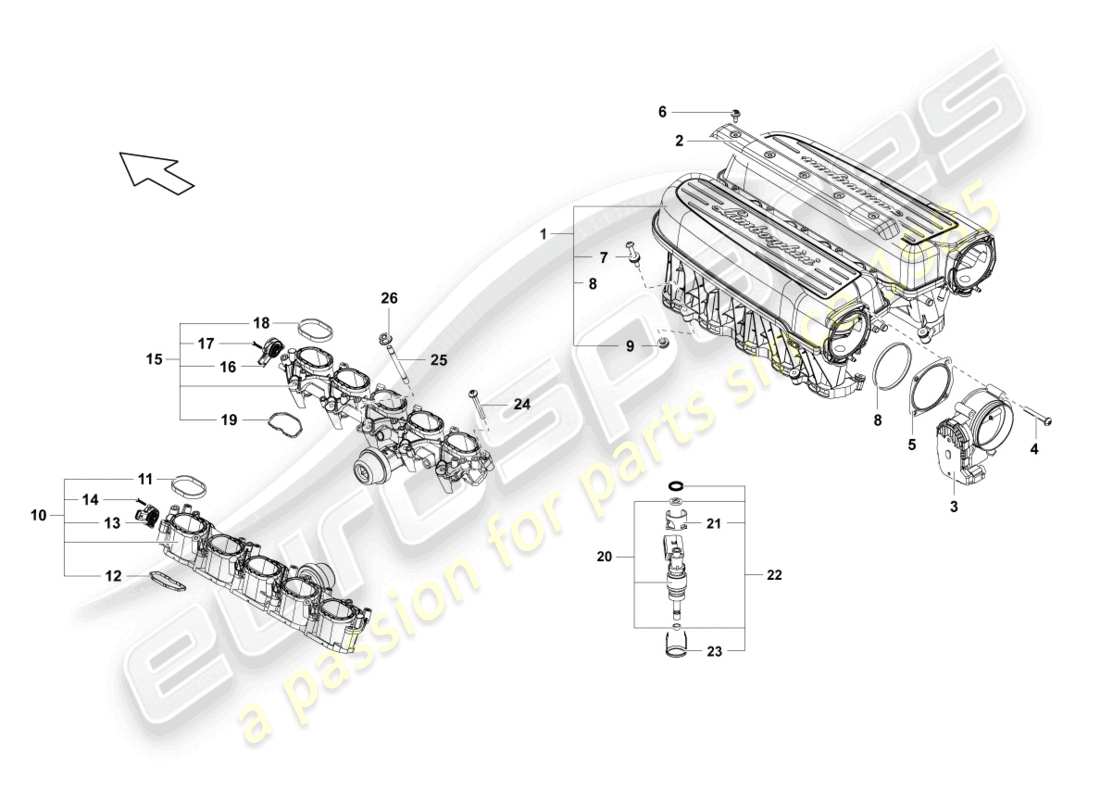

Lamborghini LP550-2 Coupe (2014) INTAKE MANIFOLD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 06E133810
VACUUM HOSE
from £3.68
from £3.68
# 001
MPN: 07L133185H
INTAKE MANIFOLD
UPPER
from £864.65
from £864.65
# 002
MPN: 07L133920B
COVER FOR INTAKE MANIFOLD
from £234.33
from £234.33
# 003
MPN: 07L133062G
THROTTLE VALVE ADAPTER
from £289.14
from £289.14
# 004
MPN: N10405702
HEXAGON SOCKET HEAD BOLT
M6X45
from £1.60
from £1.60
# 005
MPN: 07L133920D
SEAL
from £5.85
from £5.85
# 006
MPN: WHT003265
FLAT HEAD MULTI-POINT SOCKET BOLT
from £4.55
from £4.55
# 007
MPN: 07L133588
HEXAGON SOCKET FILLISTER HEAD SCREW WITH SPACER SLEEVE
UPPER
from £19.77
from £19.77
# 008
MPN: 07L133073F
SEAL
from £16.61
from £16.61
# 009
MPN: 07L133588A
DAMPING SLEEVE
LOWER
from £10.59
from £10.59
# 010
MPN: 07L133109BD
INTAKE MANIFOLD LOWER PART WITH VACUUM POSITIONER AND FUEL INJECTOR W/ RETAINING BAR
LEFT
from £638.10
from £638.10
# 011
MPN: 07L129717E
SEAL
from £13.41
from £13.41
# 012
MPN: 07L198717A
1 SET INTAKE MANIFOLD SEALS
LOWER
from £28.19
from £28.19
# 013
MPN: 07L907386B
SWING ANGLE SENSOR
from £60.35
from £60.35
# 014
MPN: N10535603
SELF-TAPPING SCREW
3X16
from £0.53
from £0.53
# 015
MPN: 07L133110BD
INTAKE MANIFOLD LOWER PART WITH VACUUM POSITIONER AND FUEL INJECTOR W/ RETAINING BAR
RIGHT
from £638.10
from £638.10
# 016
MPN: 07L907386B
SWING ANGLE SENSOR
from £60.35
from £60.35
# 017
MPN: N10535603
SELF-TAPPING SCREW
3X16
from £0.53
from £0.53
# 018
MPN: 07L129717E
SEAL
from £13.41
from £13.41
# 019
MPN: 07L198717A
1 SET INTAKE MANIFOLD SEALS
LOWER
from £28.19
from £28.19
# 020
MPN: 079906036C
INJECTION VALVE
FROM ENGINE CEH002551 - ALSO USE KIT 06E998907B REF. 22
Supersession
Supersession
# 021
MPN: 079133036
SUPPORT ELEMENT
# 022
MPN: 06E998907E
REPAIR KIT FOR VALVE UNIT
FROM ENGINE CEH002551
from £15.14
from £15.14
# 023
MPN: 06E906189
INTERMEDIATE RING
# 024
MPN: N10470703
ROUND HD. SCREW
M6X50
from £1.15
from £1.15
This part replaces part number N10470701
# 025
MPN: N10720801
ROUND-HEAD SCREW
from £0.58
from £0.58
# 026
MPN: N01508213
HEXAGON COLLAR NUT
M6
from £0.47
from £0.47
This part replaces part number 008200614 which we have in stock - and 2 more. Click to view details
