853.01.00 - SIDE MEMBER TRIM

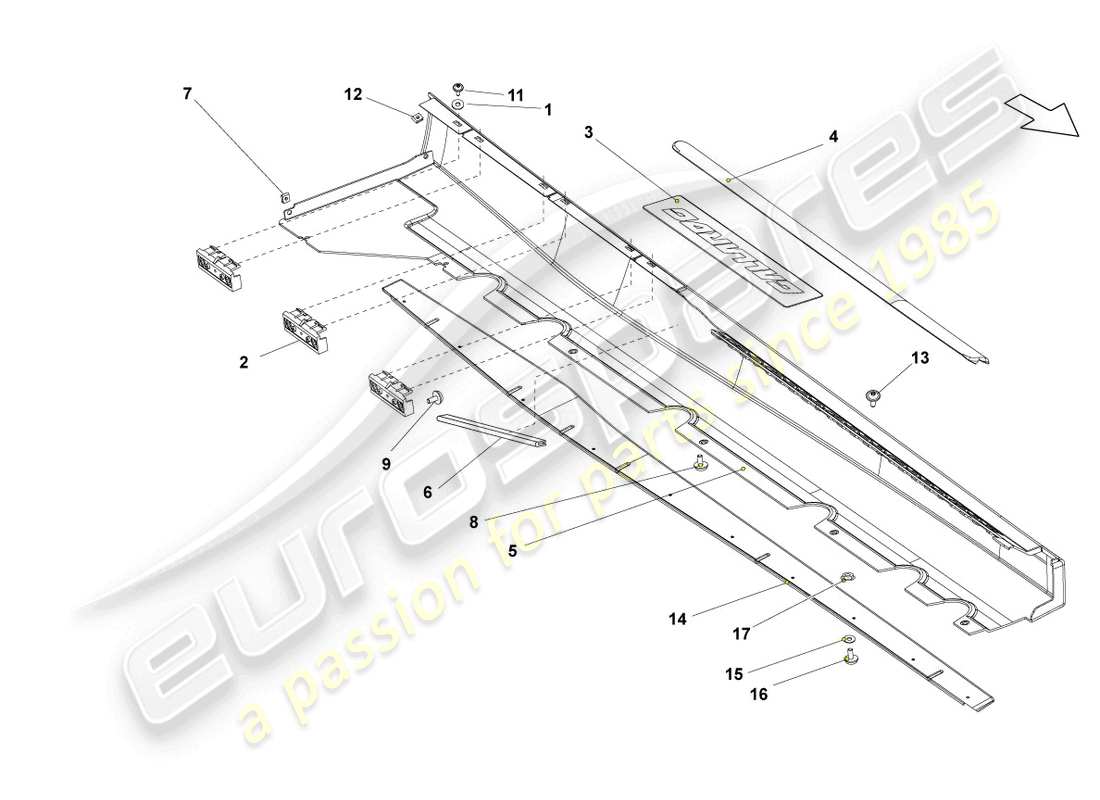

Lamborghini LP560-2 Coupe 50 (2014) SIDE MEMBER TRIM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: WHT000778
WASHER
30X36X1
from £0.50
from £0.50
# 002
MPN: 400807286
BRACKET
from £58.97
from £58.97
# 003
MPN: 400853373
MOLDING FOR SILL PANELTRIM
from £65.73
from £65.73
# 003
MPN: 400853373C
MOLDING FOR SILL PANELTRIM
OPTIONAL MADE OF STAINLESS STEEL
from £81.33
from £81.33
# 004
MPN: 400853491C
MOLDING FOR SIDE MEMBER
LEFT
from £71.58
from £71.58
# 004
MPN: 400853492C
MOLDING FOR SIDE MEMBER
RIGHT
from £71.58
from £71.58
# 005
MPN: 400853563C
SIDE MEMBER TRIM
LEFT
from £862.05
from £862.05
# 005
MPN: 400853564D
SIDE MEMBER TRIM
RIGHT
from £862.05
from £862.05
# 006
-
SEAL
# 007
MPN: N90777702
SPEED NUT
M5X13.6X11.5
from £0.78
from £0.78
# 008
MPN: N90807405
HEX SOCKET OVAL HEAD COLLARED
M5X18
from £0.51
from £0.51
This part replaces part number N90807401 - and 1 more. Click to view details
# 009
MPN: N90847903
HEXAGON HEAD BOLT (COMBI)
M6X15
from £0.61
from £0.61
This part replaces part number N90847901
# 011
MPN: WHT001190
ROUND HD. SCREW
M5X12
from £0.50
from £0.50
# 012
MPN: N90342503
SPEED NUT
M6X19,5X18
from £0.98
from £0.98
# 013
MPN: N90857301
HEX SOCKET HEAD LOCATING BOLT
4,8X16X12,5
from £0.50
from £0.50
# 014
-
WIDENED SILL PANELS
# 015
-
WASHER
# 015
MPN: WHT000778
WASHER
30X36X1
from £0.47
from £0.47
# 016
-
HEX SOCKET OVAL HEAD COLLARED
# 016
MPN: N90807405
HEX SOCKET OVAL HEAD COLLARED
M5X18
from £0.47
from £0.47
This part replaces part number N90807401 - and 1 more. Click to view details
# 017
-
HEXAGON NUT
# 017
MPN: N0211963
HEXAGON NUT
M5
from £0.47
from £0.47
