lamborghini lp560-4 coupe (2011) heating and ventilation system parts diagram

815.01.00 - HEATING AND VENTILATION SYSTEM

Lamborghini LP560-4 Coupe (2011) HEATING AND VENTILATION SYSTEM Parts Diagram

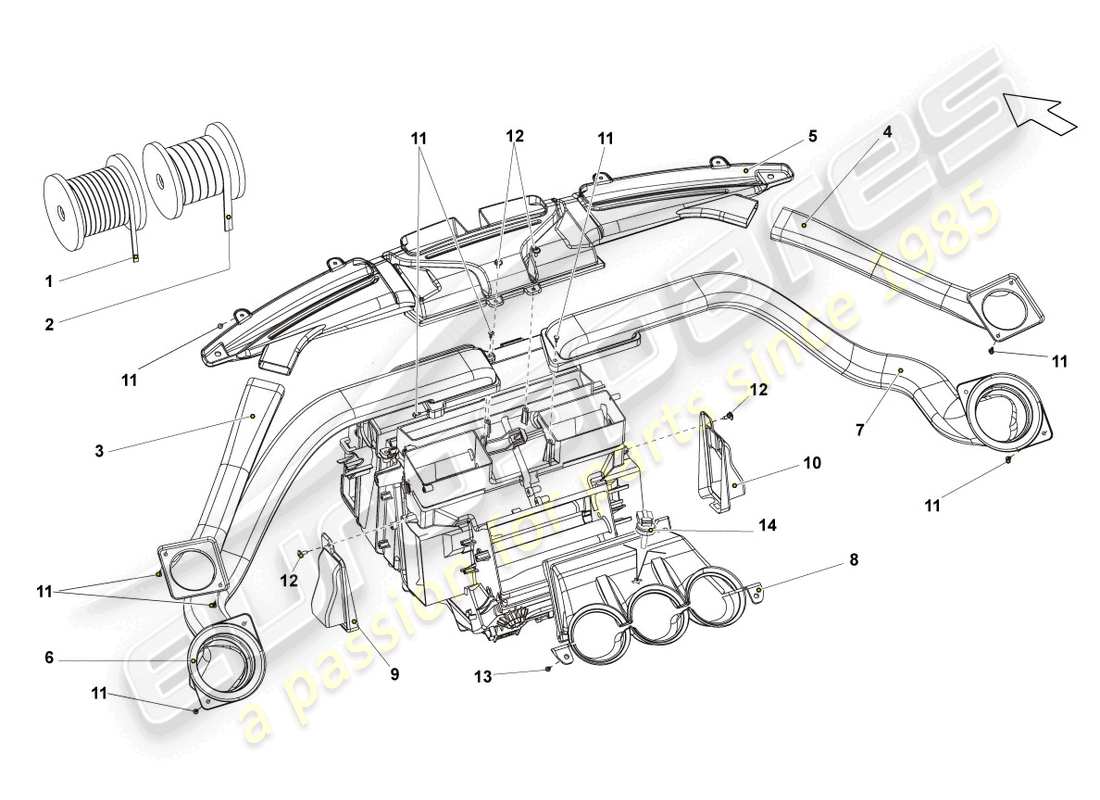

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 051763003
SEALING TAPE
ORDER BY THE METRE-4X10 (UK, USA spec vehicles)
from £6.87
from £6.87
PROF.MAPPYPREN AU/30302AD 4X10 Genuine Lamborghini - New (to order)
# 002
MPN: 051763004
SEALING TAPE
ORDER BY THE METRE-10X10 (UK, USA spec vehicles)
from £8.30
from £8.30
PROF.MAPPYPREN AU/30 AD 10X10 Genuine Lamborghini - New (to order)
# 003
MPN: 400815683
AIR GUIDE CHANNEL
LEFT (UK, USA spec vehicles)
from £10.27
from £10.27
DEFROSTER DUCT Genuine Lamborghini - New (to order)
DEFROSTER DUCT Genuine Lamborghini - Used In stock
# 004
MPN: 400815684
AIR GUIDE CHANNEL
RIGHT (UK, USA spec vehicles)
from £10.27
from £10.27
DEFROST DUCT Genuine Lamborghini - New (to order)
DEFROST DUCT Genuine Lamborghini - Used In stock
# 005
MPN: 400819203
DEFROSTER NOZZLE FOR WIND- SCREEN
RIGHT (UK, USA spec vehicles)
from £44.06
from £44.06
AIR OUTLET ASSEMBLY Genuine Lamborghini - New (to order)
AIR OUTLET ASSEMBLY Genuine Lamborghini - Used In stock
# 006
MPN: 400819869A
AIR GUIDE CHANNEL
LEFT (UK, USA spec vehicles)
from £15.76
from £15.76
AIR DUCT Genuine Lamborghini - New (to order)
AIR DUCT Genuine Lamborghini - Used In stock
# 007
MPN: 400819870A
AIR GUIDE CHANNEL
RIGHT (UK, USA spec vehicles)
from £15.76
from £15.76
AIR DUCT Genuine Lamborghini - New (to order)
AIR DUCT Genuine Lamborghini - Used In stock
# 008
MPN: 400819382B
AIR GUIDE CHANNEL
CENTER (UK, USA spec vehicles)
from £16.26
from £16.26
VENT CHANNEL Genuine Lamborghini - New (to order)
VENT CHANNEL Genuine Lamborghini - Used In stock
# 009
MPN: 400864255A
COVER
LEFT (UK, USA spec vehicles)
from £18.76
from £18.76
AIR DUCT Genuine Lamborghini - New (to order)
# 010
MPN: 400864256B
COVER
RIGHT (UK, USA spec vehicles)
from £10.51
from £10.51
AIR DUCT Genuine Lamborghini - New (to order)
AIR DUCT Genuine Lamborghini - Used In stock
# 011
MPN: N90562401
OVAL HEAD PANEL SCREW
3,5X10 (UK, USA spec vehicles)
from £1.14
from £1.14
SCREW 3.5 X 10 - Q Genuine Lamborghini - New (to order)
TAPPING SCREW, FILL HD Genuine Porsche Part - New (to order)
# 012
MPN: N90986803
HEXAGON SOCKET HEAD PANEL BOLT
4,2X13 (UK, USA spec vehicles)
from £0.61
from £0.61
This part replaces part number N90986801
HEXAGON SOCKET HEAD PANEL BOLT, 4.2 X 13 Genuine Lamborghini - New In stock
HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New In stock
# 013
MPN: N90944603
OVAL HEXAGON SOCKET HEAD BOLT
M5X12 (UK, USA spec vehicles)
from £0.75
from £0.75
OVAL HEXAGON SOCKET HEAD BOLT M5 X 12 Genuine Lamborghini - New In stock
OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
