825.07.00 - HEAT SHIELD

Lamborghini LP560-4 Coupe FL II (2013) HEAT SHIELD Parts Diagram

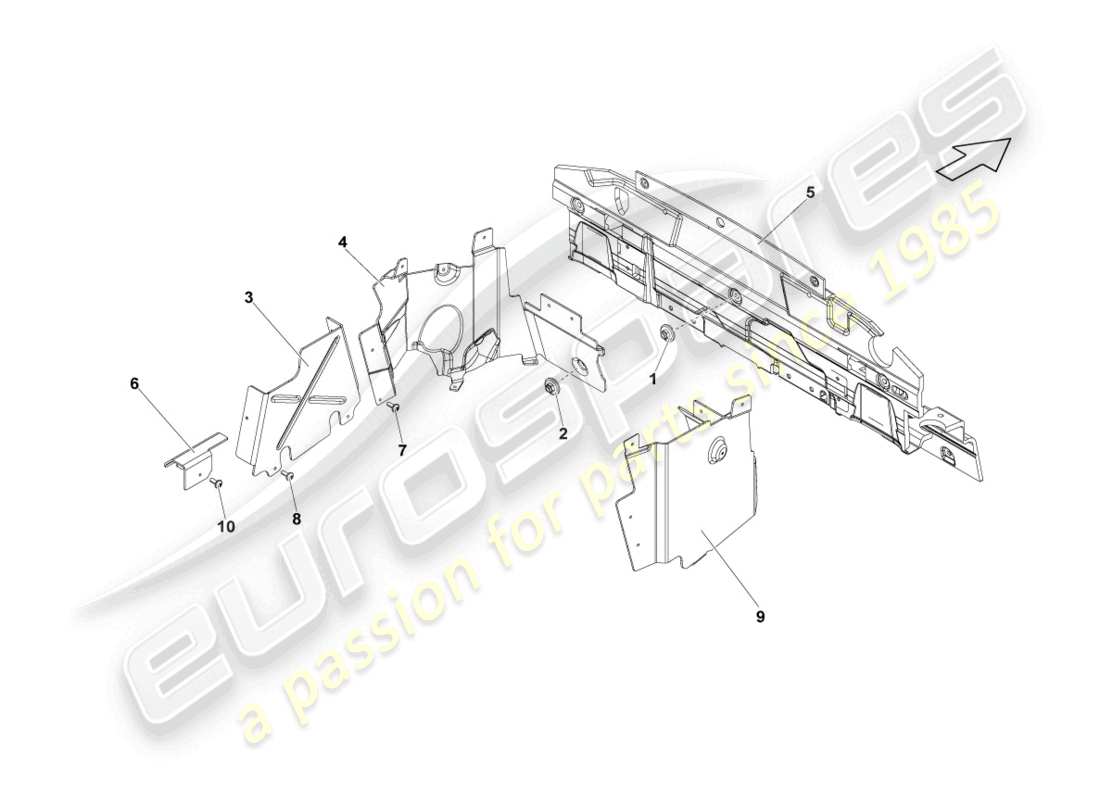

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: N90641901
    HEXAGON NUT
    5
    from £0.61
    from £0.61
    # 002
    MPN: N90745001
    HEXAGON COLLAR NUT
    5
    from £0.63
    from £0.63
    # 003
    MPN: 420825741
    GUARD PLATE
    LEFT
    from £17.41
    from £17.41
    # 003
    MPN: 420825742
    GUARD PLATE
    RIGHT
    from £17.41
    from £17.41
    # 004
    MPN: 420825731E
    HEAT SHIELD
    LEFT
    from £40.90
    from £40.90
    # 005
    MPN: 408825249A
    SOUND ABSORBER FOR REAR PANEL
    from £271.50
    from £271.50
    # 006
    MPN: 420825707
    HEAT DEFLECTOR PLATE FOR BUMPER
    LEFT
    from £9.52
    from £9.52
    # 006
    MPN: 420825708
    HEAT DEFLECTOR PLATE FOR BUMPER
    RIGHT
    from £9.52
    from £9.52
    # 007
    MPN: 4E0831701
    SHOULDERED BOLT
    M6X13
    from £0.61
    from £0.61
    # 008
    MPN: 4E0831701
    SHOULDERED BOLT
    M6X13
    from £0.63
    from £0.63
    # 009
    MPN: 420825733A
    HEAT SHIELD
    RIGHT
    from £40.90
    from £40.90
    # 010
    MPN: 4E0831701
    SHOULDERED BOLT
    M6X13
    from £0.64
    from £0.64
