lamborghini lp560-4 spider (2009) gear selector parts diagram

325.03.00 - GEAR SELECTOR

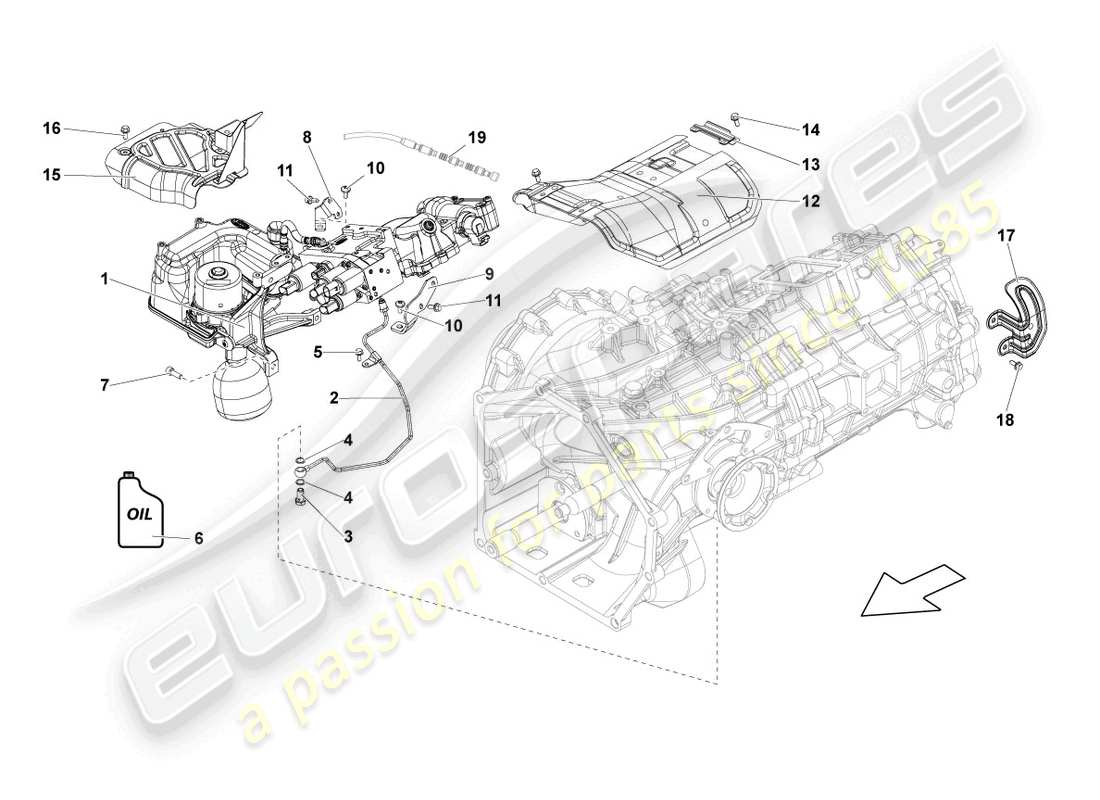

Lamborghini LP560-4 Spider (2009) GEAR SELECTOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 086301247C
                GEAR SELECTOR
                ATTENTION UNTIL THE VIN ALA08949, IN CASE OF REPLECEMENT, ALSO USE THE REF. 10 - 11 - 12 - 13 TABLE 325.05.00
                from £3,601.96
                from £3,601.96
                SHIFT ROD Genuine Lamborghini - New (to order)
                SHIFT ROD Genuine Lamborghini - Used In stock
                # 002
                MPN: 086115673D
                PIPE ASSEMBLY
                from £55.88
                from £55.88
                TUBO FLESS.OLIO Genuine Lamborghini - New In stock
                TUBO FLESS.OLIO Genuine Lamborghini - Used In stock
                # 003
                MPN: N0210717
                BANJO BOLT
                M12
                from £2.22
                from £2.22
                BANJO BOLT 8 Genuine Lamborghini - New (to order)
                banjo bolt (N 0210717) Genuine Porsche Part - New (to order)
                # 004
                MPN: N0138133
                SEAL RING
                12X17
                from £1.88
                from £1.88
                SEALING RING A12X17 DIN7603-A Genuine Lamborghini - New (to order)
                seal ring (N 0138133) Genuine Porsche Part - New (to order)
                # 005
                MPN: N10338903
                HEX COLLARED BOLT
                M6X16
                from £0.53
                from £0.53
                HEXAGON FLANGE Genuine Lamborghini - New (to order)
                bolt, hex. hd. with shoulder (N 10338903) Genuine Porsche Part - New (to order)
                # 006
                MPN: 900000140
                CENTR. HYDRAULIC OIL
                1.0LTR-1.0 LTR.
                from £68.99
                from £68.99
                HYDRAULIC FLUID Genuine Lamborghini - New (to order)
                OZONE MAKER (900000140) Genuine Maserati Part - New (to order)
                # 007
                MPN: N91128701
                SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                M8X32
                from £1.84
                from £1.84
                TRIPLE SQUARE BOLTM8X32 Genuine Lamborghini - New (to order)
                socket hd. screw with (N 91128701) Genuine Porsche Part - New (to order)
                # 008
                MPN: 086301953A
                BRACKET
                from £22.96
                from £22.96
                BRACKET Genuine Lamborghini - New (to order)
                # 009
                MPN: 086301953B
                BRACKET
                from £1,128.37
                from £1,128.37
                BRACKET Genuine Lamborghini - New (to order)
                # 010
                MPN: N90986103
                SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                M8X20
                from £4.45
                from £4.45
                FILLISTER HEAD Genuine Lamborghini - New (to order)
                # 011
                MPN: N10338903
                HEX COLLARED BOLT
                M6X16
                from £0.53
                from £0.53
                HEXAGON FLANGE Genuine Lamborghini - New (to order)
                bolt, hex. hd. with shoulder (N 10338903) Genuine Porsche Part - New (to order)
                # 012
                MPN: 420301325D
                GUARD PLATE
                from £40.23
                from £40.23
                SHIELD Genuine Lamborghini - New (to order)
                SHIELD Genuine Lamborghini - Used In stock
                # 013
                MPN: 420301365
                SPRING CLIP
                from £35.33
                from £35.33
                CLAMP STRAP Genuine Lamborghini - New (to order)
                # 014
                MPN: N10338903
                HEX COLLARED BOLT
                M6X16
                from £0.53
                from £0.53
                HEXAGON FLANGE Genuine Lamborghini - New (to order)
                bolt, hex. hd. with shoulder (N 10338903) Genuine Porsche Part - New (to order)
                # 015
                MPN: 420301325
                GUARD PLATE
                from £107.95
                from £107.95
                SHIELD Genuine Lamborghini - New (to order)
                SHIELD Genuine Lamborghini - Used In stock
                # 016
                MPN: N10338903
                HEX COLLARED BOLT
                M6X16
                from £0.53
                from £0.53
                HEXAGON FLANGE Genuine Lamborghini - New (to order)
                bolt, hex. hd. with shoulder (N 10338903) Genuine Porsche Part - New (to order)
                # 017
                MPN: 420301325B
                GUARD PLATE
                from £19.98
                from £19.98
                SHIELD Genuine Lamborghini - New (to order)
                SHIELD Genuine Lamborghini - Used In stock
                # 018
                MPN: N10338903
                HEX COLLARED BOLT
                M6X16
                from £0.53
                from £0.53
                HEXAGON FLANGE Genuine Lamborghini - New (to order)
                bolt, hex. hd. with shoulder (N 10338903) Genuine Porsche Part - New (to order)
                # 019
                -
                PIPE
