827.08.00 - REAR LID

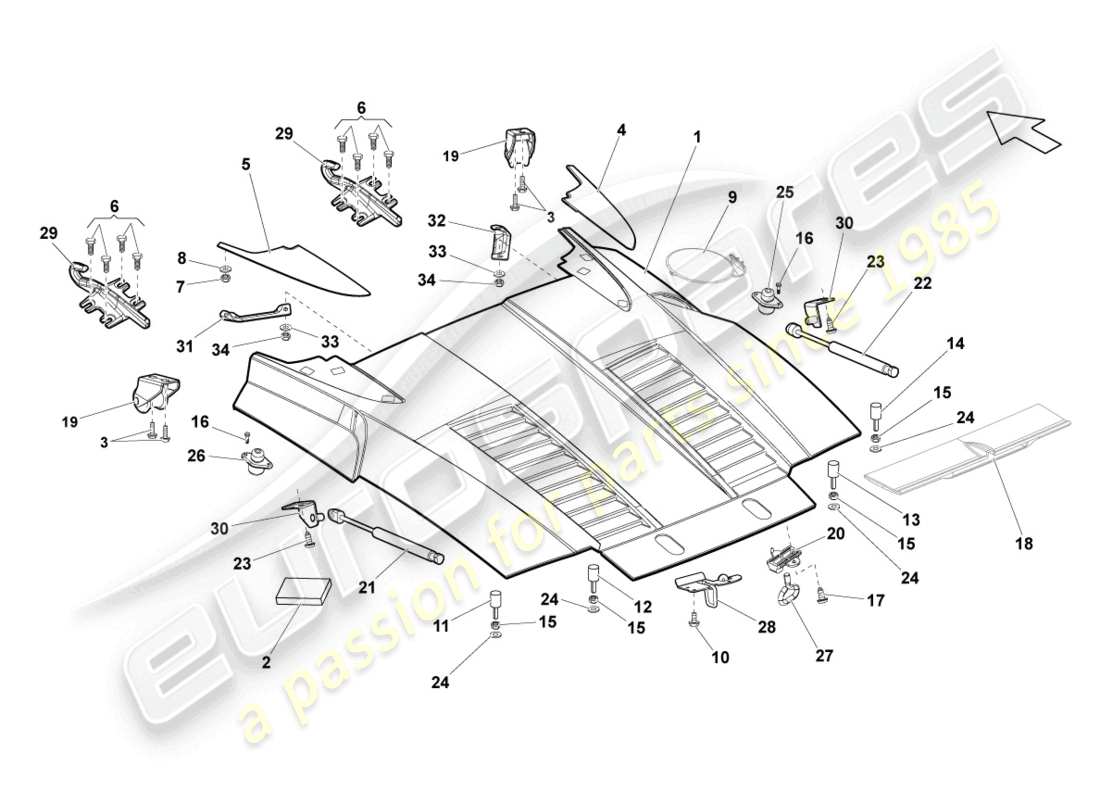

Lamborghini LP560-4 Spyder FL II (2013) REAR LID Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 407827023B
REAR LID
from £8,288.90
from £8,288.90
# 002
MPN: 407827781B
FOAM PROFILE
from £4.85
from £4.85
# 003
MPN: N0195195
HEX COLLARED BOLT
M8X16
from £0.70
from £0.70
# 004
MPN: 407827340B
COVER
RIGHT
from £212.05
from £212.05
This part replaces part number 407827340A - and 2 more. Click to view details
# 005
MPN: 407827339B
COVER
LEFT
from £215.31
from £215.31
This part replaces part number 407827339A - and 2 more. Click to view details
# 006
MPN: N90833202
HEXAGON BOLT
M6X22
from £0.49
from £0.49
# 007
MPN: WHT002959
CLAMPING NUT
M4
from £0.56
from £0.56
# 008
MPN: N01152221
WASHER
4,3X9X0,8
from £0.53
from £0.53
This part replaces part number 008400401
# 009
-
FUEL FILLER FLAP
# 010
MPN: N90532901
HEXAGON HEAD BOLT (COMBI)
M6X16
from £2.73
from £2.73
# 011
MPN: 400807333
SUPPORT
from £12.06
from £12.06
# 012
MPN: 400807333
SUPPORT
from £12.06
from £12.06
# 013
MPN: 400807333
SUPPORT
from £12.06
from £12.06
# 014
MPN: 400807333
SUPPORT
from £12.06
from £12.06
# 015
MPN: N01111611
HEXAGON NUT
M6
from £1.08
from £1.08
This part replaces part number 008200609
# 016
MPN: N10353802
HEXAGON SOCKET OVAL HEAD PANEL BOLT (COMBI)
4,8X13
from £0.52
from £0.52
# 017
MPN: N90847903
HEXAGON HEAD BOLT (COMBI)
M6X15
from £0.61
from £0.61
This part replaces part number N90847901
# 018
-
REAR SPOILER
# 019
MPN: 407827501C
LID LOCK
from £90.60
from £90.60
# 020
MPN: 4E0823203B
BRACKET
from £3.07
from £3.07
# 021
MPN: 407827550B
GAS FILLED STRUT
SPRING WITH MECHANICAL STOP
from £65.73
from £65.73
# 022
MPN: 407827550A
GAS FILLED STRUT
from £21.18
from £21.18
# 023
MPN: N10578904
FLAT ROUND HEAD BOLT
M8X20
from £1.07
from £1.07
# 024
MPN: N01166623
WASHER
6,4X18X1,6
from £0.94
from £0.94
This part replaces part number WHT000909
# 025
MPN: 8L0827249
STOP BUFFER, ADJUSTABLE
from £5.58
from £5.58
# 026
MPN: 8L0827249
STOP BUFFER, ADJUSTABLE
from £5.58
from £5.58
# 027
MPN: 4E0823197A
LOCK BAR
from £9.95
from £9.95
# 028
MPN: 400827518B
STRIKER
from £7.73
from £7.73
This part replaces part number 400827518A which we have in stock - and 3 more. Click to view details
# 029
MPN: 407827355
HINGE HOOK
LEFT A. RIGHT
from £111.29
from £111.29
# 030
MPN: 407827523B
BRACKET
LEFT
from £21.66
from £21.66
# 030
MPN: 407827524B
BRACKET
RIGHT
from £81.56
from £81.56
# 031
MPN: 407827657A
BRACKET
LEFT
from £2.81
from £2.81
# 032
MPN: 407827658A
BRACKET
RIGHT
from £2.81
from £2.81
# 033
MPN: N01152221
WASHER
4,3X9X0,8
from £0.53
from £0.53
This part replaces part number 008400401
# 034
MPN: WHT002959
CLAMPING NUT
M4
from £0.55
from £0.55
