lamborghini lp570-4 sl (2012) seat, complete parts diagram

881.03.00 - SEAT, COMPLETE

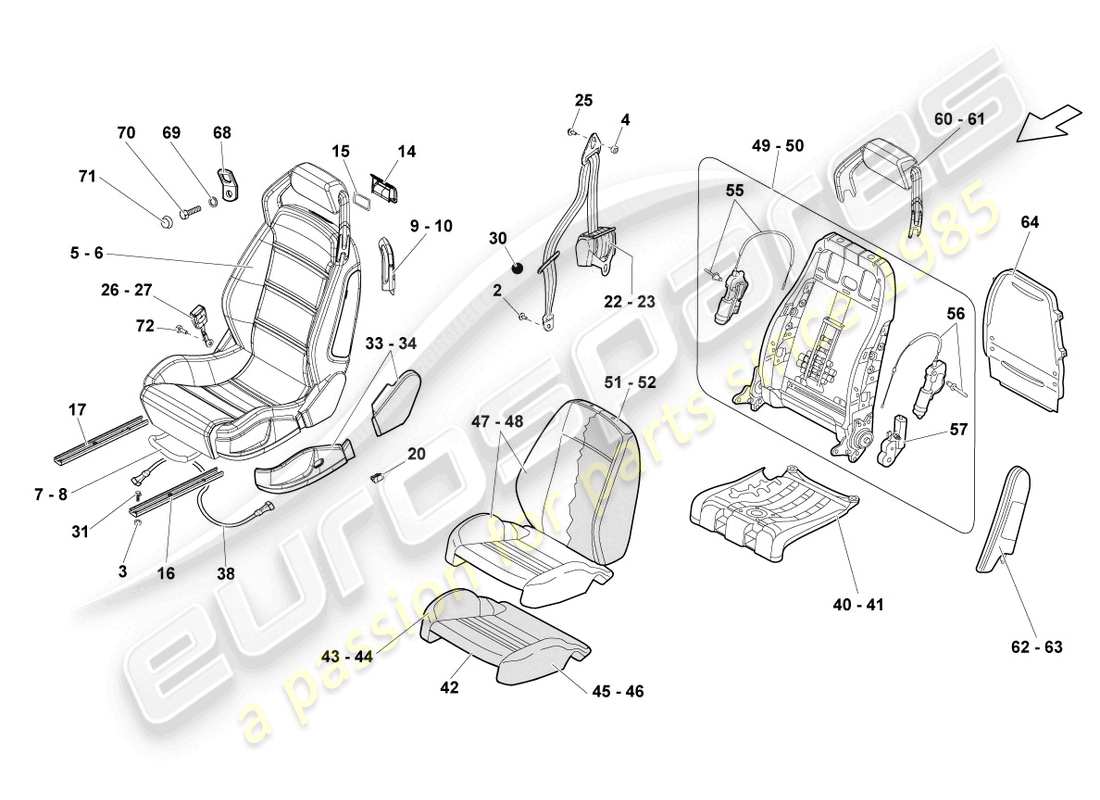

Lamborghini LP570-4 SL (2012) SEAT, COMPLETE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 002
              MPN: N98924901
              HEXAGON BOLT
              7/16-20X25
              from £2.02
              from £2.02
              HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
              HEXAGON BOLT Genuine Bentley Part - New (to order)
              # 003
              MPN: 400804347
              DISTANCE PLATE
              from £11.11
              from £11.11
              SPACER PLATE Genuine Lamborghini - New In stock
              # 004
              MPN: 400857767
              SPACER SLEEVE
              from £11.11
              from £11.11
              SPACER SLEEVE Genuine Lamborghini - New In stock
              # 005
              -
              COMPLETE SEAT WITH BACKREST AND HEADREST, MECHANICALLY ADJUSTABLE
              LEFT AND RIGHT MANUAL SEAT NOT AVAIABLE - SEE ELECTRICAL SEAT-LEFT A. RIGHT
              # 006
              -
              SEAT, COMPLETE
              INCLUDED IN REF.:- 5
              # 007
              MPN: 400881091
              LEVER F. SEAT FORE+AFR ADJUST.
              Manual
              from £122.56
              from £122.56
              LEVER, SEAT GUIDE Genuine Lamborghini - New (to order)
              # 008
              -
              LEVER F. SEAT FORE+AFR ADJUST.
              INCLUDED IN REF.:- 7
              # 009
              -
              SEAT BELT GUIDE
              VALID UP TO MODEL YEAR 08 -LEFT A. RIGHT
              # 010
              -
              SEAT BELT GUIDE
              VALID UP TO MODEL YEAR 08 - INCLUDED IN REF.:- 9
              # 014
              MPN: 400881605
              SEAT RELEASE
              from £628.02
              from £628.02
              RELEASE LEVER Genuine Lamborghini - New (to order)
              # 015
              MPN: 400881607
              TRIM FOR SEAT RELEASE
              from £126.47
              from £126.47
              TRIM Genuine Lamborghini - New (to order)
              # 016
              -
              GUIDE RAIL FOR SEAT
              CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 40 - 41-LEFT 40
              # 017
              -
              GUIDE RAIL FOR SEAT
              CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 40 - 41-RIGHT 40
              # 020
              MPN: 400959777
              SWITCH FOR SEAT ADJUSTMENT
              LEFT
              from £271.27
              from £271.27
              SWITCH Genuine Lamborghini - New (to order)
              # 022
              MPN: 401857705A
              THREE-POINT SAFETY BELT
              LEFT LHD
              from £687.10
              from £687.10
              THREE-POINT SAFETY BELT LH-LEFT LHD (EUROPE, USA spec vehicles) Genuine Lamborghini - New (to order)
              # 022
              MPN: 401857706A
              THREE-POINT SAFETY BELT
              RIGHT LHD
              from £377.45
              from £377.45
              THREE-POINT SAFETY BELT LH-RIGHT LHD (EUROPE, USA spec vehicles) Genuine Lamborghini - New (to order)
              THREE-POINT SAFETY BELT LH-RIGHT LHD (EUROPE, USA spec vehicles) Genuine Lamborghini - Used In stock
              # 023
              -
              THREE-POINT SAFETY BELT
              INCLUDED IN REF.:- 22
              # 025
              MPN: N98926601
              HEXAGON BOLT
              7/16-20X31
              from £2.53
              from £2.53
              HEXAGON SHOULDER Genuine Lamborghini - New (to order)
              # 026
              MPN: 4E0857755A
              BELT LATCH WITH WARNING CONTACT
              LEFT
              from £406.47
              from £406.47
              UNIFIED LOCK Genuine Lamborghini - New (to order)
              # 027
              MPN: 4E0857756A
              BELT LATCH WITH WARNING CONTACT
              RIGHT
              from £406.47
              from £406.47
              UNIFIED LOCK Genuine Lamborghini - New (to order)
              # 030
              MPN: 811857845
              COVER CAP
              from £2.27
              from £2.27
              SCREW HEAD CAP Genuine Lamborghini - New In stock
              Genuine Porsche Part (no longer available to order)
              # 031
              MPN: N10578904
              FLAT ROUND HEAD BOLT
              M8X20
              from £1.13
              from £1.13
              HEXALOBULAR SOCKET PAN HEAD SC EW Genuine Lamborghini - New In stock
              # 033
              MPN: 400881325
              SEAT FRAME TRIM
              LEFT
              from £1,042.34
              from £1,042.34
              LINING Genuine Lamborghini - New In stock
              # 033
              MPN: 400881326
              SEAT FRAME TRIM
              RIGHT
              from £259.93
              from £259.93
              LINING Genuine Lamborghini - New (to order)
              # 034
              -
              SEAT FRAME TRIM
              INCLUDED IN REF.:- 33
              # 038
              MPN: 400971384A
              WIRING SET FOR MECHANICALLY ADJUSTABLE SEAT
              from £630.63
              from £630.63
              HARNESS,SEAT Genuine Lamborghini - New (to order)
              # 040
              MPN: 400881157
              seat frame
              LEFT
              from £1,897.13
              from £1,897.13
              seat frame Genuine Lamborghini - New (to order)
              # 040
              MPN: 400881158
              seat frame
              RIGHT
              from £1,897.13
              from £1,897.13
              seat frame Genuine Lamborghini - New (to order)
              # 041
              -
              seat frame
              INCLUDED IN REF.:- 40
              # 042
              MPN: 400881375A
              SEAT PADDING
              CENTER - PADDING FOR SEAT MANUAL- MANUAL
              from £181.87
              from £181.87
              SEAT PADDING Genuine Lamborghini - New (to order)
              # 043
              MPN: 400881377A
              SEAT PADDING
              LEFT LEFT
              from £599.23
              from £599.23
              SEAT BOLSTERS Genuine Lamborghini - New (to order)
              # 043
              MPN: 400881378A
              SEAT PADDING
              RIGHT RIGHT
              from £294.82
              from £294.82
              SEAT BOLSTERS Genuine Lamborghini - New (to order)
              # 044
              -
              SEAT PADDING
              INCLUDED IN REF.:- 43
              # 045
              MPN: 400881377B
              SEAT PADDING
              LEFT RIGHT
              from £119.94
              from £119.94
              SEAT BOLSTERS Genuine Lamborghini - New (to order)
              # 045
              MPN: 400881378B
              SEAT PADDING
              RIGHT LEFT
              from £119.94
              from £119.94
              SEAT BOLSTERS Genuine Lamborghini - New (to order)
              # 046
              -
              SEAT PADDING
              INCLUDED IN REF.:- 45
              # 047
              MPN: 403881405
              SEAT COVER (ALCANTARA)
              LEFT
              from £6,271.45
              from £6,271.45
              COVER, FRONT SEAT Genuine Lamborghini - New (to order)
              # 047
              MPN: 403881406
              SEAT COVER (ALCANTARA)
              RIGHT
              from £6,271.45
              from £6,271.45
              COVER, FRONT SEAT Genuine Lamborghini - New (to order)
              # 048
              -
              SEAT COVER (ALCANTARA)
              INCLUDED IN REF.:- 47
              # 049
              MPN: 400881045
              backrest frame
              LEFT
              from £1,897.13
              from £1,897.13
              backrest frame Genuine Lamborghini - New (to order)
              # 049
              MPN: 400881046
              backrest frame
              RIGHT
              from £1,897.13
              from £1,897.13
              backrest frame Genuine Lamborghini - New (to order)
              # 050
              -
              backrest frame
              INCLUDED IN REF.:- 49
              # 051
              MPN: 400882843
              PADDING FOR BACKREST
              LEFT
              from £584.40
              from £584.40
              BACKREST CUSHION Genuine Lamborghini - New (to order)
              # 051
              MPN: 400882844
              PADDING FOR BACKREST
              RIGHT
              from £584.40
              from £584.40
              BACKREST CUSHION Genuine Lamborghini - New (to order)
              # 052
              -
              PADDING FOR BACKREST
              INCLUDED IN REF.:- 51
              # 055
              MPN: 400959706
              MOTOR FOR LUMBAR SUPPORT
              RIGHT
              from £414.32
              from £414.32
              drive unit Genuine Lamborghini - New (to order)
              # 056
              MPN: 400959705
              MOTOR FOR LUMBAR SUPPORT
              LEFT
              from £414.32
              from £414.32
              drive unit Genuine Lamborghini - New (to order)
              # 057
              MPN: 400959761
              MOTOR FOR BACKREST ADJUSTMENT
              LEFT A. RIGHT
              from £225.03
              from £225.03
              engine Genuine Lamborghini - New (to order)
              # 061
              -
              HEAD RESTRAINT WITH COVER
              INCLUDED IN REF.:- 60
              # 062
              MPN: 8H0880241
              SIDE AIRBAG UNIT
              LEFT
              from £354.13
              from £354.13
              SIDE AIRBAG LH Genuine Lamborghini - New (to order)
              # 062
              MPN: 8H0880242
              SIDE AIRBAG UNIT
              RIGHT
              from £354.13
              from £354.13
              SIDE AIRBAG RH Genuine Lamborghini - New (to order)
              # 063
              -
              SIDE AIRBAG UNIT
              INCLUDED IN REF.:- 62
              # 064
              -
              SEAT BACK TRIM
              NOT FOR LP 570-4 SL MODEL
              # 068
              MPN: 400858849
              HOLDER FOR CHILD SEAT ATTACHMENT
              (USA spec vehicles)
              from £58.62
              from £58.62
              ANCHOR FITTING Genuine Lamborghini - New (to order)
              # 069
              MPN: N01153118
              WASHER
              (USA spec vehicles)
              from £2.44
              from £2.44
              WASHER Genuine Lamborghini - New (to order)
              # 070
              MPN: 803019837C
              HEXAGON BOLT
              7/16 UNFX30 (USA spec vehicles)
              from £1.03
              from £1.03
              HEX.HD. SCREW Genuine Lamborghini - New (to order)
              Genuine Bentley Part (no longer available to order)
              # 071
              MPN: 811857845
              COVER CAP
              (USA spec vehicles)
              from £2.27
              from £2.27
              SCREW HEAD CAP Genuine Lamborghini - New In stock
              Genuine Porsche Part (no longer available to order)
              # 072
              MPN: N98924901
              HEXAGON BOLT
              7/16-20X25
              from £2.02
              from £2.02
              HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
              HEXAGON BOLT Genuine Bentley Part - New (to order)
