903.01.00 - ALTERNATOR

Lamborghini Super Trofeo (2009-2014) ALTERNATOR Parts Diagram

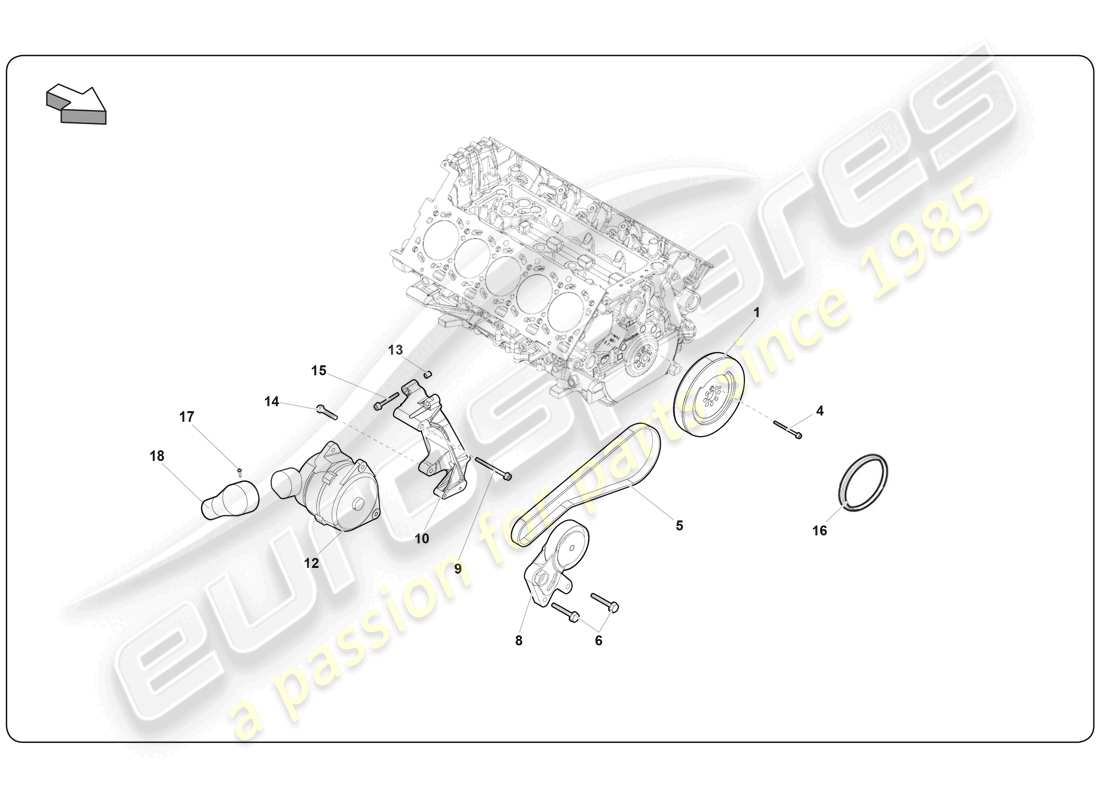

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 07L105251Q
                              DAMPER
                              from £178.50
                              from £178.50
                              VIBRATION DAMPER Genuine Lamborghini - New (to order)
                              VIBRATION DAMPER Genuine Lamborghini - Used In stock
                              # 005
                              MPN: 07L903137T
                              BELT
                              from £122.11
                              from £122.11
                              POLY-V-BELT W17HDZ Genuine Lamborghini - New In stock
                              # 008
                              MPN: 07L903133G
                              CHAIN TIGHTENER
                              from £109.38
                              from £109.38
                              TENSIONING ROLLER Genuine Lamborghini - New (to order)
                              TENSIONING ROLLER Genuine Lamborghini - Used In stock
                              # 009
                              -
                              SCREW
                              # 010
                              MPN: 07L903805S
                              SUPPORT
                              from £66.20
                              from £66.20
                              BRACKET Genuine Lamborghini - New (to order)
                              BRACKET Genuine Lamborghini - Used In stock
                              # 012
                              MPN: 079903021R
                              ALTERNATOR
                              from £695.62
                              from £695.62
                              ALTERNATOR Genuine Lamborghini - New (to order)
                              ALTERNATOR Genuine Lamborghini - Used In stock
                              # 013
                              MPN: 077115143D
                              BUSHING
                              from £9.37
                              from £9.37
                              This part replaces part number 077115143
                              SLEEVE Genuine Lamborghini - New In stock
                              CENTRE SLEEVE Genuine Bentley Part - New (to order)
                              # 016
                              MPN: 07L103051D
                              SEAL
                              Supersession
                              Supersession
                              Genuine Lamborghini (no longer available to order)
                              Genuine Bentley Part (no longer available to order)
                              # 017
                              MPN: 07L109084B
                              VVT
                              from £680.35
                              from £680.35
                              camshaft Genuine Lamborghini - New (to order)
                              # 018
                              MPN: 07L109083D
                              VVT
                              from £429.15
                              from £429.15
                              camshaft Genuine Lamborghini - New (to order)
