251.05.00 - REAR SILENCER

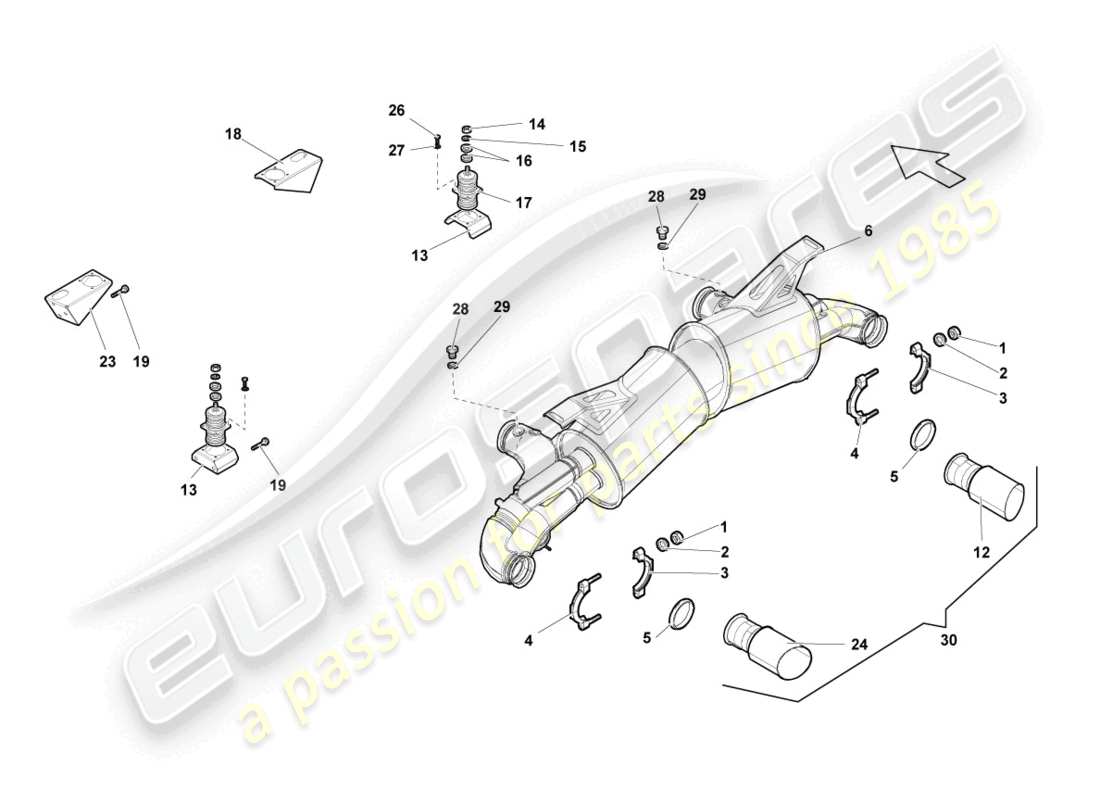

Lamborghini Superleggera (2008) REAR SILENCER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: N02214621
HEXAGON NUT, SELF-LOCKING
M8
from £1.47
from £1.47
This part replaces part number N0221468
# 001
MPN: N0221468
HEXAGON NUT, SELF-LOCKING
M8
Supersession
Supersession
# 002
MPN: WHT001185
WASHER
8,4X17
from £0.53
from £0.53
This part replaces part number 008440806
# 003
MPN: 400251143
CLAMP
from £157.81
from £157.81
# 004
MPN: 400251143B
CLAMP
from £266.31
from £266.31
# 005
MPN: 400131797
DOUBLE TAPER RING
from £44.88
from £44.88
# 006
MPN: 400251052B
REAR SILENCER
from £8,875.55
from £8,875.55
# 012
-
TRIM FOR EXHAUST TAIL PIPE
# 013
MPN: 400253379B
BRACKET
LEFT
from £75.14
from £75.14
# 013
MPN: 400253379B
BRACKET
RIGHT
from £75.14
from £75.14
# 014
MPN: N10155210
HEXAGON NUT
M10
from £1.25
from £1.25
This part replaces part number 008201001
# 015
MPN: WHT000770A
WASHER
from £0.53
from £0.53
# 016
MPN: N0122115
WASHER
11X20X2,5
from £0.50
from £0.50
# 017
MPN: 400251393A
DAMPING ELEMENT
from £151.23
from £151.23
This part replaces part number 004432031 - and 5 more. Click to view details
# 018
MPN: 400253324A
BRACKET
from £158.36
from £158.36
# 019
MPN: N10049308
HEXAGON HEAD BOLT (COMBI)
M8X20
from £1.04
from £1.04
# 023
MPN: 400253323A
BRACKET
from £158.36
from £158.36
# 024
-
TRIM FOR EXHAUST TAIL PIPE
# 026
MPN: N10595002
ROUND HD. SCREW
M5X18
from £0.95
from £0.95
# 027
MPN: N01152322
WASHER
5,3X10X1
from £0.48
from £0.48
# 028
MPN: N0297042
SEALING PLUG
M18X1,5X12
from £6.70
from £6.70
This part replaces part number 400131737
# 029
MPN: N91122801
WASHER
18,5X24X1,5
from £1.93
from £1.93
This part replaces part number 008401819
# 030
MPN: 0R1400213

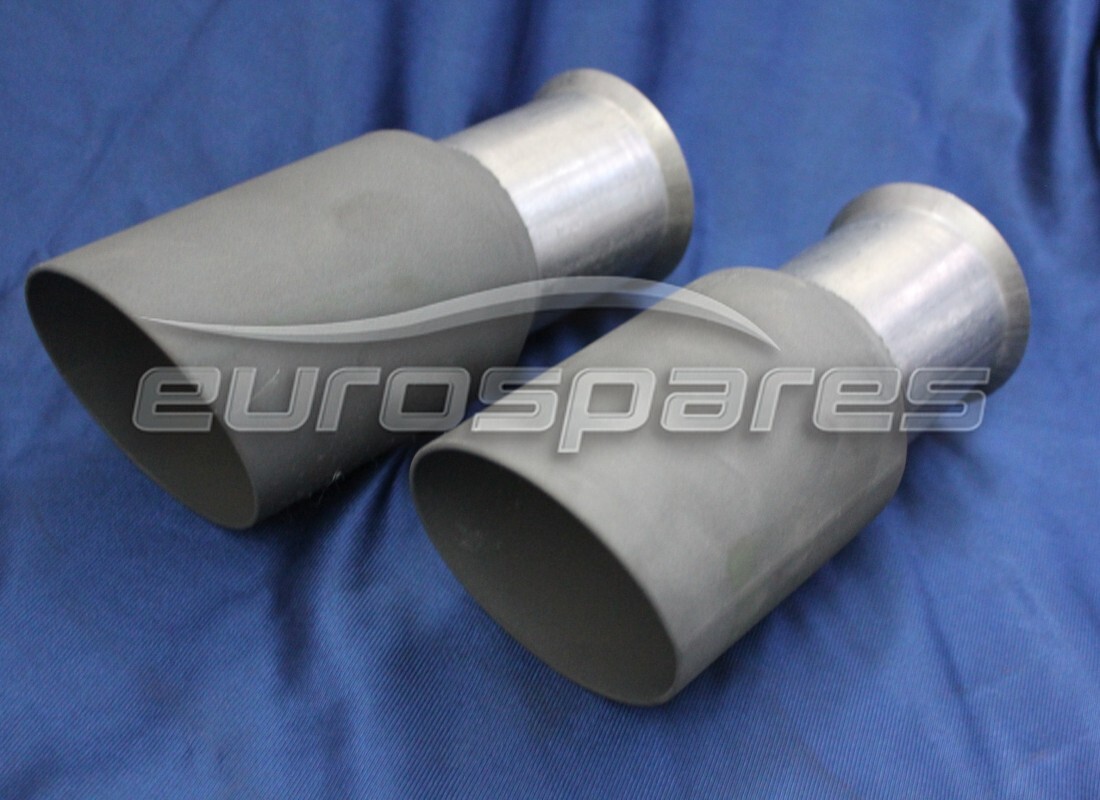

1 TRIM SET FOR EXHAUST TAILPIPES
from £1,266.48
from £1,266.48
