lamborghini superleggera (2008) steering gear parts diagram

422.08.00 - STEERING GEAR

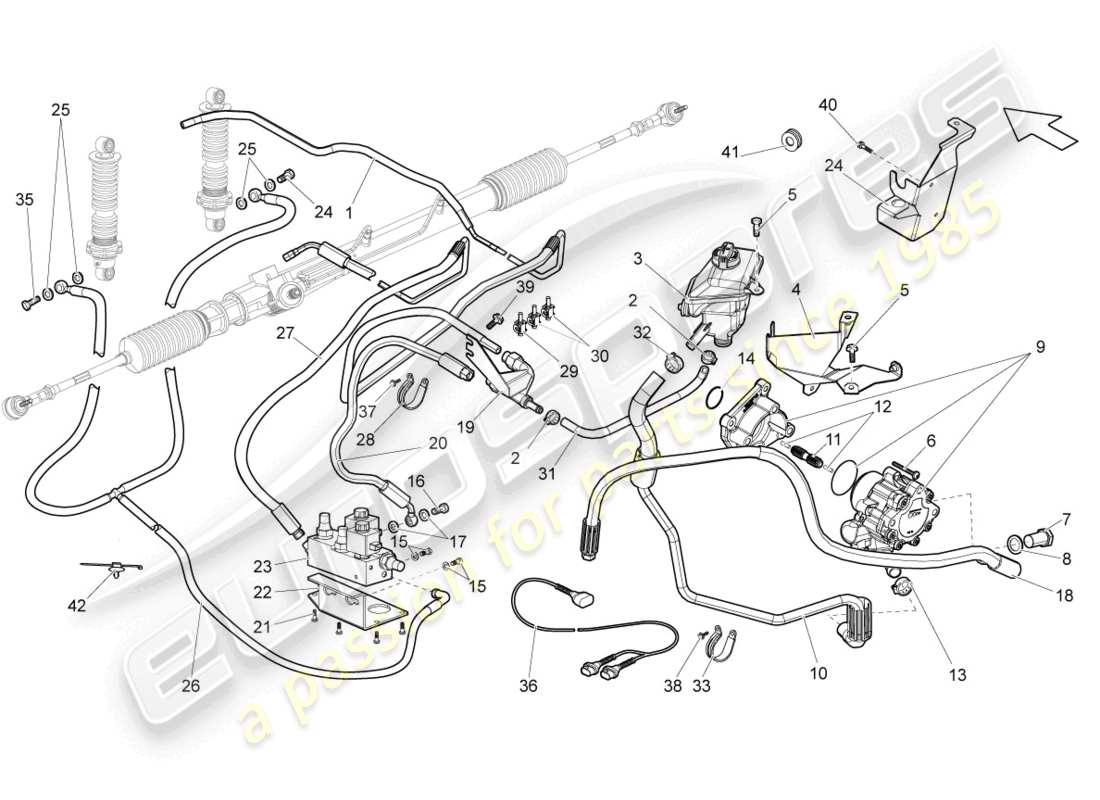

Lamborghini Superleggera (2008) STEERING GEAR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 400422857A
                RETURN HOSE
                OIL RETURN - FROM VIN 6LA3977
                from £382.04
                from £382.04
                RETURN HOSE Genuine Lamborghini - New (to order)
                RETURN HOSE Genuine Lamborghini - Used In stock
                # 002
                MPN: 4B0422379
                SPRING BAND CLAMP
                FROM VIN 6LA3977-16X12
                from £1.56
                from £1.56
                CLIP Genuine Lamborghini - New In stock
                # 003
                MPN: 400422371
                OIL CONTAINER
                FROM VIN 6LA3977
                from £475.21
                from £475.21
                OIL RESERVOIR Genuine Lamborghini - New (to order)
                OIL RESERVOIR Genuine Lamborghini - Used In stock
                # 004
                -
                BRACKET FOR FLUID RESERVOIR
                VALID FOR A DIFFERENT MODEL
                # 005
                MPN: N90749002
                HEXAGON HEAD BOLT (COMBI)
                FROM VIN 6LA3977
                from £0.83
                from £0.83
                HEX.HEAD SCREW W Genuine Lamborghini - New In stock
                # 006
                MPN: N10124303
                OVAL HEXAGON SOCKET HEAD BOLT
                FROM VIN 6LA3977-M6X20
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 007
                MPN: 400422279A
                BANJO BOLT
                FROM VIN 6LA3977
                from £7.03
                from £7.03
                PIPE UNION Genuine Lamborghini - New In stock
                # 008
                MPN: N0138481
                SEAL RING
                FROM VIN 6LA3977-16X22
                from £0.53
                from £0.53
                This part replaces part number 008401621
                WASHER Genuine Lamborghini - New In stock
                SEAL RING - A 16 X 22 Genuine Porsche Part - New (to order)
                # 009
                MPN: 400145153C
                HYDRAULIC PUMP
                FROM VIN 6LA3977
                from £906.75
                from £906.75
                VANE TYPE PUMP Genuine Lamborghini - New (to order)
                # 010
                MPN: 408422890
                RETURN HOSE
                FROM VIN 6LA3977
                from £1,407.26
                from £1,407.26
                RETURN HOSE Genuine Lamborghini - New (to order)
                # 011
                MPN: 057145225D
                INPUT SHAFT
                from £35.02
                from £35.02
                DRIVE SHAFT Genuine Lamborghini - New In stock
                # 012
                MPN: 079145115B
                STOP BUFFER
                from £7.62
                from £7.62
                PUFFER Genuine Lamborghini - New (to order)
                # 013
                MPN: N10418001
                CLAMP
                FROM VIN 6LA3977-25,6X7X0,6
                from £0.76
                from £0.76
                CLAMP Genuine Lamborghini - New In stock
                # 014
                MPN: WHT000417
                SEAL RING
                FROM VIN 6LA3977-16,6X2,6
                from £1.69
                from £1.69
                This part replaces part number N0282112 - and 1 more. Click to view details
                SEALING WASHER Genuine Lamborghini - New In stock
                # 015
                MPN: N90520507
                HEXAGON BOLT
                M6X20
                from £2.01
                from £2.01
                HEXAGON FLANGE Genuine Lamborghini - New (to order)
                # 016
                MPN: 400422269A
                BANJO BOLT
                FROM VIN 6LA3977
                from £11.98
                from £11.98
                This part replaces part number 005124347
                HOLLOW SCREW Genuine Lamborghini - New (to order)
                # 017
                MPN: N0138492
                SEAL RING
                FROM VIN 6LA3977-14X20
                from £2.19
                from £2.19
                This part replaces part number 001701906 - and 1 more. Click to view details
                SEALING WASHER Genuine Lamborghini - New In stock
                seal ring - D >> - MJ 1979 Genuine Porsche Part - New (to order)
                # 018
                MPN: 400422973
                EXPANSION HOSE
                FROM VIN 6LA3977
                from £152.43
                from £152.43
                PRESSURE LINE Genuine Lamborghini - New (to order)
                PRESSURE LINE Genuine Lamborghini - Used In stock
                # 019
                MPN: 400422293C
                CONNECTOR UNION
                FROM VIN 6LA3977
                from £69.62
                from £69.62
                HOSE CONNECTION Genuine Lamborghini - New (to order)
                HOSE CONNECTION Genuine Lamborghini - Used In stock
                # 020
                MPN: 400422891F
                RETURN HOSE
                FROM VIN 6LA3977
                from £204.01
                from £204.01
                RETURN HOSE Genuine Lamborghini - New (to order)
                # 021
                MPN: N10335202
                OVAL HEXAGON SOCKET HEAD BOLT
                M6X12
                from £0.61
                from £0.61
                SCREW Genuine Lamborghini - New In stock
                OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                # 022
                MPN: 400616143A
                BRACKET
                from £34.35
                from £34.35
                BRACKET Genuine Lamborghini - New (to order)
                # 023
                MPN: 400412185C
                REGULATING VALVE
                from £7,048.92
                from £7,048.92
                CONTROL VALVE Genuine Lamborghini - New In stock
                # 024
                MPN: 408422493
                BRACKET FOR FLUID RESERVOIR
                FROM VIN 6LA3977
                from £55.29
                from £55.29
                BRACKET Genuine Lamborghini - New (to order)
                # 025
                MPN: 400616817A
                SEAL RING
                10,7X16X1,5
                from £1.90
                from £1.90
                SEAL RING Genuine Lamborghini - New In stock
                # 026
                MPN: 400616733A
                PRESSURE HOSE
                FROM VIN 6LA3977
                from £709.20
                from £709.20
                HOSE Genuine Lamborghini - New (to order)
                # 027
                MPN: 401422893E
                EXPANSION HOSE
                OIL FLOW - FROM VIN 6LA3977- LHD (EUROPE, USA spec vehicles)
                from £597.94
                from £597.94
                HOSE Genuine Lamborghini - New (to order)
                # 027
                MPN: 402422893J
                EXPANSION HOSE
                OIL FLOW - FROM VIN 6LA3977- RHD (UK spec vehicles)
                from £333.11
                from £333.11
                TUBO FLESSIBILE Genuine Lamborghini - New (to order)
                TUBO FLESSIBILE Genuine Lamborghini - Used In stock
                # 028
                MPN: N0206253
                CLAMP
                from £1.28
                from £1.28
                HOLDING CLIP Genuine Lamborghini - New In stock
                # 029
                MPN: 400611799B
                BRACKET
                FROM VIN 6LA3977-12
                from £0.54
                from £0.54
                SUPPORT, HOSE Genuine Lamborghini - New In stock
                # 029
                MPN: 400611799F
                BRACKET
                FROM VIN 6LA3977-8
                from £0.58
                from £0.58
                BRACKET,BRAKE HOSE Genuine Lamborghini - New In stock
                # 030
                MPN: 400611799A
                BRACKET
                FROM VIN 6LA3977-10
                from £0.57
                from £0.57
                SUPPORT, HOSE Genuine Lamborghini - New In stock
                # 031
                MPN: 400422887A
                OIL HOSE
                FROM VIN 6LA3977
                from £35.52
                from £35.52
                SUCTION HOSE Genuine Lamborghini - New (to order)
                SUCTION HOSE Genuine Lamborghini - Used In stock
                # 032
                MPN: N90686901
                SPRING BAND CLAMP
                FROM VIN 6LA3977-23X12
                from £0.67
                from £0.67
                SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
                SPRING CLIP Genuine Porsche Part - New (to order)
                # 033
                MPN: N0206104
                CLAMP
                FROM VIN 6LA3977
                from £1.65
                from £1.65
                RETAINING CLAMP D1-26X15 Genuine Lamborghini - New (to order)
                # 035
                MPN: WHT003303
                BANJO BOLT
                from £7.97
                from £7.97
                This part replaces part number WHT000861
                BANJO BOLT Genuine Lamborghini - New (to order)
                # 036
                MPN: 400971059A
                ADAPTER CABLE LOOM
                FROM VIN 6LA3977
                from £114.19
                from £114.19
                harness Genuine Lamborghini - New (to order)
                # 037
                MPN: N90533002
                HEXAGON HEAD BOLT (COMBI)
                FROM VIN 6LA3977-M6X20
                from £1.19
                from £1.19
                Genuine Lamborghini (no longer available to order)
                BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                # 038
                MPN: N90533002
                HEXAGON HEAD BOLT (COMBI)
                FROM VIN 6LA3977-M6X20
                from £1.19
                from £1.19
                Genuine Lamborghini (no longer available to order)
                BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                # 039
                MPN: N90533002
                HEXAGON HEAD BOLT (COMBI)
                FROM VIN 6LA3977-M6X20
                from £1.19
                from £1.19
                Genuine Lamborghini (no longer available to order)
                BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                # 040
                MPN: N10082911
                HEXAGON HEAD BOLT (COMBI)
                M6X16
                from £0.53
                from £0.53
                HEXAGON HEAD BOLT M6X16-S1-N Genuine Lamborghini - New In stock
                BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                # 041
                MPN: 431129669
                GROMMET
                from £4.52
                from £4.52
                GROMMET Genuine Lamborghini - New (to order)
                # 042
                MPN: N10562301
                CABLE TIES
                4,7X194
                from £0.94
                from £0.94
                CABLE TIE B4.7X194 Genuine Lamborghini - New In stock
