721.01.00 - BRAKE AND ACCEL. LEVER MECH.

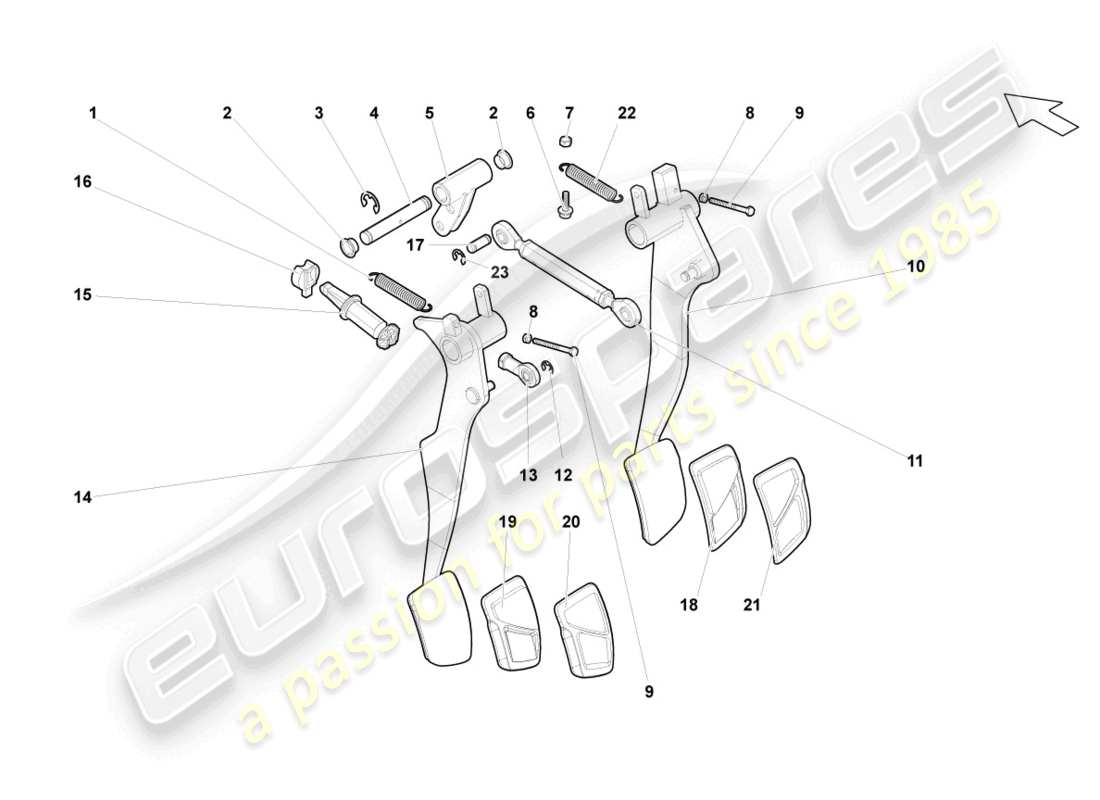

Lamborghini Superleggera (2008) BRAKE AND ACCEL. LEVER MECH. Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 400721363
SPRING
MANUAL GEARBOX
from £4.06
from £4.06
# 002
MPN: 400721389
BUSH
from £20.24
from £20.24
# 003
MPN: N0124402
RETAINING WASHER
12
from £0.53
from £0.53
# 004
MPN: N91024201
PIN
14H7X52X.47
from £5.59
from £5.59
# 005
MPN: 401721313B
LEVER
LHD (EUROPE, USA spec vehicles)
from £199.26
from £199.26
# 005
MPN: 402721313A
LEVER
FOR RHD CARS- RHD (UK spec vehicles)
from £59.48
from £59.48
# 006
MPN: N90833201
HEXAGON BOLT
M6X22
from £0.80
from £0.80
# 007
MPN: N01100625
HEXAGON NUT
M6
Supersession
Supersession
# 008
MPN: N0110051
HEXAGON NUT
M5
from £4.88
from £4.88
# 009
MPN: N10579401
HEXAGON BOLT
M5X40
from £1.80
from £1.80
# 010
MPN: 401721141C
BRAKE PEDAL
FOR LHD CARS- LHD (EUROPE, USA spec vehicles)
from £618.22
from £618.22
# 010
MPN: 402721141C
BRAKE PEDAL
FOR RHD CARS- RHD (UK spec vehicles)
from £309.55
from £309.55
# 011
MPN: 400723323
ADJUSTMENT PART
FOR RHD CARS- RHD (UK spec vehicles)
from £80.61
from £80.61
# 011
MPN: 400723323A
ADJUSTMENT PART
FOR LHD CARS- LHD (EUROPE, USA spec vehicles)
from £146.57
from £146.57
# 012
MPN: N0124361
RETAINING WASHER
from £9.30
from £9.30
# 013
MPN: 400721993A
JOINT HEAD
from £160.82
from £160.82
# 014
MPN: 401721315A
CLUTCH PEDAL
FOR LHD CARS- LHD (EUROPE, USA spec vehicles)
from £755.71
from £755.71
# 014
MPN: 402721315A
CLUTCH PEDAL
FOR RHD CARS- RHD (UK spec vehicles)
from £755.71
from £755.71
# 015
MPN: 1J1721403D
OVER-CENTRE SPRING......
MANUAL GEARBOX
Supersession
Supersession
# 016
MPN: 8Z0721423
SUPPORT
from £3.47
from £3.47
# 017
MPN: N91024101
PIN
10G8X25X18
from £40.67
from £40.67
# 018
MPN: 400721174C
CAP FOR FOOT BRAKE PEDAL
MANUAL GEARBOX
from £195.41
from £195.41
# 019
MPN: 400721173
CLUTCH PEDAL PAD
MANUAL GEARBOX
from £20.85
from £20.85
# 020
MPN: 400721779
COVER
from £370.06
from £370.06
# 021
MPN: 400721780
COVER
from £255.07
from £255.07
# 022
MPN: 400721363A
SPRING
MANUAL GEARBOX
from £6.66
from £6.66
# 023
MPN: N0126481
RETAINING WASHER
MANUAL GEARBOX-8
from £0.53
from £0.53
