lamborghini superleggera (2008) door parts diagram

837.02.00 - DOOR

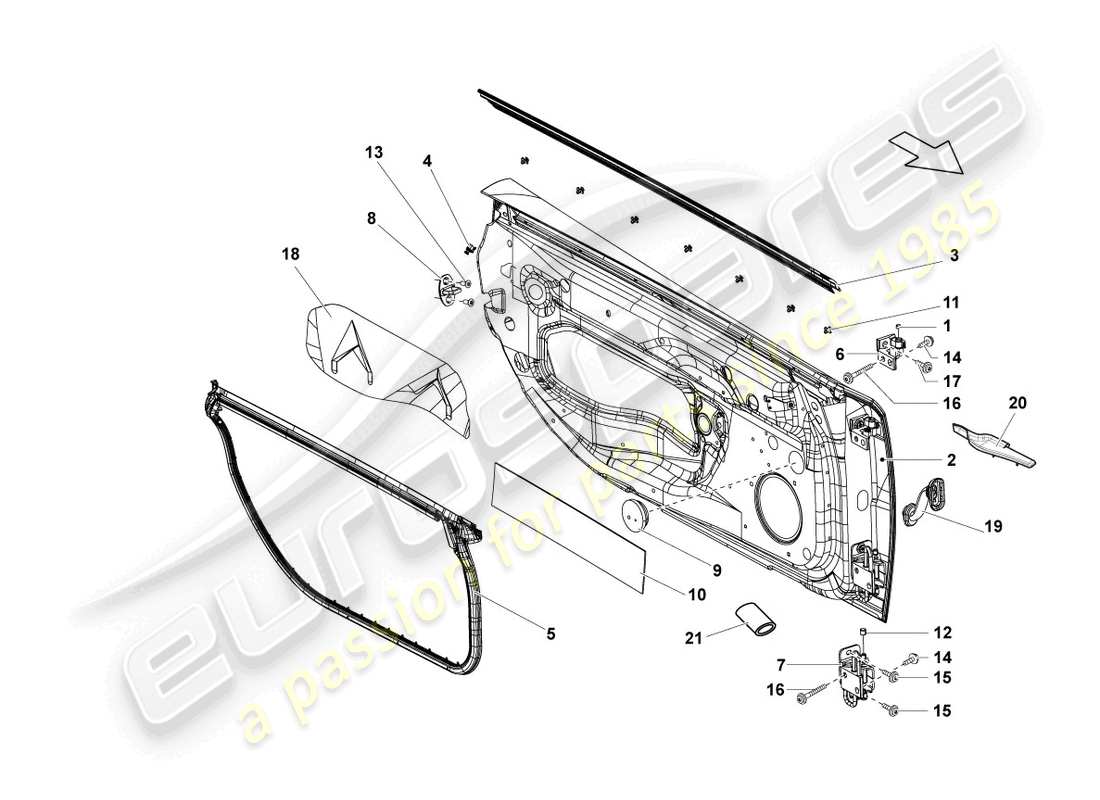

Lamborghini Superleggera (2008) DOOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 1H0837947
        COVER CAP
        Black
        from £0.53
        from £0.53
        CAP Genuine Lamborghini - New In stock
        # 002
        MPN: 400831021
        DOOR
        LEFT
        from £2,467.50
        from £2,467.50
        DOOR Genuine Lamborghini - New (to order)
        DOOR Genuine Lamborghini - Used In stock
        DOOR Genuine Lamborghini - Used In stock
        DOOR Genuine Lamborghini - New (other) In stock
        Valid for LHS - GTR Gallardo - Spec only - Inner cut out
        # 002
        MPN: 400831022
        DOOR
        RIGHT
        from £1,680.00
        from £1,680.00
        RH DOOR ASSY Genuine Lamborghini - New In stock
        RH DOOR ASSY Genuine Lamborghini - Used In stock
        RH DOOR ASSY Genuine Lamborghini - Used In stock
        # 003
        MPN: 400837477A
        WINDOW APERTURE SEAL
        LEFT
        from £90.36
        from £90.36
        WINDOW SLOT SEAL Genuine Lamborghini - New (to order)
        # 003
        MPN: 400837478A
        WINDOW APERTURE SEAL
        RIGHT
        from £90.36
        from £90.36
        WINDOW SLOT SEAL Genuine Lamborghini - New (to order)
        # 004
        MPN: 400837497
        RETAINING RING
        LEFT
        from £3.38
        from £3.38
        CLIP Genuine Lamborghini - New (to order)
        # 004
        MPN: 400837498
        RETAINING RING
        RIGHT
        from £3.38
        from £3.38
        CLIP Genuine Lamborghini - New (to order)
        # 005
        MPN: 400837911C
        DOOR SEAL
        LEFT
        from £106.28
        from £106.28
        DOOR SEAL Genuine Lamborghini - New (to order)
        DOOR SEAL Genuine Lamborghini - Used In stock
        # 005
        MPN: 400837912C
        DOOR SEAL
        RIGHT
        from £193.24
        from £193.24
        DOOR SEAL Genuine Lamborghini - New In stock
        # 006
        MPN: 4E0831401A
        DOOR HINGE
        LEFT UPPER
        from £25.07
        from £25.07
        DOOR HINGE Genuine Lamborghini - New (to order)
        DOOR HINGE Genuine Lamborghini - Used In stock
        # 006
        MPN: 4E0831402A
        DOOR HINGE
        RIGHT UPPER
        from £25.07
        from £25.07
        DOOR HINGE Genuine Lamborghini - New (to order)
        DOOR HINGE Genuine Lamborghini - Used In stock
        # 007
        MPN: 4E0831411C
        DOOR HINGE
        LEFT LOWER
        from £37.09
        from £37.09
        DOOR HINGE Genuine Lamborghini - New (to order)
        DOOR HINGE Genuine Lamborghini - Used In stock
        DOOR HINGE Genuine Lamborghini - Used In stock
        # 008
        MPN: 8E0837033
        LOCK STRIKER
        from £6.57
        from £6.57
        STRIKER LH Genuine Lamborghini - New (to order)
        STRIKER LH Genuine Lamborghini - Used In stock
        striker (8E0837033) Genuine Porsche Part - New (to order)
        # 009
        MPN: 8E0971841E
        GROMMET
        54MM
        from £7.40
        from £7.40
        GROMMET Genuine Lamborghini - New (to order)
        # 010
        MPN: 8L0837805
        SOUND ABSORBER (SELF-ADHESIVE)
        500X100X2,2
        from £2.52
        from £2.52
        COVERING LH Genuine Lamborghini - New (to order)
        # 011
        MPN: 8L3837199B
        CLIP
        from £0.62
        from £0.62
        CLIP Genuine Lamborghini - New (to order)
        # 012
        MPN: 8L3837947
        COVER CAP
        LOWER
        from £0.53
        from £0.53
        CAP SCHARNIER Genuine Lamborghini - New In stock
        # 013
        MPN: N91017401
        COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT
        M8X22
        from £0.78
        from £0.78
        TRIPLE SQUARE OVALM8X22 Genuine Lamborghini - New (to order)
        screw, csk. hd. with polygon (N 91017401) Genuine Porsche Part - New (to order)
        # 014
        MPN: WHT001237
        HEX SOCKET HEAD COLLARED BOLT
        M8X40
        from £0.94
        from £0.94
        HEXALOBULAR SOCKETM8X40 Genuine Lamborghini - New In stock
        # 015
        MPN: WHT001230
        HEXAGON SOCKET HEAD BOLT
        M8X27
        from £2.55
        from £2.55
        This part replaces part number 8L0837453
        HEXALOBULAR SOCKETM8X27 Genuine Lamborghini - New (to order)
        # 016
        MPN: N91060501
        OVAL HEXAGON SOCKET HEAD BOLT
        BM8X130X80-W
        from £32.86
        from £32.86
        HEXALOBULAR SOCKET FLANGE BOLT Genuine Lamborghini - New (to order)
        # 017
        MPN: 8H0831701
        HEX SOCKET HEAD COLLARED BOLT
        M10X34
        from £1.21
        from £1.21
        SCREW Genuine Lamborghini - New In stock
        # 018
        MPN: 400863979
        SOUND ABSORBER FOR DOOR
        LEFT
        from £12.49
        from £12.49
        sound absorber Genuine Lamborghini - New (to order)
        # 018
        MPN: 400863980
        SOUND ABSORBER FOR DOOR
        RIGHT
        from £12.49
        from £12.49
        sound absorber Genuine Lamborghini - New (to order)
        # 019
        MPN: 8P3959845A
        BELLOWS WITH RETAINING FRAME
        LEFT A. RIGHT
        from £5.85
        from £5.85
        BELLOWS Genuine Lamborghini - New (to order)
        # 020
        MPN: 400863051
        COVER
        LEFT
        from £3.38
        from £3.38
        COVER Genuine Lamborghini - New (to order)
        # 020
        MPN: 400863052
        COVER
        RIGHT
        from £3.38
        from £3.38
        COVER Genuine Lamborghini - New (to order)
        # 021
        MPN: 3B0971790
        FOAM TUBE
        from £0.64
        from £0.64
        EXPANDED TUBE Genuine Lamborghini - New In stock
