121.06.00 - COOLANT HOSES AND PIPES

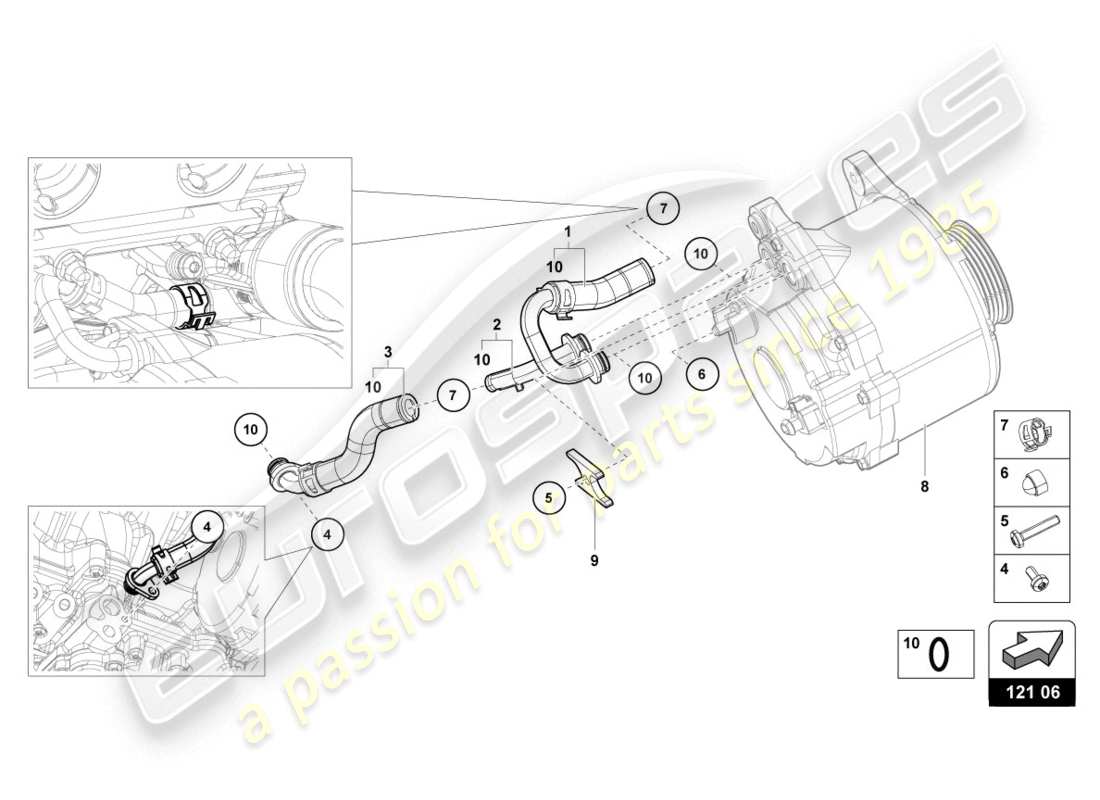

Lamborghini Evo Spyder (2020) COOLANT HOSES AND PIPES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 07L121030B
COOLANT HOSE
from £48.98
from £48.98
# 002
MPN: 07L121131K
PIPE UNION
from £30.44
from £30.44
# 003
MPN: 07L121030C
COOLANT HOSE
M6X14
from £43.04
from £43.04
# 004
MPN: N10451408
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
from £0.92
from £0.92
# 005
MPN: N10156206
OVAL HEXAGON SOCKET HEAD BOLT
M6X30
from £1.06
from £1.06
# 006
MPN: N90403002
COVER CAP
13X14
from £0.77
from £0.77
# 007
MPN: N90926401
SPRING BAND CLAMP
19X12
from £2.33
from £2.33
# 008
-
ALTERNATOR
# 009
MPN: 07C121077H
RETAINING PLATE
from £4.14
from £4.14
# 010
MPN: WHT001011
O-RING
from £2.60
from £2.60
