lamborghini evo spyder (2020) fuel pump parts diagram

133.03.00 - fuel pump

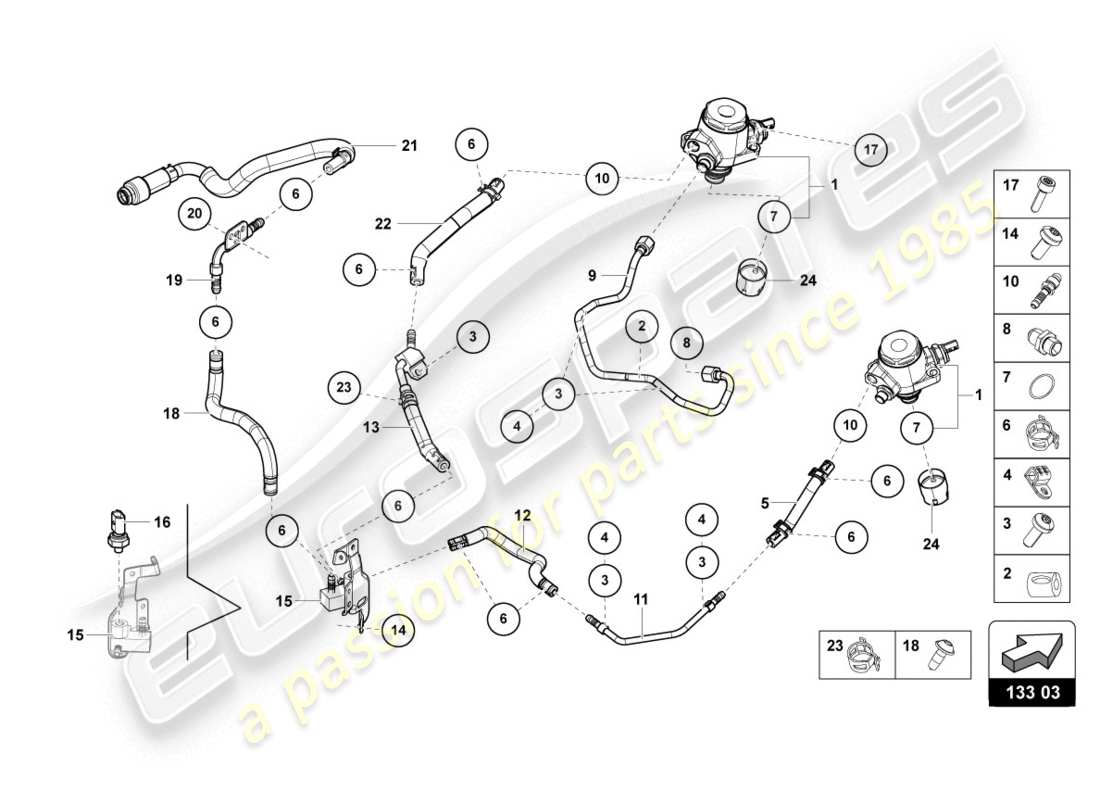

Lamborghini Evo Spyder (2020) FUEL PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 07L127025S
            fuel pump
            HITACHI
            from £403.78
            from £403.78
            This part replaces part number 07L127025F - and 1 more. Click to view details
            # 002
            MPN: 079121129
            SPACER BUSH
            8X18X20
            from £2.09
            from £2.09
            # 003
            MPN: N10451408
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X16
            from £0.95
            from £0.95
            # 004
            MPN: 07L127411E
            RETAINER FOR FUEL LINE
            from £9.08
            from £9.08
            # 005
            MPN: 07L127509BK
            FUEL HOSE
            RIGHT
            from £11.16
            from £11.16
            # 005
            MPN: 07L127509CF
            FUEL HOSE
            C6A-RIGHT
            from £41.68
            from £41.68
            # 006
            MPN: N90986501
            SPRING BAND CLAMP
            14,5X12
            from £1.51
            from £1.51
            # 007
            MPN: WHT005184
            O-RING
            31X2
            from £4.28
            from £4.28
            # 008
            MPN: 07L127065
            ADAPTER
            from £8.17
            from £8.17
            # 009
            MPN: 07L127501BJ
            FUEL LINE
            RIGHT
            from £60.02
            from £60.02
            # 009
            MPN: 07L127501BQ
            FUEL LINE
            LEFT
            from £106.36
            from £106.36
            # 010
            MPN: 06E127065C
            CONNECTOR UNION
            Ø5
            from £6.75
            from £6.75
            # 011
            MPN: 07L127509BR
            FUEL LINE
            RIGHT
            from £26.81
            from £26.81
            # 012
            MPN: 07L127509BE
            FUEL HOSE
            5 LAYER-RIGHT
            from £18.33
            from £18.33
            # 012
            MPN: 07L127509CG
            FUEL HOSE
            C6A-RIGHT
            from £55.60
            from £55.60
            # 013
            MPN: 07L127509CD
            FUEL HOSE
            LEFT
            from £119.32
            from £119.32
            # 013
            MPN: 07L127509CH
            FUEL HOSE
            C6A-LEFT REAR
            from £176.39
            from £176.39
            # 014
            MPN: N10405604
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X14
            from £0.86
            from £0.86
            # 015
            MPN: 07L127503AE
            Fuel Rail
            CENTRE/REAR
            from £68.92
            from £68.92
            # 016
            MPN: 06E906051K
            LOW-PRESSURE SENSOR
            from £71.60
            from £71.60
            # 017
            MPN: N91076601
            SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
            M8X30-M8X30
            from £1.96
            from £1.96
            # 018
            MPN: 07L127509AN
            FUEL HOSE
            LEFT
            from £63.73
            from £63.73
            # 018
            MPN: 07L127509CK
            FUEL HOSE
            C6A-LEFT REAR
            from £83.44
            from £83.44
            # 019
            MPN: 07L127503AC
            Fuel Rail
            from £37.49
            from £37.49
            # 020
            MPN: N90925202
            HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING
            6X16
            from £0.53
            from £0.53
            # 021
            MPN: 07L201215A
            FUEL LINE
            from £27.06
            from £27.06
            # 021
            MPN: 07L201215C
            FUEL LINE
            C6A
            from £47.91
            from £47.91
            # 022
            MPN: 07L127509CS
            FUEL HOSE
            EMISSION STANDARD CSA-LEFT REAR
            from £16.48
            from £16.48
            # 022
            MPN: 07L127509DG
            FUEL HOSE
            5 LAYER-LEFT
            from £19.89
            from £19.89
            This part replaces part number 07L127509BQ
            # 023
            MPN: N91020301
            SPRING BAND CLAMP
            14,5X12
            from £1.32
            from £1.32
            # 024
            MPN: 06L109311
            TAPPETS
            from £34.67
            from £34.67
