lamborghini evo spyder (2020) silencer parts diagram

253.05.00 - SILENCER

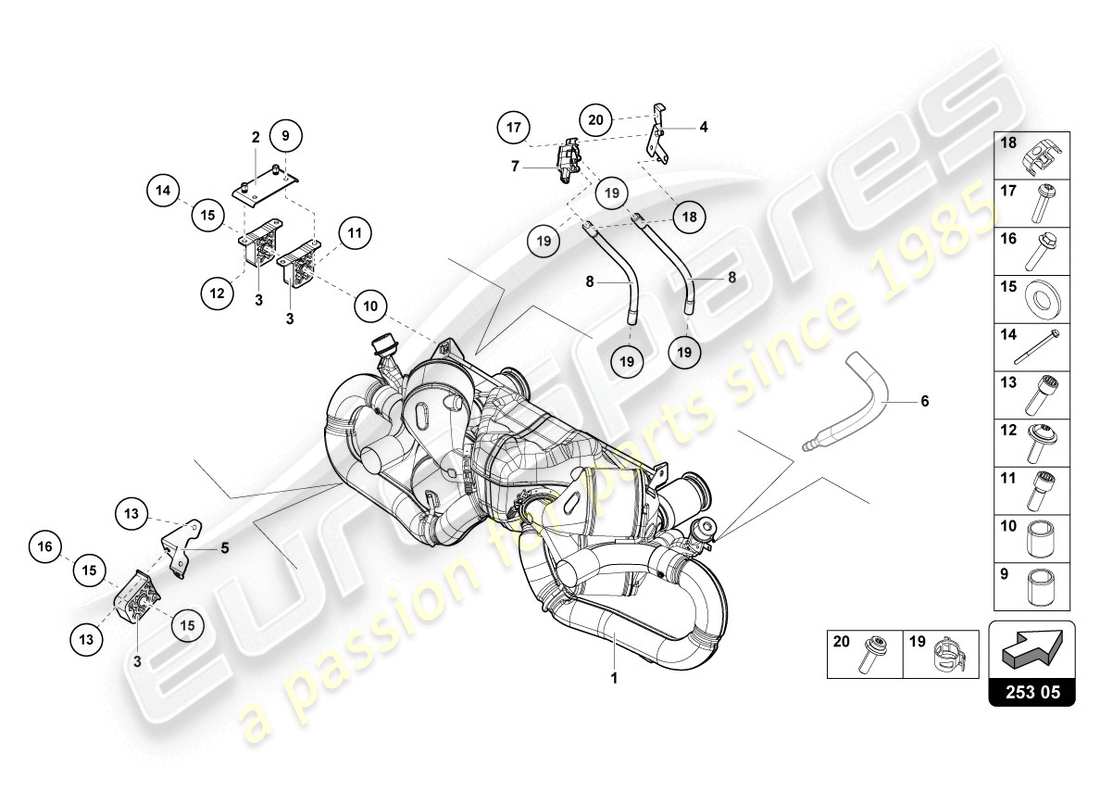

Lamborghini Evo Spyder (2020) SILENCER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 4T0251051F
REAR SILENCER
SPORTS VERSION (EUROPE spec vehicles)
from £12,623.78
from £12,623.78
MUFFLER SOUND MUFFLER Genuine Lamborghini - New (to order)
# 002
MPN: 4T0251277
BRACKET
(EUROPE spec vehicles)
from £21.70
from £21.70
BRACKET BRACKET OPF Genuine Lamborghini - New (to order)
# 003
MPN: 420251305
RETAINER FOR EXHAUST SYSTEM
(EUROPE spec vehicles)
from £8.51
from £8.51
BRACKET SDH Genuine Lamborghini - New (to order)
BRACKET SDH Genuine Lamborghini - Used In stock
# 004
MPN: 4T0131535
BRACKET
LEFT (EUROPE spec vehicles)
from £22.75
from £22.75
BRACKET Genuine Lamborghini - New (to order)
# 004
MPN: 4T0131536
BRACKET
RIGHT (EUROPE spec vehicles)
from £22.75
from £22.75
BRACKET Genuine Lamborghini - New (to order)
# 005
MPN: 4T0251529
BRACKET
LEFT (EUROPE spec vehicles)
from £34.42
from £34.42
BRACKET Genuine Lamborghini - New (to order)
# 005
MPN: 4T0251530
BRACKET
RIGHT (EUROPE spec vehicles)
from £34.42
from £34.42
BRACKET Genuine Lamborghini - New (to order)
# 007
MPN: 057906051H
PRESSURE DIFFERENCE SENDER
(EUROPE spec vehicles)
from £140.94
from £140.94
PRESSURE SENSOR OPF ANALOG Genuine Lamborghini - New (to order)
# 008
MPN: 470131850
VACUUM HOSE
(EUROPE spec vehicles)
from £70.12
from £70.12
HOSE Genuine Lamborghini - New (to order)
# 009
MPN: 4T0251198
SPACER SLEEVE
20MM (EUROPE spec vehicles)
from £8.39
from £8.39
SLEEVE Genuine Lamborghini - New (to order)
# 010
MPN: 4T0251198A
SPACER SLEEVE
20MM (EUROPE spec vehicles)
from £30.26
from £30.26
SLEEVE Genuine Lamborghini - New (to order)
# 011
MPN: N10619001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X20 (EUROPE spec vehicles)
from £1.21
from £1.21
TRIPLE SQUARE BOLTM8X20 Genuine Lamborghini - New (to order)
# 012
MPN: N91124501
HEXAGON SOCKET HEAD BOLT
M8X40 (EUROPE spec vehicles)
from £3.77
from £3.77
TRIPLE SQUARE BOLT M8X40 Genuine Lamborghini - New (to order)
# 013
MPN: N91005902
HEXAGON SOCKET HEAD BOLT
M8X25 (EUROPE spec vehicles)
from £1.80
from £1.80
12-POINT SOCKET Genuine Lamborghini - New In stock
hexagonal socket head (N 91005902) Genuine Porsche Part - New (to order)
# 014
MPN: N10514503
HEX COLLARED BOLT
M10X135X45 (EUROPE spec vehicles)
from £4.67
from £4.67
HEXAGON FLANGE BM10X135X45 Genuine Lamborghini - New (to order)
# 015
MPN: N01152721
WASHER
(EUROPE spec vehicles)
from £1.03
from £1.03
WASHER 10.5X21X2 Genuine Lamborghini - New In stock
# 016
MPN: N10699401
HEXAGON BOLT
M10X50 (EUROPE spec vehicles)
from £2.23
from £2.23
HEXAGON FLANGE Genuine Lamborghini - New In stock
screw, hex. hd. (N 10699401) Genuine Porsche Part - New (to order)
# 017
MPN: N91071702
HEXAGON SOCKET FLAT HEAD BOLT
M6X25 (EUROPE spec vehicles)
from £0.80
from £0.80
SCREW Genuine Lamborghini - New In stock
Hexagon socket flat (N 91071702) Genuine Porsche Part - New (to order)
# 018
MPN: WHT007936
HOSE BRACKET
(EUROPE spec vehicles)
from £1.47
from £1.47
LINE BRACKET CT5-12/12 Genuine Lamborghini - New (to order)
# 019
MPN: 3C0131483A
SPRING BAND CLAMP
13,5X12 (EUROPE spec vehicles)
from £1.87
from £1.87
CLIP Genuine Lamborghini - New In stock
# 020
MPN: N10569502
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
M5X16 (EUROPE spec vehicles)
from £0.54
from £0.54
HEXALOBULAR SOCKETM5X16 Genuine Lamborghini - New (to order)
