lamborghini evo spyder (2020) rear lid parts diagram

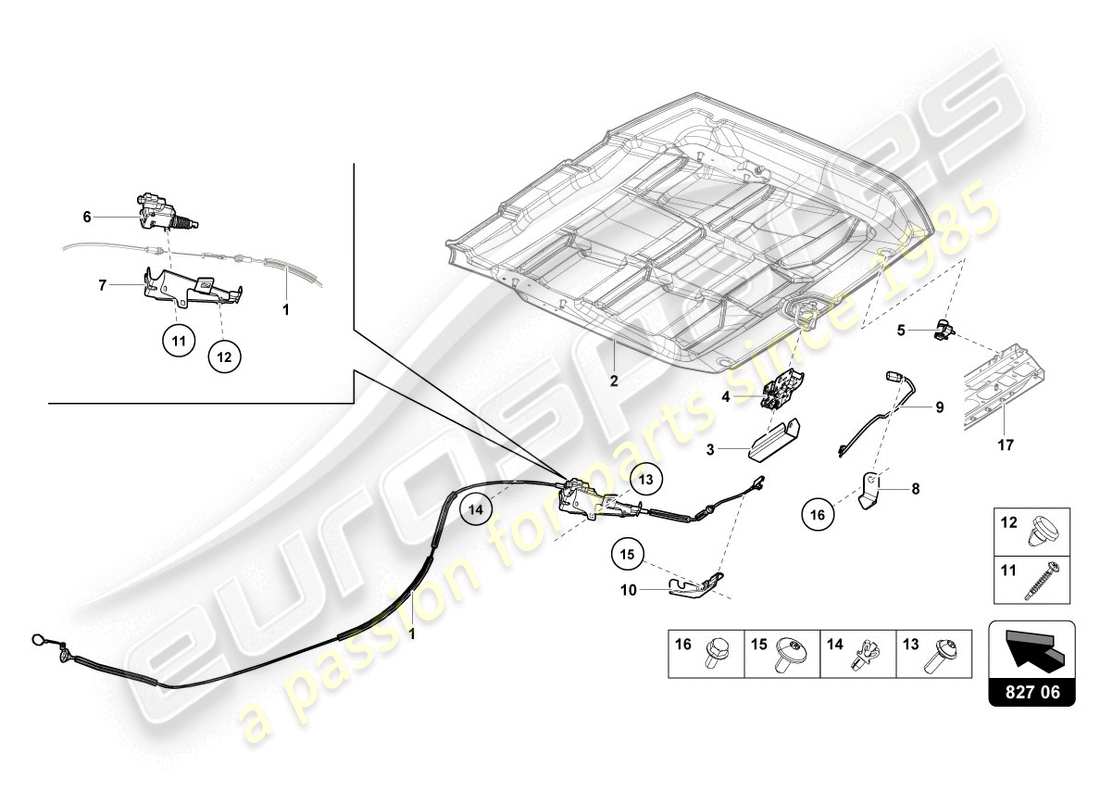

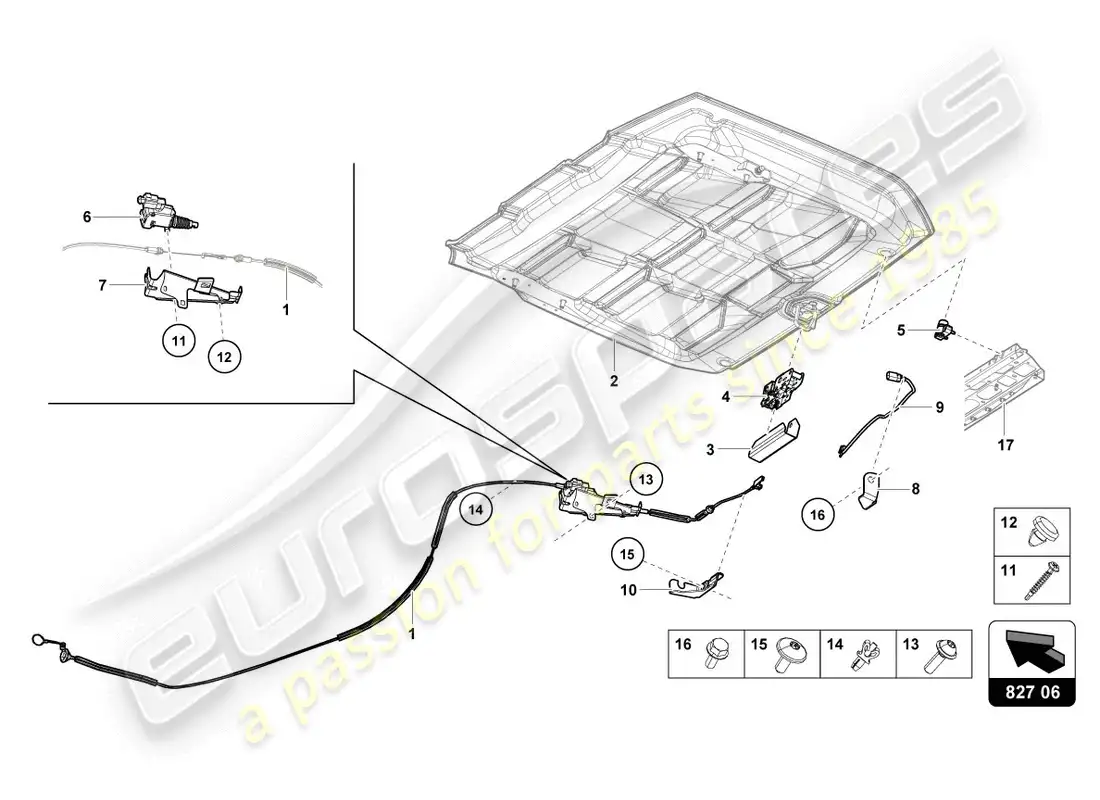

827.06.00 - REAR LID

Lamborghini Evo Spyder (2020) REAR LID Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 4T7827531B
                    BOWDEN CABLE
                    from £66.10
                    from £66.10
                    BOWDEN CABLE Genuine Lamborghini - New (to order)
                    BOWDEN CABLE Genuine Lamborghini - Used In stock
                    # 002
                    -
                    REAR LID
                    # 003
                    MPN: 470825099
                    HEAT SHIELD
                    from £29.68
                    from £29.68
                    HEAT SHIELD Genuine Lamborghini - New (to order)
                    HEAT SHIELD Genuine Lamborghini - Used In stock
                    # 004
                    MPN: 1K1823509E
                    BONNET LOCK-LOWER PART
                    from £32.77
                    from £32.77
                    HOOD LATCH Genuine Lamborghini - New In stock
                    HOOD LATCH Genuine Lamborghini - Used In stock
                    Genuine Porsche Part (no longer available to order)
                    # 005
                    MPN: 8P4827239B
                    STOP BUFFER
                    from £2.90
                    from £2.90
                    ADJUSTING BUFFER Genuine Lamborghini - New (to order)
                    ADJUSTING BUFFER Genuine Lamborghini - Used In stock
                    # 006
                    MPN: 420810773
                    THROTTLE CONTROL ELEMENT
                    from £78.60
                    from £78.60
                    CONTROL ELEMENT TANKKLAPPE Genuine Lamborghini - New (to order)
                    # 007
                    MPN: 4T7827606A
                    ARM
                    from £16.18
                    from £16.18
                    RETAINING PART Genuine Lamborghini - New (to order)
                    RETAINING PART Genuine Lamborghini - Used In stock
                    # 008
                    MPN: 4T0971303A
                    BRACKET
                    from £11.63
                    from £11.63
                    BRACKET CONN.SERRAT.POST. Genuine Lamborghini - New (to order)
                    # 009
                    -
                    CONTACT SWITCH
                    # 010
                    MPN: 4T7827909
                    BRACKET
                    from £14.92
                    from £14.92
                    BRACKET Genuine Lamborghini - New (to order)
                    # 011
                    MPN: N90739704
                    PANEL SCREW
                    from £0.57
                    from £0.57
                    SCREW TP5X22-Q Genuine Lamborghini - New In stock
                    tapping screw (N 90739704) Genuine Porsche Part - New (to order)
                    # 012
                    MPN: 470861147
                    STOP BUFFER
                    4,5X2,2X8,6
                    from £8.70
                    from £8.70
                    This part replaces part number N91092001
                    CATCH Genuine Lamborghini - New (to order)
                    # 013
                    MPN: N10558102
                    SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                    M6X18
                    from £2.55
                    from £2.55
                    HEXALOBULAR SOCKET HEAD BOLT Genuine Lamborghini - New In stock
                    # 014
                    MPN: N90997501
                    HOSE BRACKET
                    6/4,8-6 BLACK
                    from £0.53
                    from £0.53
                    HOSE SUPPORT 6 Genuine Lamborghini - New In stock
                    bracket for hose (N 90997501) Genuine Porsche Part - New (to order)
                    # 015
                    MPN: N90643905
                    HEXAGON HEAD BOLT (COMBI)
                    M8X25
                    from £1.42
                    from £1.42
                    HEXAGON HEAD BOLT M8X25-S1 Genuine Lamborghini - New In stock
                    bolt, hex. hd. (combi.) (N 90643905) Genuine Porsche Part - New (to order)
                    # 016
                    MPN: N10653201
                    HEX COLLARED BOLT
                    M6X16
                    from £1.36
                    from £1.36
                    HEXAGON FLANGE M6X16 Genuine Lamborghini - New In stock
                    bolt, hex. hd. with shoulder (N 10653201) Genuine Porsche Part - New (to order)
                    # 017
                    -
                    CROSS MEMBER
