lamborghini evo spyder (2020) wing protector parts diagram

853.07.00 - WING PROTECTOR

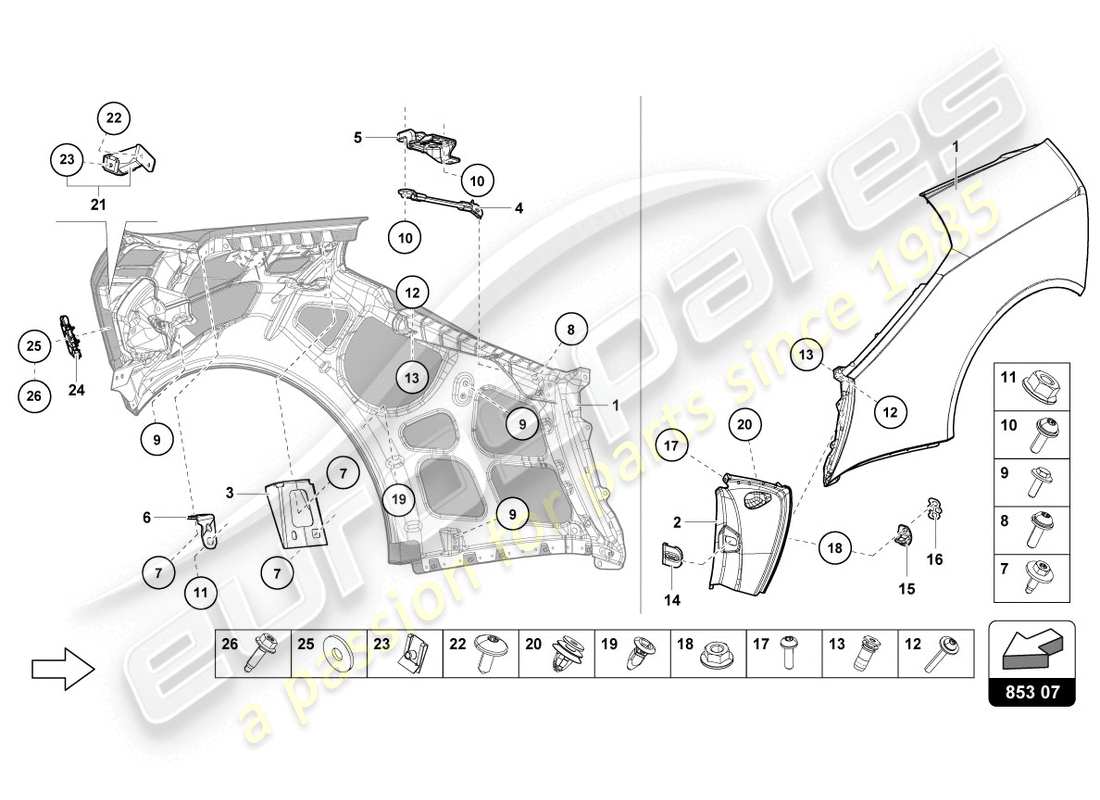

Lamborghini Evo Spyder (2020) WING PROTECTOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 001
              MPN: 4T7809601B
              SIDE PART
              CONTACT YOUR AREA MANAGER-LEFT
              from £6,493.47
              from £6,493.47
              LH SIDE PANEL Genuine Lamborghini - New (to order)
              # 001
              MPN: 4T7809602C
              SIDE PART
              CONTACT YOUR AREA MANAGER-RIGHT
              from £840.00
              from £840.00
              SIDE PANEL Genuine Lamborghini - New (to order)
              SIDE PANEL Genuine Lamborghini - Used In stock
              SIDE PANEL Genuine Lamborghini - New (other) In stock
              new painted
              # 002
              MPN: 4T7853173A
              TRIM
              LEFT
              from £262.03
              from £262.03
              TRIM, FENDER B PILLAR Genuine Lamborghini - New (to order)
              TRIM, FENDER B PILLAR Genuine Lamborghini - Used In stock
              # 002
              MPN: 4T7853174A
              TRIM
              RIGHT
              from £192.60
              from £192.60
              TRIM, FENDER B PILLAR Genuine Lamborghini - New (to order)
              TRIM, FENDER B PILLAR Genuine Lamborghini - Used In stock
              # 003
              MPN: 4T7809075B
              BRACKET
              from £28.15
              from £28.15
              BRACKET SEITENTEIL Genuine Lamborghini - New (to order)
              # 004
              MPN: 4T7809821B
              SUPPORT
              LEFT
              from £89.06
              from £89.06
              EXTENSION ADDED ON REAR FENDER Genuine Lamborghini - New (to order)
              # 004
              MPN: 4T7809822B
              SUPPORT
              RIGHT
              from £89.06
              from £89.06
              EXTENSION ADDED ON REAR FENDER Genuine Lamborghini - New (to order)
              # 005
              MPN: 4T7821129C
              BRACKET FOR WHEEL HOUSING
              LEFT
              from £20.97
              from £20.97
              BRACKET,WHEEL Genuine Lamborghini - New (to order)
              BRACKET,WHEEL Genuine Lamborghini - Used In stock
              # 005
              MPN: 4T7821130C
              BRACKET FOR WHEEL HOUSING
              RIGHT
              from £20.97
              from £20.97
              BRACKET,WHEEL Genuine Lamborghini - New (to order)
              BRACKET,WHEEL Genuine Lamborghini - Used In stock
              # 006
              MPN: 4T0809465B
              RETAINING PLATE
              LEFT
              from £4.66
              from £4.66
              ANGLE BRACKET Genuine Lamborghini - New (to order)
              ANGLE BRACKET Genuine Lamborghini - Used In stock
              # 006
              MPN: 4T0809466B
              RETAINING PLATE
              RIGHT
              from £8.48
              from £8.48
              ANGLE BRACKET Genuine Lamborghini - New (to order)
              # 007
              MPN: N10009209
              HEXAGON HEAD BOLT (COMBI)
              M6X20
              from £0.61
              from £0.61
              HEXAGON HEAD BOLT M6X20-S1-L Genuine Lamborghini - New (to order)
              bolt, hex. hd. (combi.) (N 10009209) Genuine Porsche Part - New (to order)
              # 007
              MPN: N10009507
              HEXAGON HEAD BOLT (COMBI)
              M6X18
              from £0.51
              from £0.51
              HEXAGON HEAD BOLT M6X18 S1-L Genuine Lamborghini - New In stock
              # 008
              -
              HEXAGON HEAD BOLT (COMBI)
              # 009
              MPN: N10009209
              HEXAGON HEAD BOLT (COMBI)
              M6X20
              from £0.60
              from £0.60
              HEXAGON HEAD BOLT M6X20-S1-L Genuine Lamborghini - New (to order)
              bolt, hex. hd. (combi.) (N 10009209) Genuine Porsche Part - New (to order)
              # 010
              -
              HEXAGON HEAD BOLT (COMBI)
              # 011
              MPN: N01508210
              HEXAGON COLLAR NUT
              M6
              from £1.21
              from £1.21
              HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
              Genuine Porsche Part (no longer available to order)
              # 012
              MPN: N10442204
              HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
              M6X40
              from £1.21
              from £1.21
              HEXALOBULAR SOCKETM6X40-S11-L Genuine Lamborghini - New In stock
              # 013
              MPN: 8H0806221
              COMPENSATING PIECE
              from £5.15
              from £5.15
              ADJUSTMENT PART Genuine Lamborghini - New In stock
              # 014
              MPN: 4T0831713
              SEAL
              from £3.50
              from £3.50
              SEALING PIECE Genuine Lamborghini - New In stock
              SEALING PIECE Genuine Lamborghini - Used In stock
              # 017
              MPN: 470853883A
              SECURING BRACKET
              LEFT
              from £38.13
              from £38.13
              ANGLE BRACKET REGOLAB.SIDE PAN. Genuine Lamborghini - New (to order)
              # 018
              MPN: N91017401
              COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT
              M8X22
              from £1.04
              from £1.04
              TRIPLE SQUARE OVALM8X22 Genuine Lamborghini - New (to order)
              screw, csk. hd. with polygon (N 91017401) Genuine Porsche Part - New (to order)
              # 019
              MPN: N90821401
              EXPANDING NUT
              4,8X19,6
              from £0.83
              from £0.83
              EXPANSION NUT DST4.8X19.6 Genuine Lamborghini - New In stock
              expanding nut (N 90821401) Genuine Porsche Part - New (to order)
              # 020
              MPN: 4T7898011
              FASTENING CLIP
              from £35.11
              from £35.11
              FASTENING CLIP Genuine Lamborghini - New In stock
              # 021
              MPN: 4T0807591A
              ARM
              LEFT
              from £12.35
              from £12.35
              This part replaces part number 4T0807591 - and 1 more. Click to view details
              BRACKET FIX GRIGLIA SX Genuine Lamborghini - New (to order)
              BRACKET FIX GRIGLIA SX Genuine Lamborghini - Used In stock
              # 021
              MPN: 4T0807592A
              ARM
              RIGHT
              from £12.35
              from £12.35
              BRACKET FIX GRIGLIA DX Genuine Lamborghini - New (to order)
              BRACKET FIX GRIGLIA DX Genuine Lamborghini - Used In stock
              # 022
              MPN: N91042302
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X16
              from £0.63
              from £0.63
              HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New In stock
              Oval hexagon socket head bolt (N 91042302) Genuine Porsche Part - New In stock
              # 023
              MPN: N90981701
              SPEED NUT
              INCLUDED IN REF.32-M5X21.0X15.3
              from £0.58
              from £0.58
              SPEED NUT M5X21X15.3 Genuine Lamborghini - New In stock
              speed nut (N 90981701) Genuine Porsche Part - New (to order)
              # 024
              MPN: 4T0807985B
              BRACKET
              LEFT
              from £5.09
              from £5.09
              This part replaces part number 4T0807985 - and 1 more. Click to view details
              SUPPORT PART Genuine Lamborghini - New In stock
              SUPPORT PART Genuine Lamborghini - Used In stock
              # 024
              MPN: 4T0807986B
              BRACKET
              RIGHT
              from £5.07
              from £5.07
              This part replaces part number 4T0807986
              SUPPORT PART Genuine Lamborghini - New In stock
              # 025
              MPN: N01166623
              WASHER
              6,4X18X1,6
              from £0.94
              from £0.94
              This part replaces part number WHT000909
              WASHER Genuine Lamborghini - New In stock
              # 026
              MPN: N91206801
              HEXAGON FLANGE SCREW
              M6X22
              from £0.84
              from £0.84
              DUO HEXAGON FLANGEM6X22 Genuine Lamborghini - New In stock
