lamborghini evo spyder (2020) backrest parts diagram

881.02.00 - BACKREST

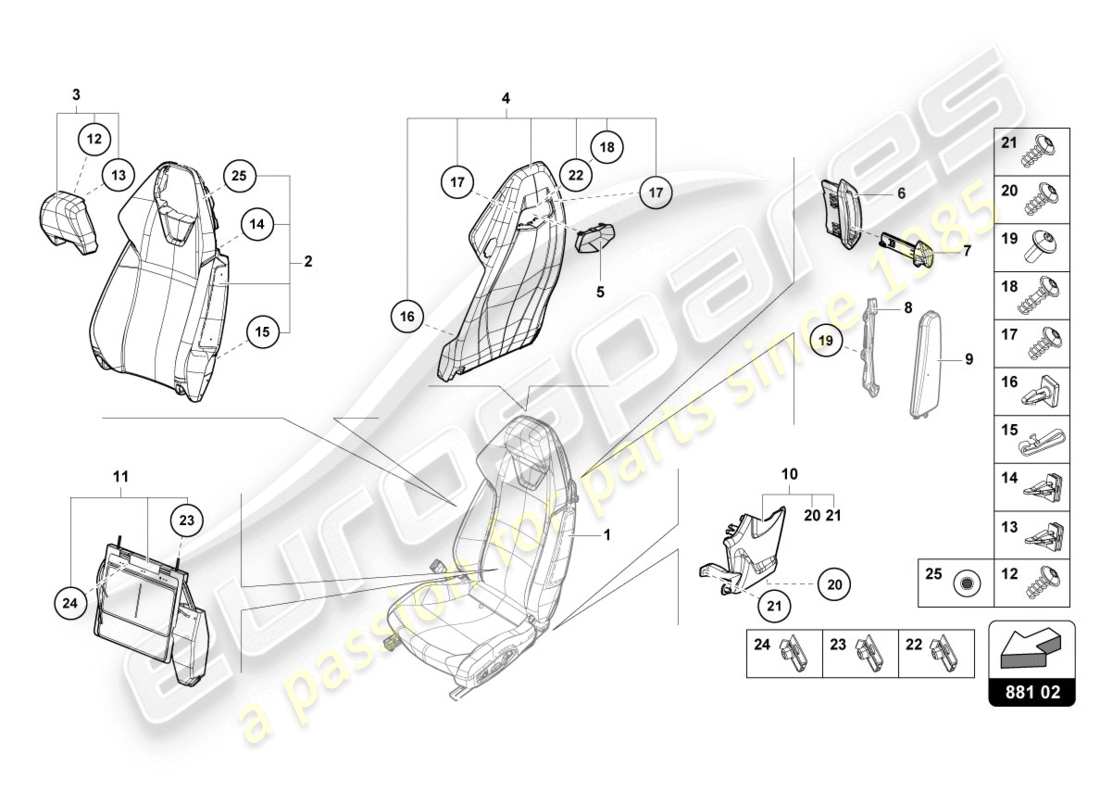

Lamborghini Evo Spyder (2020) BACKREST Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        -
                        SEAT
                        # 002
                        MPN: 4T7881805
                        SEAT BACK TRIM
                        FULL ELECTRIC - SUPPLY VIN-LEFT ELECTRIC
                        from £2,957.07
                        from £2,957.07
                        # 002
                        MPN: 4T7881806
                        SEAT BACK TRIM
                        FULL ELECTRIC - SUPPLY VIN-RIGHT ELECTRIC
                        from £2,957.07
                        from £2,957.07
                        # 003
                        MPN: 4T0881901
                        HEAD RESTRAINT WITH COVER
                        WITH LOGO EMBOSSED - SUPPLY VIN
                        from £424.55
                        from £424.55
                        # 003
                        MPN: 4T0881901A
                        HEAD RESTRAINT WITH COVER
                        SUPPLY VIN
                        from £484.20
                        from £484.20
                        # 003
                        MPN: 4T0881901B
                        HEAD RESTRAINT WITH COVER
                        EMBROIDERED Lamborghini SHIELD WITHOUT PIPING - SUPPLY VIN
                        from £591.43
                        from £591.43
                        # 004
                        MPN: 4T0898039E
                        SEAT BACK TRIM
                        SUPPLY VIN-LEFT REAR
                        from £1,309.94
                        from £1,309.94
                        # 004
                        MPN: 4T0898040E
                        SEAT BACK TRIM
                        SUPPLY VIN-RIGHT REAR
                        from £1,353.17
                        from £1,353.17
                        # 005
                        MPN: 4T0881607
                        TRIM
                        from £26.20
                        from £26.20
                        # 006
                        MPN: 4T0898039D
                        TRIM
                        LEFT
                        from £10.38
                        from £10.38
                        # 006
                        MPN: 4T0898040D
                        TRIM
                        RIGHT
                        from £10.38
                        from £10.38
                        # 007
                        MPN: 4T0881605
                        LEVER FOR FOLDING BACKREST
                        LEFT
                        from £8.13
                        from £8.13
                        # 007
                        MPN: 4T0881606
                        LEVER FOR FOLDING BACKREST
                        RIGHT
                        from £8.13
                        from £8.13
                        # 008
                        -
                        ARM
                        # 008
                        -
                        ARM
                        # 009
                        -
                        AIRBAG
                        # 010
                        MPN: 4T0898039
                        SEAT PAD
                        PAINTED-LEFT
                        from £21.97
                        from £21.97
                        # 010
                        MPN: 4T0898039A
                        SEAT PAD
                        WRAPPED-LEFT
                        from £236.92
                        from £236.92
                        # 010
                        MPN: 4T0898040
                        SEAT PAD
                        PAINTED-RIGHT
                        from £21.97
                        from £21.97
                        # 010
                        MPN: 4T0898040A
                        SEAT PAD
                        WRAPPED-RIGHT
                        from £236.92
                        from £236.92
                        # 011
                        MPN: 4T0881879A
                        LUMBAR SUPPORT WITH ADJUSTMENT MOTOR
                        from £259.40
                        from £259.40
                        # 012
                        MPN: 4T0898400
                        HEXAGON BOLT
                        from £1.01
                        from £1.01
                        # 013
                        MPN: 4T0898400D
                        FASTENING CLIP
                        from £3.38
                        from £3.38
                        # 014
                        MPN: 4T0898400E
                        FASTENING CLIP
                        from £0.83
                        from £0.83
                        # 015
                        MPN: 4T0898400F
                        FASTENING CLIP
                        from £0.83
                        from £0.83
                        # 016
                        MPN: 4T0898400G
                        FASTENING CLIP
                        from £3.38
                        from £3.38
                        # 017
                        MPN: 4T0898400H
                        HEXAGON BOLT
                        from £4.50
                        from £4.50
                        # 018
                        -
                        HEXAGON BOLT
                        # 019
                        MPN: 4T0898627
                        HEXAGON BOLT
                        M6X10
                        from £2.25
                        from £2.25
                        # 020
                        MPN: 4T0898400B
                        HEXAGON BOLT
                        from £0.54
                        from £0.54
                        # 021
                        MPN: 4T0898400A
                        HEXAGON BOLT
                        from £0.68
                        from £0.68
                        # 022
                        -
                        CLIP NUT
                        # 023
                        -
                        SUPPORT SPRING
                        # 024
                        -
                        Retaining Clip
                        # 025
                        MPN: 4T0898025
                        button
                        from £19.50
                        from £19.50
