lamborghini evo spyder 2wd (2020) engine oil sump parts diagram

103.01.00 - engine oil sump

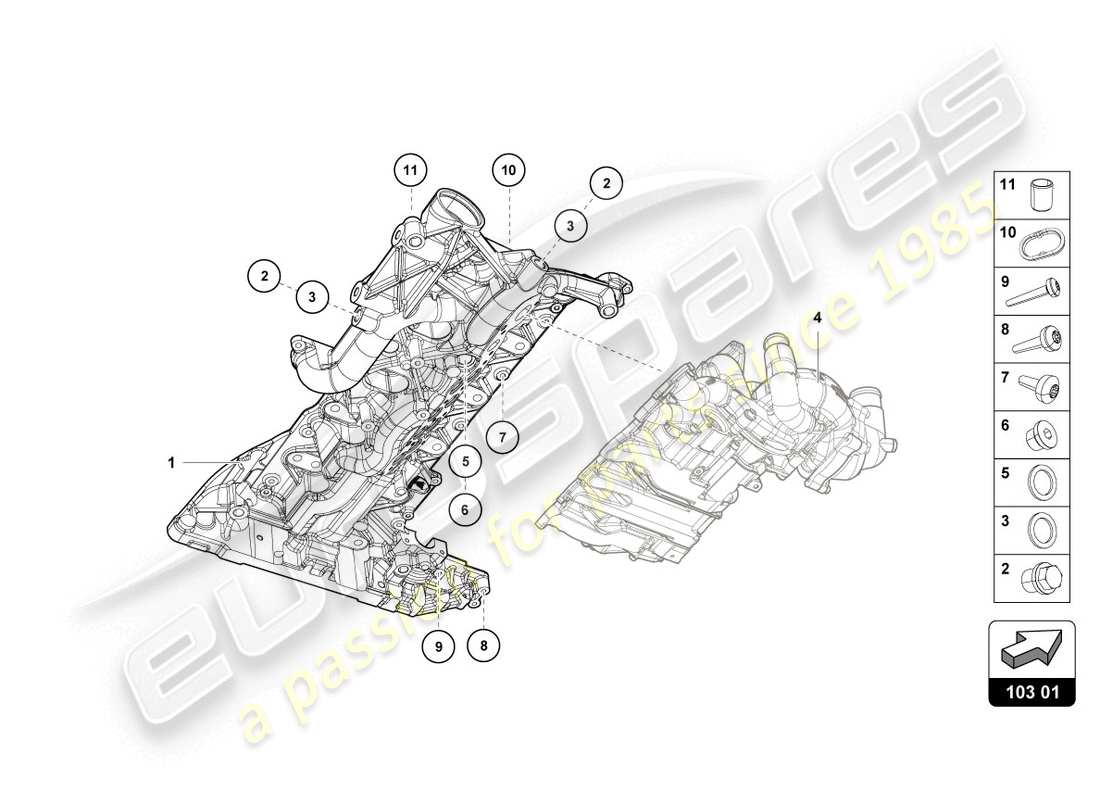

Lamborghini Evo Spyder 2WD (2020) ENGINE OIL SUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 07L103601F
    engine oil sump
    INCLUDES REF 2,3
    from £1,811.43
    from £1,811.43
    # 002
    MPN: N0297014
    OIL DRAIN PLUG
    M14X1,50
    from £3.93
    from £3.93
    # 003
    MPN: N0138493
    SEAL RING
    14X20 ALUMINIUM
    from £2.33
    from £2.33
    # 004
    -
    oil pump
    # 005
    MPN: N0138326
    SEAL RING
    18X22
    from £1.49
    from £1.49
    # 006
    MPN: N0160293
    SEALING PLUG
    M18X1,5
    from £5.53
    from £5.53
    # 007
    MPN: N10124306
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X20
    from £0.89
    from £0.89
    # 008
    MPN: N10554005
    ROUND HD. SCREW
    M6X35
    from £1.80
    from £1.80
    # 009
    MPN: N10405702
    HEXAGON SOCKET HEAD BOLT
    M6X45
    from £0.62
    from £0.62
    # 010
    MPN: 07L103121S
    SEAL
    from £5.80
    from £5.80
    # 011
    MPN: 077115143D
    CENTRE SLEEVE
    10,4X12X12
    from £8.73
    from £8.73
    This part replaces part number 077115143
