103.05.00 - COMPLETE CYLINDER HEAD

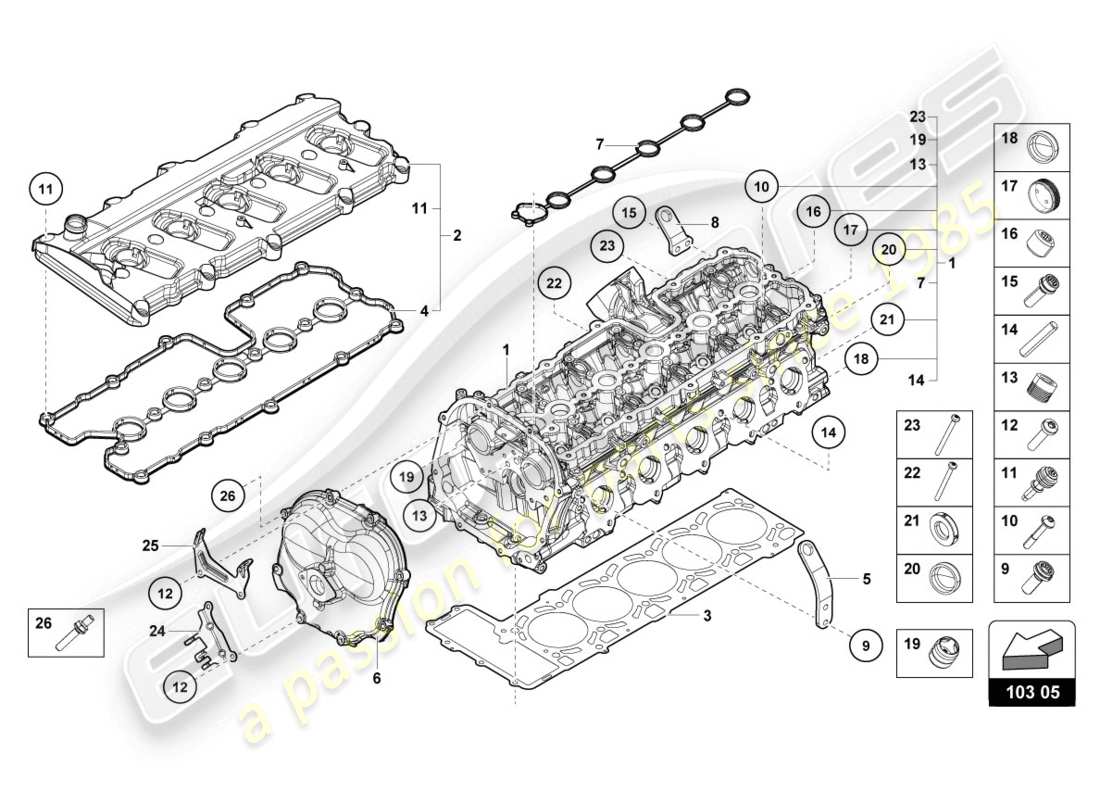

Lamborghini Evo Spyder 2WD (2020) COMPLETE CYLINDER HEAD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 07L103064BH
COMPLETE CYLINDER HEAD
CYLINDERS 1-5 RIGHT
from £6,347.43
from £6,347.43
# 002
MPN: 07L103472D
CYLINDER HEAD COVER WITH GASKET
RIGHT
from £481.61
from £481.61
# 003
MPN: 07L103383BB
CYLINDER HEAD GASKET
CYLINDERS 1-5 RIGHT
from £105.49
from £105.49
This part replaces part number 07L103383AG - and 1 more. Click to view details
# 004
MPN: 07L103484F
SEAL
from £31.12
from £31.12
# 005
MPN: 07L103390M
TRANSPORTATION SHACKLE
from £11.51
from £11.51
# 006
MPN: 07L109286M
COVER
RIGHT
from £181.57
from £181.57
# 007
MPN: 07L103650A
SEAL
CYLINDERS 1-5
from £13.84
from £13.84
# 008
MPN: 07L103390R
TRANSPORTATION SHACKLE
from £4.28
from £4.28
# 009
MPN: N91084201
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
M8X25
from £2.13
from £2.13
# 010
MPN: N91127602
HEXAGON SOCKET FLAT HEAD BOLT
M6X35X16
from £1.27
from £1.27
# 011
MPN: 06B103831J
HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE
from £6.19
from £6.19
# 012
MPN: N91068001
HEXAGON SOCKET FLAT HEAD BOLT
M6X28
from £1.07
from £1.07
# 013
MPN: 07L109291
BUNGS
from £8.00
from £8.00
# 014
MPN: N0145555
THREADED PIN
M8X44
from £2.34
from £2.34
# 015
MPN: N91139201
SCREW WITH INT. SERRATIONS
M8X20
from £1.31
from £1.31
# 016
MPN: N10630302
SEALING PLUG
M10X1
from £2.34
from £2.34
# 017
MPN: 06B103113C
END CAP
26
from £5.41
from £5.41
# 018
MPN: N0119078
END CAP
14
from £0.92
from £0.92
# 019
MPN: 079103175H
NON-RETURN VALVE
from £19.07
from £19.07
# 020
MPN: 036103113A
END CAP
36,6
from £5.41
from £5.41
# 021
MPN: 06D103377
WASHER
from £3.55
from £3.55
# 022
MPN: WHT001411
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X138
from £2.95
from £2.95
# 023
MPN: N10720801
ROUND-HEAD SCREW
from £0.66
from £0.66
# 024
-
ARM
# 025
-
ARM
# 026
MPN: N91184801
12-POINT SOCKET HEAD BOLT (COMBI)
M6X28-M6X10
from £1.98
from £1.98
