lamborghini evo spyder 2wd (2020) oil filter element parts diagram

115.02.00 - OIL FILTER ELEMENT

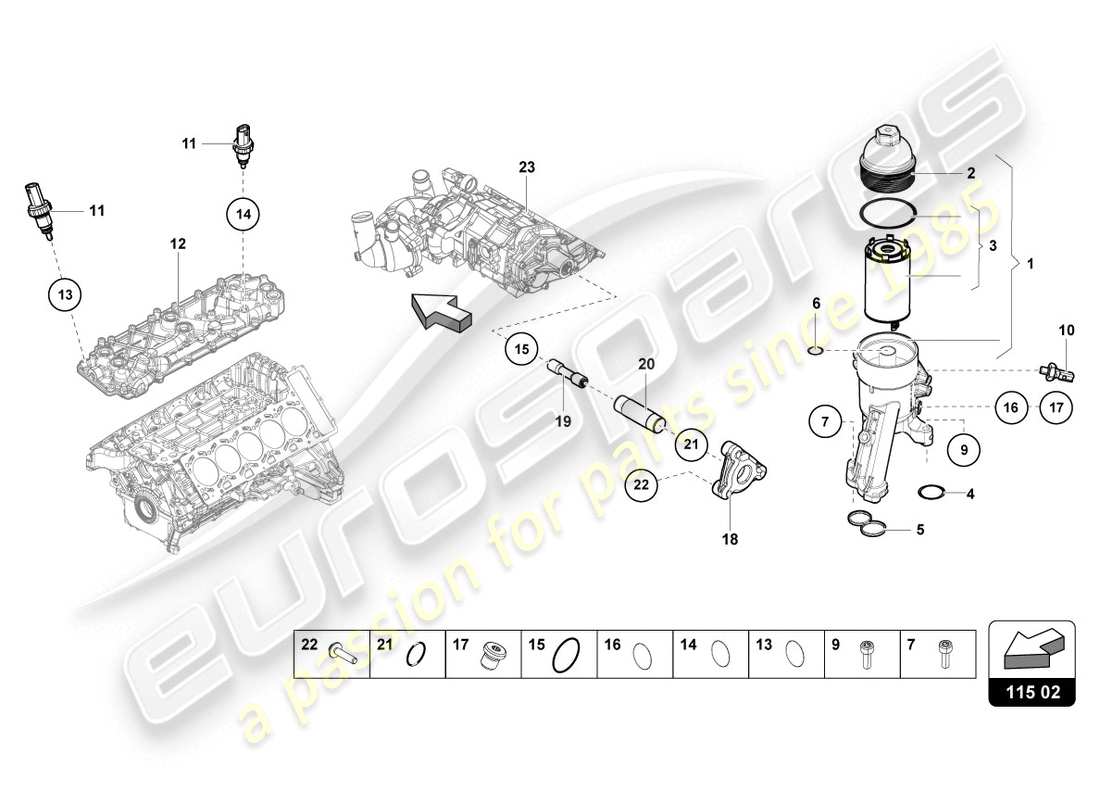

Lamborghini Evo Spyder 2WD (2020) OIL FILTER ELEMENT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 07L115401F
                  OIL FILTER BRACKET
                  from £318.19
                  from £318.19
                  # 002
                  MPN: 079115433D
                  END CAP
                  from £59.67
                  from £59.67
                  # 003
                  MPN: 079198405E
                  FILTER ELEMENT WITH GASKET
                  from £40.90
                  from £40.90
                  This part replaces part number 079198405B
                  # 004
                  MPN: N10538201
                  O-RING
                  19X3,55
                  from £3.60
                  from £3.60
                  # 005
                  MPN: 079103121BE
                  SEAL
                  from £10.38
                  from £10.38
                  # 006
                  MPN: N0138063
                  SEAL RING
                  10X14
                  from £2.18
                  from £2.18
                  # 007
                  MPN: N10622101
                  OVAL HEXAGON SOCKET HEAD BOLT
                  M6X65
                  from £0.82
                  from £0.82
                  # 008
                  -
                  HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT. PIECES
                  SEE ILLUSTRATION : 115.01
                  # 009
                  MPN: N91124501
                  HEXAGON SOCKET HEAD BOLT
                  M8X40
                  from £3.77
                  from £3.77
                  # 010
                  MPN: 079919081
                  OIL PRESSURE SWITCH
                  1,2-1,6BAR 1 PIN BLACK M10X1
                  from £15.92
                  from £15.92
                  # 011
                  MPN: 059919523F
                  TEMPERATURE SENSOR
                  from £36.19
                  from £36.19
                  This part replaces part number 059919523A
                  # 012
                  -
                  REMOVABLE LID
                  SEE ILLUSTRATION : 100.01
                  # 013
                  MPN: WHT002287B
                  O-RING
                  FOR WATER TEMPERATURE SENSOR-5,6X2 BLACK
                  from £2.81
                  from £2.81
                  # 014
                  MPN: WHT002287C
                  O-RING
                  FOR OIL TEMPERATURE SENSOR-5,6X2
                  from £2.92
                  from £2.92
                  # 015
                  -
                  O-RING
                  SEE ILLUSTRATION : 121.07-27X3,5
                  # 016
                  MPN: N0138063
                  SEAL RING
                  10X14
                  from £2.18
                  from £2.18
                  # 017
                  MPN: N91119401
                  SEALING PLUG
                  M10X1X10
                  from £2.62
                  from £2.62
                  This part replaces part number N90281702
                  # 018
                  MPN: 07L103707B
                  COVER
                  from £50.07
                  from £50.07
                  # 019
                  MPN: 07L115138H
                  COUPLING
                  from £111.10
                  from £111.10
                  # 020
                  MPN: 07L115467B
                  PIPE
                  from £15.87
                  from £15.87
                  # 021
                  MPN: WHT008700
                  O-RING
                  27X2,5
                  from £2.04
                  from £2.04
                  This part replaces part number N90460801
                  # 022
                  MPN: N10704501
                  OVAL HEXAGON SOCKET HEAD BOLT
                  M6X35
                  from £0.63
                  from £0.63
                  # 023
                  -
                  oil pump
                  SEE ILLUSTRATION : 121.07
