121.03.00 - COOLANT HOSES AND PIPES

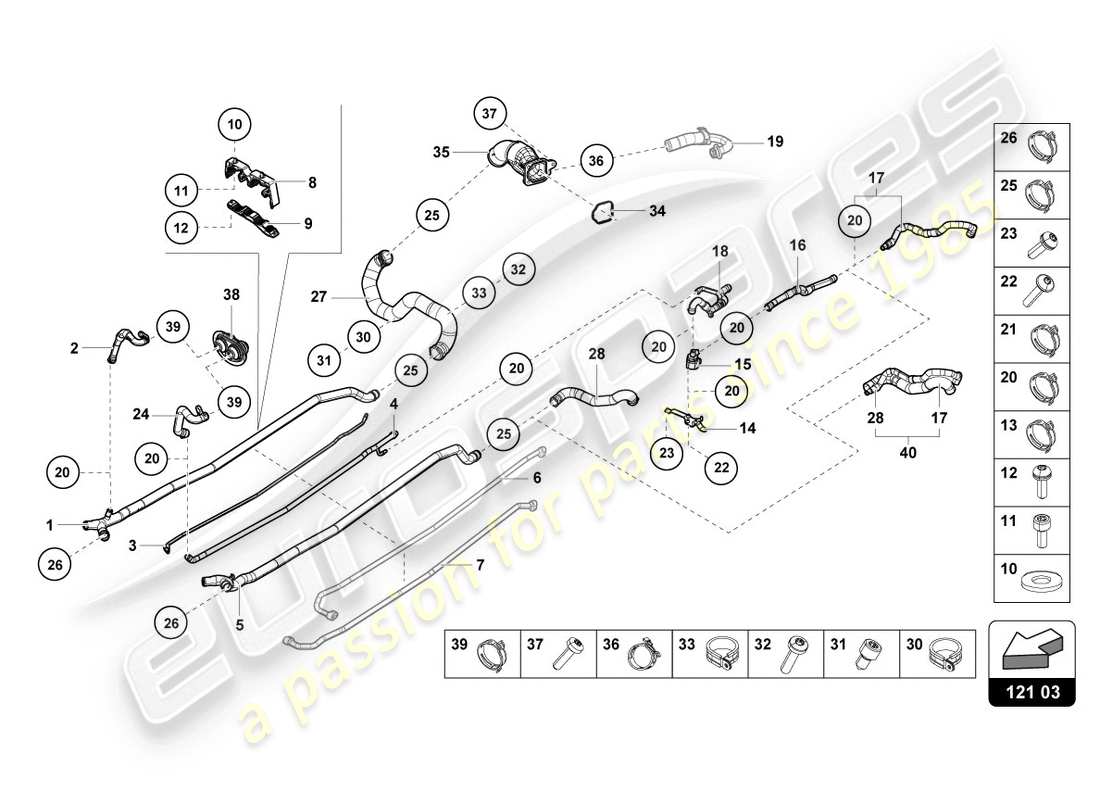

Lamborghini Evo Spyder 2WD (2020) COOLANT HOSES AND PIPES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4S0121400F
COOLANT PIPE
from £92.74
from £92.74
# 002
MPN: 4S0819372A
COOLANT HOSE
from £7.66
from £7.66
# 003
MPN: 4S0121465F
COOLANT PIPE
from £16.55
from £16.55
# 004
MPN: 4S0819270G
COOLANT PIPE
from £39.19
from £39.19
# 005
MPN: 4S0121485F
COOLANT PIPE
from £79.89
from £79.89
# 006
-
REFRIGERANT PIPE
# 007
-
REFRIGERANT PIPE
# 008
MPN: 4S0121305C
RETAINER, UPPER PART
from £13.63
from £13.63
# 009
MPN: 4S0121079B
RETAINER, LOWER PART
from £8.23
from £8.23
# 010
-
CUP WASHER
# 011
MPN: N91084801
HEXAGON SOCKET HEAD BOLT
M6X18
from £0.55
from £0.55
# 012
MPN: N10471803
HEXAGON SOCKET HEAD PANEL BOLT
from £0.51
from £0.51
# 013
MPN: N90687101
SPRING BAND CLAMP
32X12
from £4.76
from £4.76
# 014
MPN: 4S0820536A
BRACKET FOR ADDITIONAL COOLANT PUMP
from £8.18
from £8.18
# 015
MPN: 06H121601N
ADDITIONAL COOLANT PUMP
from £56.12
from £56.12
# 016
MPN: 4S0819375C
COOLANT HOSE
LOWER
from £12.41
from £12.41
# 017
-
COOLANT HOSE
# 018
MPN: 4S0819342A
COOLANT PIPE
from £13.27
from £13.27
# 019
-
COOLER FOR COOLANT
# 020
MPN: N90687001
SPRING BAND CLAMP
27X12
from £4.55
from £4.55
# 021
MPN: N90770201
SPRING BAND CLAMP
17X12
from £2.33
from £2.33
# 022
MPN: WHT002306
SELF-TAPPING SCREW
3,5X12
from £0.51
from £0.51
# 023
MPN: N91096701
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
from £1.03
from £1.03
# 024
MPN: 4S0819374A
COOLANT HOSE
from £12.11
from £12.11
# 025
MPN: N90926501
SPRING BAND CLAMP
47X12
from £6.19
from £6.19
# 026
MPN: N90687201
SPRING BAND CLAMP
40X12
from £1.93
from £1.93
# 027
MPN: 4S0121101C
COOLANT HOSE
from £19.19
from £19.19
# 028
-
VENT HOSE
# 029
MPN: N90926501
SPRING BAND CLAMP
47X12
from £6.19
from £6.19
# 030
MPN: N90687201
SPRING BAND CLAMP
40X12
from £2.04
from £2.04
# 030
MPN: N91048501
CLAMP
54X20
from £3.72
from £3.72
# 031
MPN: N10544703
SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD
M6X10
from £0.72
from £0.72
# 032
MPN: N91071701
HEXAGON SOCKET FLAT HEAD BOLT
M6X25
from £1.16
from £1.16
# 033
MPN: N90942301
CLAMP
48X15
from £6.14
from £6.14
# 034
MPN: 07L103121R
SEAL
from £7.66
from £7.66
# 035
MPN: 07L121127C
WATER CONNECTION
from £184.17
from £184.17
This part replaces part number 07L121127B
# 036
MPN: N90926401
SPRING BAND CLAMP
19X12
from £2.33
from £2.33
# 037
MPN: N10700201
HEXAGON SOCKET HEAD BOLT
M6X22
from £1.93
from £1.93
# 038
MPN: 4H0819699D
DOUBLE GROMMET
from £2.50
from £2.50
# 039
MPN: N90686902
SPRING BAND CLAMP
23X12
from £3.55
from £3.55
# 040
MPN: 4S0122109
COOLANT HOSE
from £30.34
from £30.34
