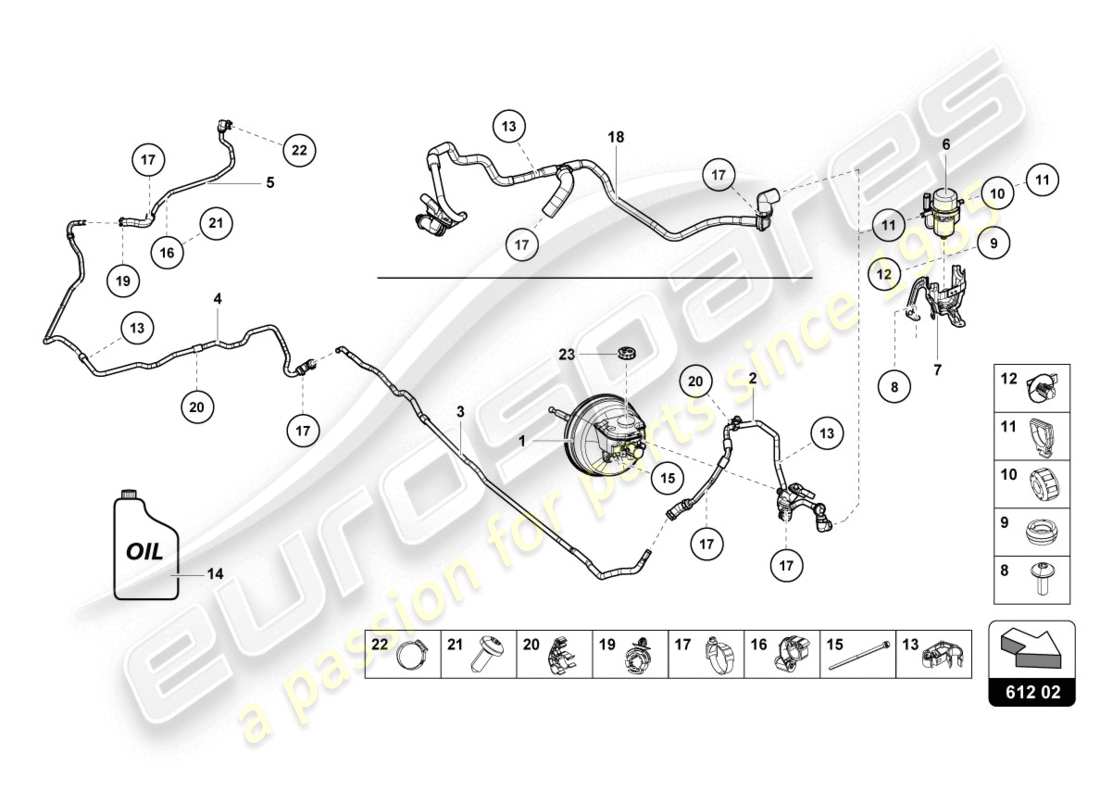

612.02.00 - HYDRAULIC SYSTEM FOR BRAKE SERVO

Lamborghini Evo Spyder 2WD (2020) HYDRAULIC SYSTEM FOR BRAKE SERVO Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 4S0612105G
                        Brake Servo
                        from £622.55
                        from £622.55
                        # 002
                        MPN: 4S1611931H
                        VACUUM HOSE WITH NON-RETURN VALVE AND PRESSURE SENSOR
                        LHD (EUROPE, USA spec vehicles)
                        from £60.64
                        from £60.64
                        # 003
                        MPN: 4T0611936D
                        VACUUM HOSE
                        from £25.11
                        from £25.11
                        # 004
                        MPN: 4S0611936L
                        VACUUM PIPE
                        from £47.37
                        from £47.37
                        # 005
                        MPN: 4S0611931C
                        VACUUM PIPE
                        from £19.55
                        from £19.55
                        # 006
                        MPN: 8E0927317K
                        ELECTRIC VACUUM PUMP FOR BRAKE
                        from £155.99
                        from £155.99
                        # 007
                        MPN: 4S0614709D
                        RETAINER FOR VACUUM PUMP
                        from £11.61
                        from £11.61
                        # 008
                        MPN: N10406504
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X12
                        from £1.16
                        from £1.16
                        # 009
                        MPN: 8E0614177A
                        STOP BUFFER
                        from £2.27
                        from £2.27
                        # 010
                        MPN: 8E0614177B
                        STOP BUFFER
                        from £2.21
                        from £2.21
                        # 011
                        MPN: 4B0614145
                        CLIP
                        from £0.44
                        from £0.44
                        # 012
                        MPN: N90685101
                        BRACKET FOR CONNECTOR HOUSING
                        A6.5-6,5
                        from £2.73
                        from £2.73
                        # 013
                        MPN: 4S0611797D
                        BRACKET
                        DOUBLE
                        from £4.55
                        from £4.55
                        # 014
                        MPN: B000750M3
                        BRAKE FLUID
                        1.0 LTR.
                        from £21.62
                        from £21.62
                        # 015
                        MPN: WHT003382A
                        12-POINT HEAD BOLT
                        M8X205X125
                        from £8.05
                        from £8.05
                        # 016
                        MPN: N0206015
                        CLAMP
                        12X15
                        from £1.51
                        from £1.51
                        # 017
                        MPN: N10255601
                        CLAMP
                        23,5X7X0,6
                        from £1.25
                        from £1.25
                        # 018
                        MPN: 4S2611931F
                        VACUUM HOSE WITH NON-RETURN VALVE AND PRESSURE SENSOR
                        RHD (UK spec vehicles)
                        from £69.43
                        from £69.43
                        # 019
                        MPN: 8K0260759H
                        BRACKET
                        from £3.38
                        from £3.38
                        # 020
                        MPN: 4S0611837
                        HOLDER FOR VACUUM HOSE
                        Supersession
                        Supersession
                        # 021
                        MPN: N91096702
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X16
                        from £0.93
                        from £0.93
                        # 022
                        MPN: N10201901
                        CLAMP
                        22,6X7X0,60
                        from £1.36
                        from £1.36
                        # 023
                        MPN: 5Q0611349A
                        CAP FOR EXPANSION TANK
                        (USA spec vehicles)
                        from £5.31
                        from £5.31
                        # 023
                        MPN: 5Q0611349B
                        CAP FOR EXPANSION TANK
                        (EUROPE, UK spec vehicles)
                        from £5.31
                        from £5.31
