lamborghini evo spyder 2wd (2020) bonnet parts diagram

823.01.00 - BONNET

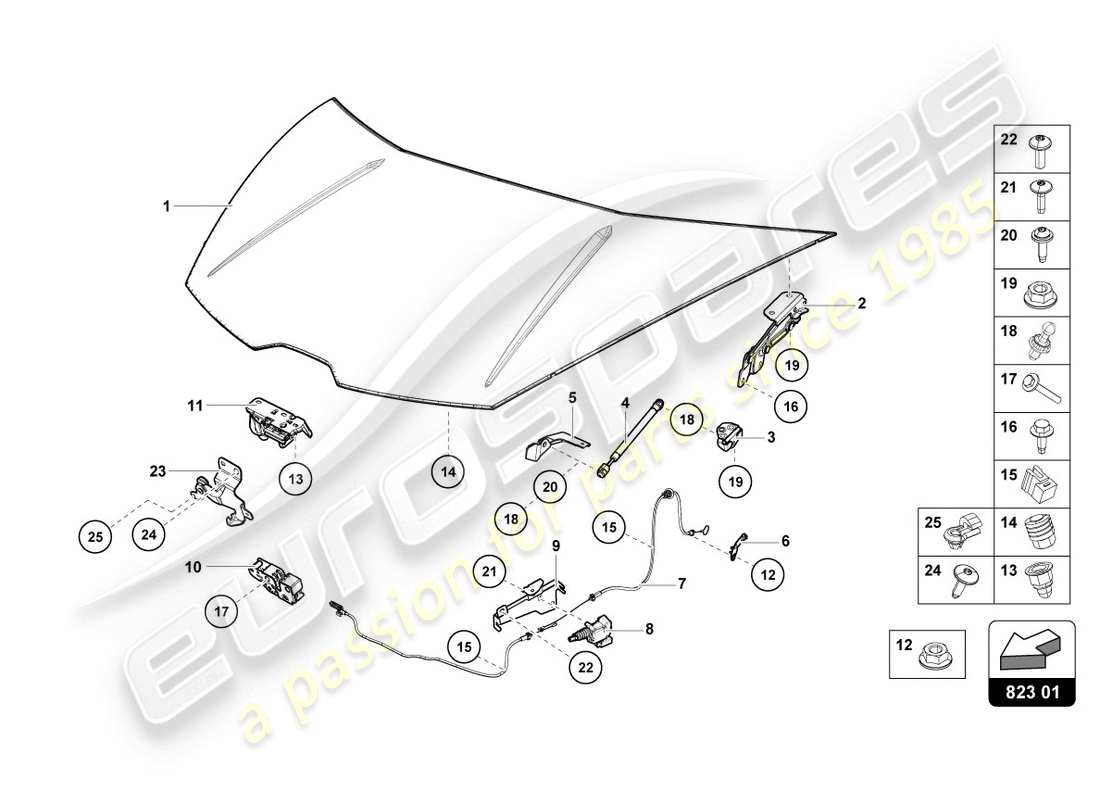

Lamborghini Evo Spyder 2WD (2020) BONNET Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 4T0823021C
                BONNET
                CONTACT YOUR AREA MANAGER
                from £5,375.93
                from £5,375.93
                # 002
                MPN: 4T0823301B
                HINGE
                LEFT
                from £144.40
                from £144.40
                # 002
                MPN: 4T0823302B
                HINGE
                RIGHT
                from £144.40
                from £144.40
                # 003
                MPN: 4T0823351B
                ARM
                from £27.06
                from £27.06
                # 004
                MPN: 4T0823359
                GAS FILLED STRUT
                from £44.53
                from £44.53
                # 005
                MPN: 4T0805669C
                ATTACHMENT BARS
                LEFT
                from £36.62
                from £36.62
                This part replaces part number 4T0805669B
                # 005
                MPN: 4T0805670C
                ATTACHMENT BARS
                RIGHT
                from £49.89
                from £49.89
                # 006
                MPN: 4T0819549
                BRACKET
                from £10.08
                from £10.08
                # 007
                MPN: 4T0823531B
                BOWDEN CABLE
                (EUROPE, UK spec vehicles)
                from £92.52
                from £92.52
                # 007
                MPN: 4T0823531C
                BOWDEN CABLE
                (USA spec vehicles)
                from £92.52
                from £92.52
                # 008
                MPN: 420959782
                SERVOMOTOR
                from £14.15
                from £14.15
                # 009
                MPN: 4T0819967
                ARM
                LEFT
                from £33.59
                from £33.59
                # 009
                MPN: 4T0819968
                ARM
                RIGHT
                from £32.42
                from £32.42
                # 010
                MPN: 1K1823509E
                BONNET LOCK-LOWER PART
                WITH WIRING HARNESS
                from £62.86
                from £62.86
                # 011
                MPN: 1Q0823480
                CATCH HOOK
                FRONT (EUROPE, UK spec vehicles)
                from £24.35
                from £24.35
                # 011
                MPN: 475823480
                CATCH HOOK
                FRONT (USA spec vehicles)
                from £78.95
                from £78.95
                # 012
                MPN: N91205301
                HEXAGON FLANGE NUT, SELF-LOCKING
                M6
                from £1.43
                from £1.43
                # 013
                MPN: WHT001308
                CAP NUT, SELF-LOCKING
                from £1.28
                from £1.28
                # 014
                MPN: 4E0823481
                STOP BUFFER
                LEFT A. RIGHT
                from £1.69
                from £1.69
                # 015
                MPN: 3D0971497D
                CABLE TIE WITH TERMINAL SOCKET
                1-3MM VERTICAL OUTER
                from £1.56
                from £1.56
                # 016
                MPN: N90863802
                HEXAGON HEAD BOLT (COMBI)
                M8X25
                from £0.95
                from £0.95
                # 017
                MPN: N10553804
                HEXAGON HEAD BOLT (COMBI)
                M6X45
                from £1.28
                from £1.28
                This part replaces part number N10553801
                # 018
                MPN: 895827439D
                BALL STUD
                from £4.45
                from £4.45
                This part replaces part number 895827439B
                # 019
                MPN: N90798805
                HEXAGON COLLAR NUT
                M8
                from £1.15
                from £1.15
                # 020
                MPN: N90900401
                HEX SOCKET OVAL HEAD COLLARED
                M6X20
                from £0.84
                from £0.84
                # 021
                MPN: N90739704
                PANEL SCREW
                5X22
                from £0.57
                from £0.57
                # 022
                MPN: N91042302
                OVAL HEXAGON SOCKET HEAD BOLT
                M6X16
                from £0.63
                from £0.63
                # 023
                MPN: 4T0805211B
                MOUNTING BAR
                (USA spec vehicles)
                from £184.17
                from £184.17
                # 024
                MPN: N90900402
                HEX SOCKET OVAL HEAD COLLARED
                M6X20 (USA spec vehicles)
                from £0.81
                from £0.81
                # 025
                MPN: 410837230
                SECURING ELEMENT
                (USA spec vehicles)
                from £0.52
                from £0.52
                This part replaces part number 009421251
                # 026
                MPN: 6H0862247
                CONNECTING PIECE
                from £0.83
                from £0.83
