lamborghini evo spyder 2wd (2020) soft top box tray parts diagram

871.02.00 - SOFT TOP BOX TRAY

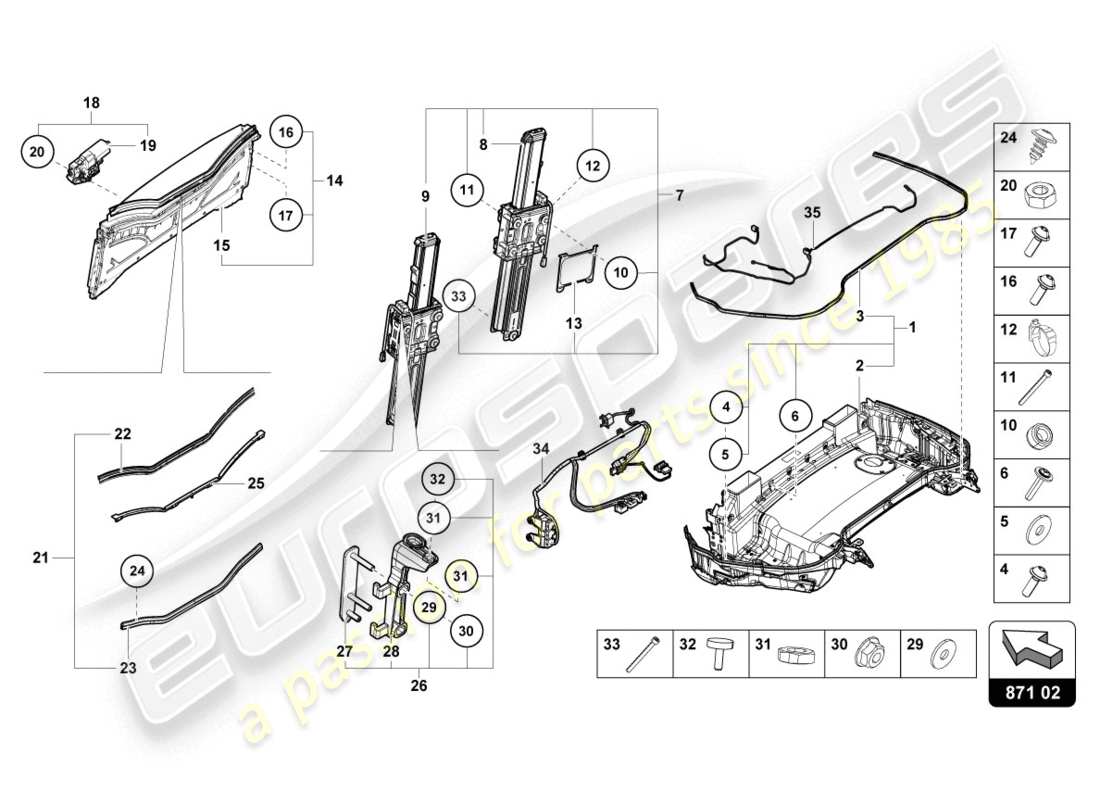

Lamborghini Evo Spyder 2WD (2020) SOFT TOP BOX TRAY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 4T7825147

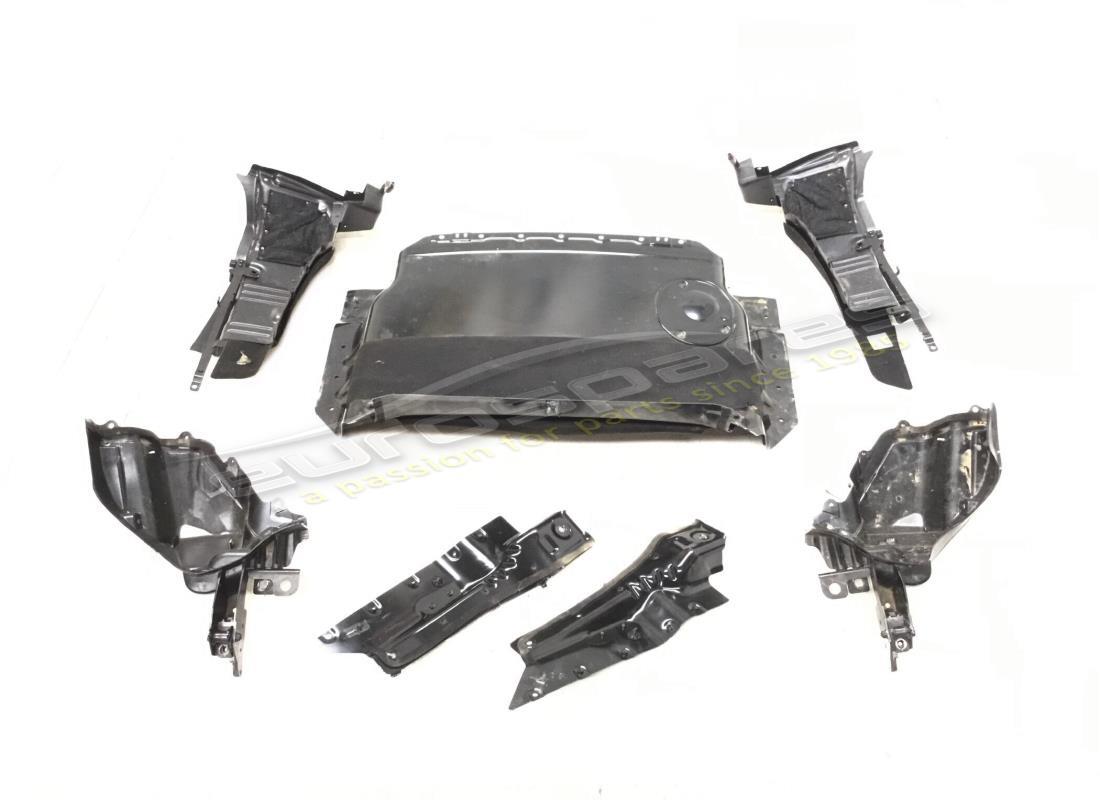

            CROSS MEMBER FOR ROOF BOX
            from £7,130.92
            from £7,130.92
            ROOF CONTAINER + CROSSBEAM Genuine Lamborghini - New (to order)
            ROOF CONTAINER + CROSSBEAM Genuine Lamborghini - Used In stock
            # 002
            -
            SOFT TOP BOX TRAY
            CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 1
            # 003
            MPN: 4T7825402

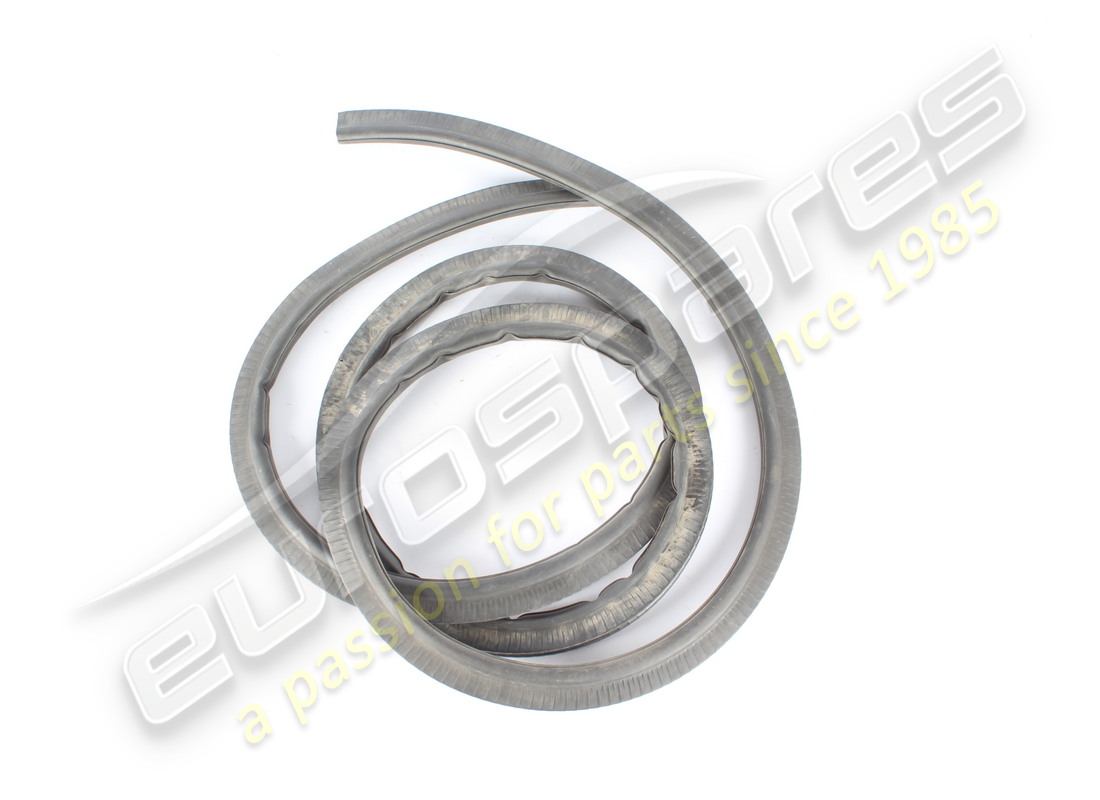

            SEAL FOR CONV. TOP STOWAGE BOX
            from £126.02
            from £126.02
            KIT SEALING ROOF CONTAINER Genuine Lamborghini - New (to order)
            KIT SEALING ROOF CONTAINER Genuine Lamborghini - Used In stock
            # 004
            -
            BALL SCREW
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 1
            # 005
            -
            CUP WASHER
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 1
            # 006
            -
            HEXAGON FLANGE SCREW
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 1
            # 007
            MPN: 4T7880077
            OVERROLL PROTECTION
            SX E DX
            from £3,497.48
            from £3,497.48
            POP-UP KIT Genuine Lamborghini - New (to order)
            # 008
            -
            OVERROLL PROTECTION
            DES. - CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 7
            # 009
            -
            OVERROLL PROTECTION
            SIN. - CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 7
            # 010
            -
            NUT
            CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 7
            # 011
            -
            HEXAGON SOCKET HEAD BOLT
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 7
            # 012
            -
            HOSE CLAMP
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 7
            # 013
            -
            COVER PLATE
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 7
            # 014
            MPN: 4T7845861
            REAR WINDOW
            from £3,938.46
            from £3,938.46
            REAR WINDOW MODULE Genuine Lamborghini - New (to order)
            # 015
            -
            REAR WINDOW
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 14
            # 016
            -
            BALL SCREW
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 14
            # 017
            -
            BALL SCREW
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 14
            # 018
            MPN: 4T7959801A
            WINDOW REGULATOR MOTOR
            LEFT LHD
            from £255.94
            from £255.94
            RWM MOTOR Genuine Lamborghini - New (to order)
            # 019
            -
            WINDOW REGULATOR MOTOR
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:-LEFT LHD 18
            # 020
            -
            NUT
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 18
            # 021
            MPN: 4T7845121
            SEAL FOR FRONT WINDOW
            UPPER
            from £162.17
            from £162.17
            KIT FIRST AND THIRD SEALING FOR RWM Genuine Lamborghini - New (to order)
            KIT FIRST AND THIRD SEALING FOR RWM Genuine Lamborghini - Used In stock
            # 022
            -
            SEAL
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 21
            # 023
            -
            SEAL
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 21
            # 024
            -
            BALL SCREW
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 21
            # 025
            MPN: 4T7853297
            gaskets
            CENTRALE
            from £390.83
            from £390.83
            KIT CENTRAL SEALING FOR RWM Genuine Lamborghini - New (to order)
            # 026
            MPN: 4T7898040
            SEAT BACK TRIM
            RIGHT
            from £120.62
            from £120.62
            KIT LOCATION PARTS WITH FIXING Genuine Lamborghini - New (to order)
            # 027
            -
            ARM
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 26
            # 028
            -
            RETAINING BASE
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 26
            # 029
            -
            CUP WASHER
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 26
            # 030
            -
            NUT
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 26
            # 031
            -
            RETAINING BASE
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 26
            # 032
            -
            PIN
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 26
            # 033
            -
            HEXAGON SOCKET HEAD BOLT
            CANNOT BE SOLD SEPARATELY INCLUDED IN REF.:- 7
            # 034
            MPN: 4T7998671B
            WIRING SET FOR ROOF CONSOLE
            from £238.65
            from £238.65
            WIRE HARNESS CROSSBEAM Genuine Lamborghini - New (to order)
            # 035
            MPN: 4T7998671
            WIRING SET FOR ROOF CONSOLE
            from £315.00
            from £315.00
            WIRE HARNESS ROOF CONTAINER Genuine Lamborghini - New (to order)
            WIRE HARNESS ROOF CONTAINER Genuine Lamborghini - Used In stock
            ROOF WIRING SET COMPLETE
