lamborghini lp600-4 zhong coupe (2016) ignition system parts diagram

905.01.00 - IGNITION SYSTEM

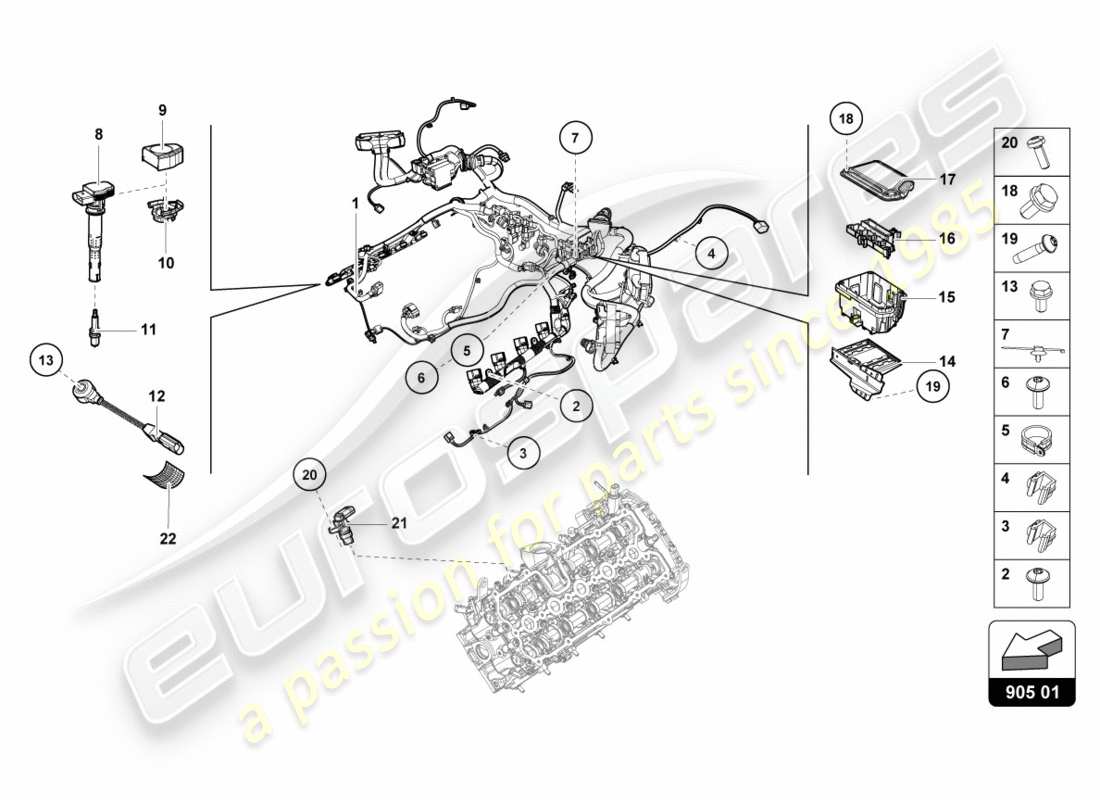

Lamborghini LP600-4 ZHONG COUPE (2016) IGNITION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 4S8971713A
        HARNESS FOR ENGINE COMPARTMENT
        from £2,258.38
        from £2,258.38
        HARNESS,ENGINE 5,2L V10 FSI DL800 Genuine Lamborghini - New (to order)
        # 002
        MPN: N10464802
        OVAL HEXAGON SOCKET HEAD BOLT
        4X12
        from £0.47
        from £0.47
        PAN HEAD SCREW W. TP4X12-S2-L Genuine Lamborghini - New In stock
        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
        # 003
        MPN: WHT001999
        CABLE TIE WITH TERMINAL SOCKET
        4,6X200 3,0-6,0MM OUTER
        from £1.47
        from £1.47
        CABLE TIE BASE 200.00X4.00-45.00 Genuine Lamborghini - New (to order)
        # 004
        MPN: 5M0971838
        CABLE TIE WITH TERMINAL SOCKET
        4,6X200MM
        from £1.73
        from £1.73
        CABLE TIE BASE L-4.6X193 Genuine Lamborghini - New In stock
        # 005
        MPN: N91123701
        CLAMP
        1-40X15
        from £2.94
        from £2.94
        RETAINING CLAMP D1-40X15 Genuine Lamborghini - New (to order)
        CLAMP Genuine Porsche Part - New (to order)
        # 006
        MPN: N90833202
        HEXAGON BOLT
        M6X22
        from £0.54
        from £0.54
        DUO HEXAGON FLANGEM6X22 Genuine Lamborghini - New (to order)
        DUO HEXAGON FLANGEM6X22 Genuine Lamborghini - New (other) In stock
        BOLT
        # 007
        MPN: N10646101
        CABLE TIES
        from £0.65
        from £0.65
        CABLE TIE BASE A5/4.6X143 Genuine Lamborghini - New In stock
        TIE WRAP Genuine Porsche Part - New (to order)
        # 008
        MPN: 079905115
        IGNITION COIL
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 009
        MPN: 07L905142
        PROTECTIVE CAP
        UPPER
        from £2.94
        from £2.94
        PROTECTIVE CAP Genuine Lamborghini - New (to order)
        # 010
        MPN: 07L905116B
        PROTECTIVE CAP
        LOWER
        from £9.56
        from £9.56
        PROTECTIVE CAP Genuine Lamborghini - New (to order)
        # 011
        MPN: 06H905601A
        SPARK PLUG 'LONGLIFE'
        NGK PFR7S8EG JP LL=60 Q=H LL=90/PRUEFUNG
        from £20.27
        from £20.27
        SPARK PLUG Genuine Lamborghini - New In stock
        # 011
        MPN: 06H905601C
        SPARK PLUG 'LONGLIFE'
        from £13.66
        from £13.66
        This part replaces part number 06H905601A which we have in stock - and 2 more. Click to view details
        SPARK PLUG Genuine Lamborghini - New In stock
        SPARK PLUG Original Equipment - New In stock
        # 012
        MPN: 06E905377C
        KNOCK SENSOR WITH WIRING HARNESS
        GREY - CYLINDER 9, 10_
        from £88.13
        from £88.13
        KNOCK SENSOR Genuine Lamborghini - New (to order)
        # 012
        MPN: 06E905377J
        KNOCK SENSOR WITH WIRING HARNESS
        GREEN - CYLINDER 4,5-GREEN 465MM 3 PIN
        from £52.53
        from £52.53
        SENSORE D DETONAZ. Genuine Lamborghini - New (to order)
        # 012
        MPN: 07L905377C
        KNOCK SENSOR WITH WIRING HARNESS
        ORANGE - CYLINDER 1- 3 _
        from £77.92
        from £77.92
        KNOCK SENSOR Genuine Lamborghini - New (to order)
        # 012
        MPN: 07L905377D
        KNOCK SENSOR WITH WIRING HARNESS
        BROWN - CYLINDER 6-8
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 013
        MPN: N01024425
        HEXAGON BOLT
        M8X30-M8X30
        from £1.97
        from £1.97
        HEXAGON HEAD BOLT Genuine Lamborghini - New (to order)
        SCREW, HEX. HD. - M 8 X 30 Genuine Porsche Part - New (to order)
        # 014
        MPN: 4S0937539B
        BRACKET
        LEFT
        from £18.99
        from £18.99
        BRACKET E-BOX LI Genuine Lamborghini - New (to order)
        BRACKET E-BOX LI Genuine Lamborghini - Used In stock
        # 014
        MPN: 4S0937540B
        BRACKET
        RIGHT
        from £18.99
        from £18.99
        BRACKET E-BOX RE Genuine Lamborghini - New (to order)
        BRACKET E-BOX RE Genuine Lamborghini - Used In stock
        # 015
        MPN: 4S0937113A
        HOUSING FOR CONTROL UNITS
        LEFT
        from £20.61
        from £20.61
        ELECTRONICS BOX Genuine Lamborghini - New In stock
        # 015
        MPN: 4S0937114A
        HOUSING FOR CONTROL UNITS
        RIGHT
        from £20.61
        from £20.61
        ELECTRONICS BOX Genuine Lamborghini - New In stock
        # 016
        MPN: 4S0937503
        RELAY PLATE
        RIGHT
        from £14.08
        from £14.08
        RELAY PLATE Genuine Lamborghini - New (to order)
        # 016
        MPN: 4S0937507
        RELAY PLATE
        LEFT
        from £10.30
        from £10.30
        RELAY PLATE Genuine Lamborghini - New (to order)
        # 017
        MPN: 4S0937554A
        COVER
        RIGHT
        from £10.64
        from £10.64
        COVER E-BOX RE Genuine Lamborghini - New (to order)
        # 017
        MPN: 4S0937555A
        COVER
        LEFT
        from £10.64
        from £10.64
        COVER E-BOX LI Genuine Lamborghini - New (to order)
        # 018
        MPN: N90739704
        PANEL SCREW
        TP5X22-5X22
        from £0.57
        from £0.57
        SCREW TP5X22-Q Genuine Lamborghini - New In stock
        tapping screw Genuine Porsche Part - New (to order)
        # 019
        MPN: N10653201
        HEX COLLARED BOLT
        M6X16-M6X16
        from £1.13
        from £1.13
        HEXAGON FLANGE M6X16 Genuine Lamborghini - New In stock
        BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
        # 020
        MPN: N10196103
        OVAL SOCKET HEAD BOLT WITH HEX DRIVE
        M6X16-M6X18
        from £0.78
        from £0.78
        HEXALOBULAR SOCKET M6X18 Genuine Lamborghini - New In stock
        oval socket head bolt Genuine Porsche Part - New In stock
        # 021
        MPN: 04C907601
        IMPULSE SENDER
        M6X16
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
