lamborghini lp580-2 coupe (2017) engine oil sump parts diagram

103.01.00 - engine oil sump

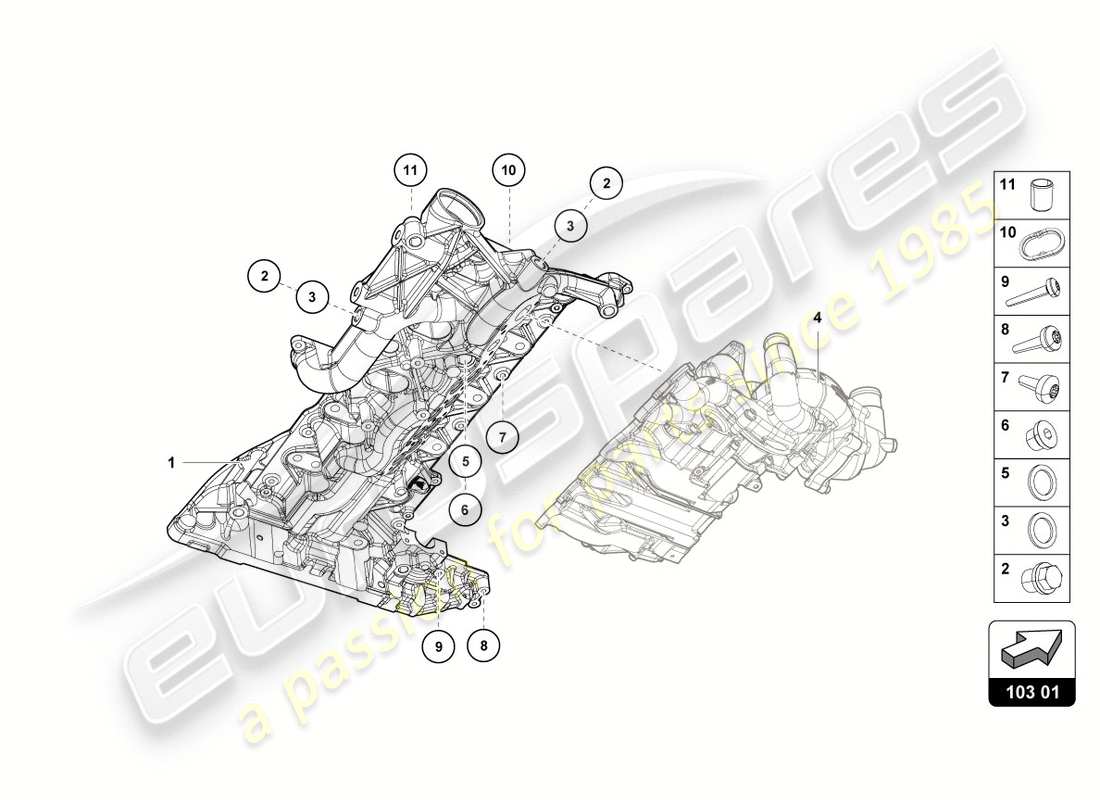

Lamborghini LP580-2 COUPE (2017) ENGINE OIL SUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 07L103601F
    engine oil sump
    INCLUDES REF 2,3
    from £1,811.43
    from £1,811.43
    oil sump Genuine Lamborghini - New (to order)
    # 002
    MPN: N0297014
    OIL DRAIN PLUG
    M14X1,50
    from £3.93
    from £3.93
    SCREW PLUG Genuine Lamborghini - New In stock
    oil drain plug (N 0297014) Genuine Porsche Part - New (to order)
    # 003
    MPN: N0138493
    SEAL RING
    14X20 ALUMINIUM
    from £2.33
    from £2.33
    WASHER M14X20 Genuine Lamborghini - New In stock
    # 004
    -
    oil pump
    # 005
    MPN: N0138326
    SEAL RING
    18X22
    from £1.49
    from £1.49
    SEAL Genuine Lamborghini - New In stock
    seal ring (N 0138326) Genuine Porsche Part - New In stock
    # 006
    MPN: N0160293
    SEALING PLUG
    M18X1,5
    from £5.53
    from £5.53
    SCREW PLUG Genuine Lamborghini - New In stock
    threaded plug (N 0160293) Genuine Porsche Part - New (to order)
    # 007
    MPN: N10124306
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X20
    from £0.89
    from £0.89
    HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
    Oval hexagon socket head bolt (N 10124306) Genuine Porsche Part - New In stock
    # 008
    MPN: N10554005
    ROUND HD. SCREW
    M6X35
    from £1.80
    from £1.80
    SCREW M6X35 Genuine Lamborghini - New In stock
    Genuine Porsche Part (no longer available to order)
    # 009
    MPN: N10405702
    HEXAGON SOCKET HEAD BOLT
    M6X45
    from £0.62
    from £0.62
    HEXALOBULAR SOCKET M6X45 Genuine Lamborghini - New In stock
    hexagonal socket head (N 10405702) Genuine Porsche Part - New (to order)
    # 010
    MPN: 07L103121S
    SEAL
    from £5.80
    from £5.80
    GASKET Genuine Lamborghini - New (to order)
    # 011
    MPN: 077115143D
    CENTRE SLEEVE
    10,4X12X12
    from £8.73
    from £8.73
    This part replaces part number 077115143
    SLEEVE Genuine Lamborghini - New (to order)
