lamborghini lp580-2 coupe (2017) oil pump parts diagram

121.07.00 - oil pump

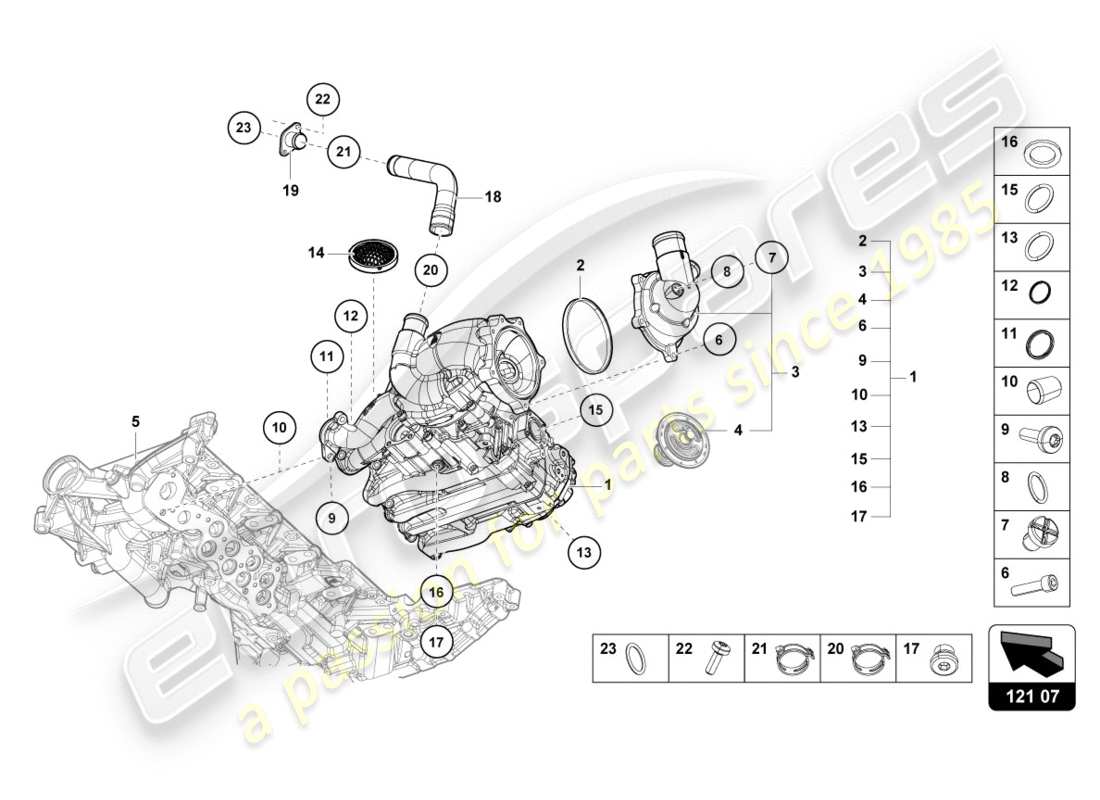

Lamborghini LP580-2 COUPE (2017) OIL PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 07L115009AN
              oil pump
              Supersession
              Supersession
              # 002
              MPN: 079121119C
              SEAL
              from £10.51
              from £10.51
              # 003
              MPN: 079121115BM
              COOLANT REGULATOR HOUSING WITH THERMOSTAT
              from £422.82
              from £422.82
              This part replaces part number 079121115BE
              # 004
              -
              THERMOSTAT
              # 005
              -
              oil sump
              # 006
              MPN: WHT003868
              SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
              M6X25
              from £14.09
              from £14.09
              # 007
              MPN: WHT003874
              SEAL BOLT WITH SEALING RING
              M10X1 PLASTIC
              from £3.47
              from £3.47
              # 008
              -
              SEAL
              # 009
              MPN: N10700201
              HEXAGON SOCKET HEAD BOLT
              M6X22
              from £2.04
              from £2.04
              # 010
              MPN: N91020803
              DOWEL SLEEVE
              8M7X10
              from £1.65
              from £1.65
              # 011
              MPN: 07L121119B
              SEAL
              32X32X3,5
              from £12.38
              from £12.38
              # 012
              MPN: 07L115446A
              SEAL
              26X26X3,5
              from £11.81
              from £11.81
              # 013
              MPN: WHT003731
              O-RING
              27X3,5
              from £16.61
              from £16.61
              # 014
              MPN: 07L103081
              OIL STRAINER
              from £16.91
              from £16.91
              # 015
              MPN: WHT003732
              O-RING
              24X3,5
              from £16.61
              from £16.61
              # 017
              MPN: N0160243
              SEALING PLUG
              M10X1
              from £3.38
              from £3.38
              # 018
              MPN: 07L121057T
              COOLANT HOSE
              from £6.51
              from £6.51
              # 019
              MPN: 07L121133M
              WATER CONNECTION
              from £38.83
              from £38.83
              # 020
              MPN: 06B145917
              SPRING BAND CLAMP
              35X12
              from £3.28
              from £3.28
              # 021
              MPN: N90687101
              SPRING BAND CLAMP
              32X12
              from £4.76
              from £4.76
              # 022
              MPN: N10196103
              OVAL SOCKET HEAD BOLT WITH HEX DRIVE
              M6X18
              from £0.78
              from £0.78
              # 023
              MPN: N90544501
              SEAL RING
              27X3
              from £2.33
              from £2.33
