lamborghini lp580-2 coupe (2017) intake manifold parts diagram

133.02.00 - INTAKE MANIFOLD

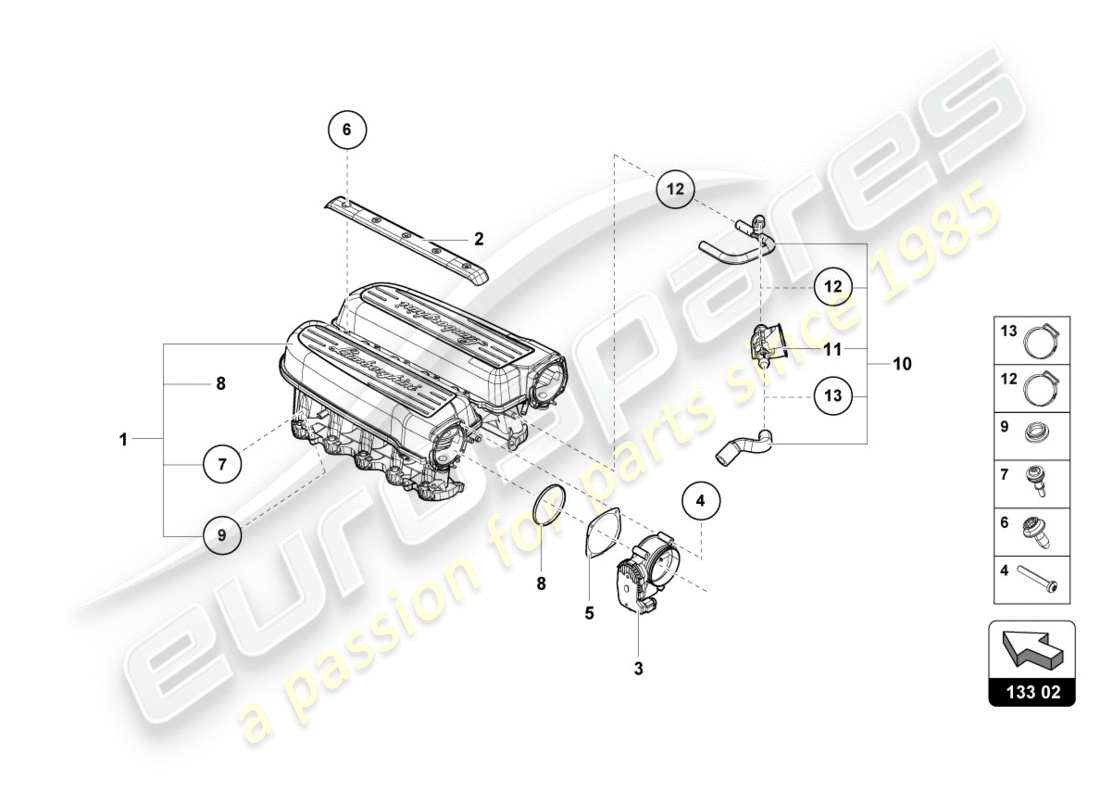

Lamborghini LP580-2 COUPE (2017) INTAKE MANIFOLD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 07L133185AC
                    INTAKE MANIFOLD
                    from £933.81
                    from £933.81
                    # 002
                    MPN: 07L133920B
                    COVER FOR INTAKE MANIFOLD
                    from £234.33
                    from £234.33
                    # 003
                    MPN: 07L133062G
                    THROTTLE VALVE ADAPTER
                    from £289.14
                    from £289.14
                    # 004
                    MPN: N10405702
                    HEXAGON SOCKET HEAD BOLT
                    M6X45
                    from £0.57
                    from £0.57
                    # 005
                    MPN: 07L133920D
                    SEAL
                    from £5.85
                    from £5.85
                    # 006
                    MPN: WHT003265
                    FLAT HEAD MULTI-POINT SOCKET BOLT
                    from £4.55
                    from £4.55
                    # 007
                    MPN: 07L133588
                    HEXAGON SOCKET FILLISTER HEAD SCREW WITH SPACER SLEEVE
                    UPPER
                    from £19.77
                    from £19.77
                    # 008
                    MPN: 07L133073F
                    SEAL
                    from £16.61
                    from £16.61
                    # 009
                    MPN: 07L133588B
                    DAMPING SLEEVE
                    from £4.55
                    from £4.55
                    # 010
                    MPN: 420133750
                    SUCTION JET PUMP WITH HOSE
                    from £54.22
                    from £54.22
                    # 011
                    MPN: 079133753
                    SUCTION JET PUMP
                    from £18.90
                    from £18.90
                    # 012
                    MPN: N10201801
                    CLAMP
                    21X7X0,6
                    from £1.04
                    from £1.04
                    # 013
                    MPN: N10255501
                    CLAMP
                    17,5X7X0,6
                    from £1.65
                    from £1.65
