lamborghini lp580-2 coupe (2017) for parking brake parts diagram

609.01.00 - FOR PARKING BRAKE

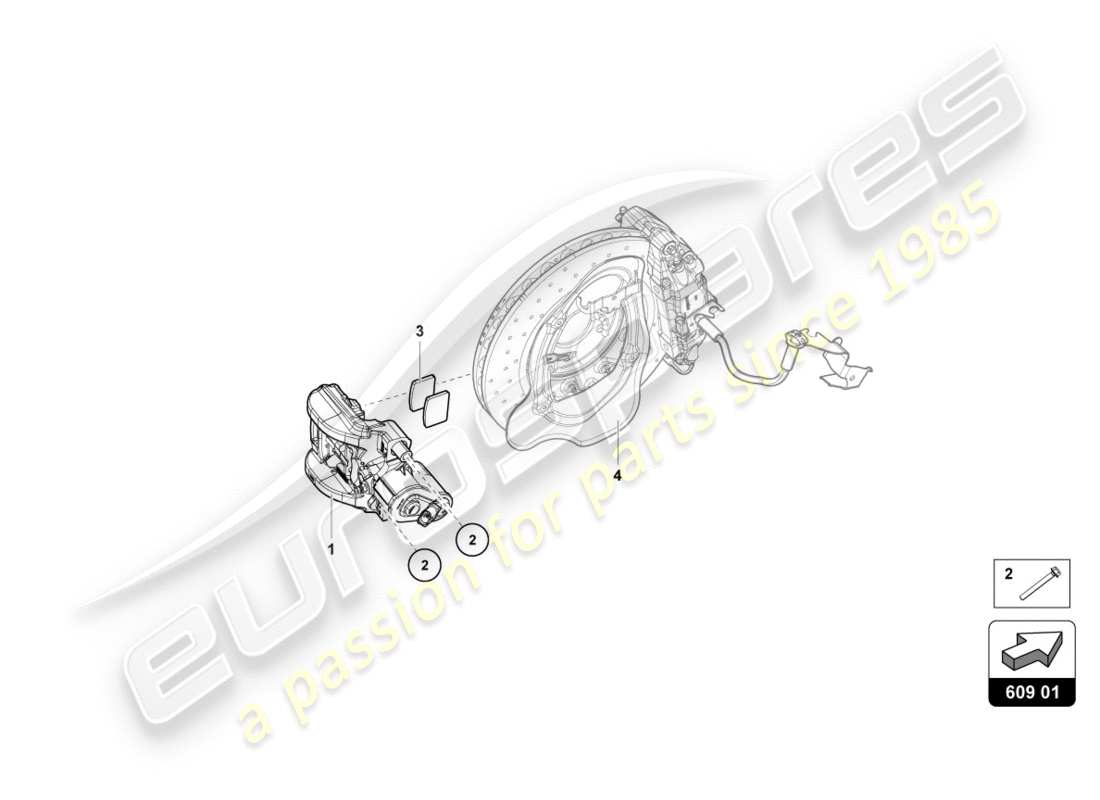

Lamborghini LP580-2 COUPE (2017) FOR PARKING BRAKE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 4S0615403E
BRAKE CALIPER HOUSING WITH SERVOMOTOR
LEFT REAR
Supersession
Supersession
# 001
MPN: 4S0615404E
BRAKE CALIPER HOUSING WITH SERVOMOTOR
RIGHT REAR
from £640.70
from £640.70
# 002
MPN: N91105601
HEX COLLARED BOLT
M10X85
from £2.68
from £2.68
# 003
MPN: 4S0698451N
1 SET OF BRAKE PADS FOR DISK BRAKE
4S0615415K
Supersession
Supersession
This part replaces part number 4T0698451A
# 004
-
WHEEL BEARING HOUSING
# 005
MPN: 4S0698269
1 SET ATTACHMENT PARTS
TRW REAR
from £24.30
from £24.30
