lamborghini lp580-2 coupe (2018) activated charcoal container parts diagram

201.06.00 - ACTIVATED CHARCOAL CONTAINER

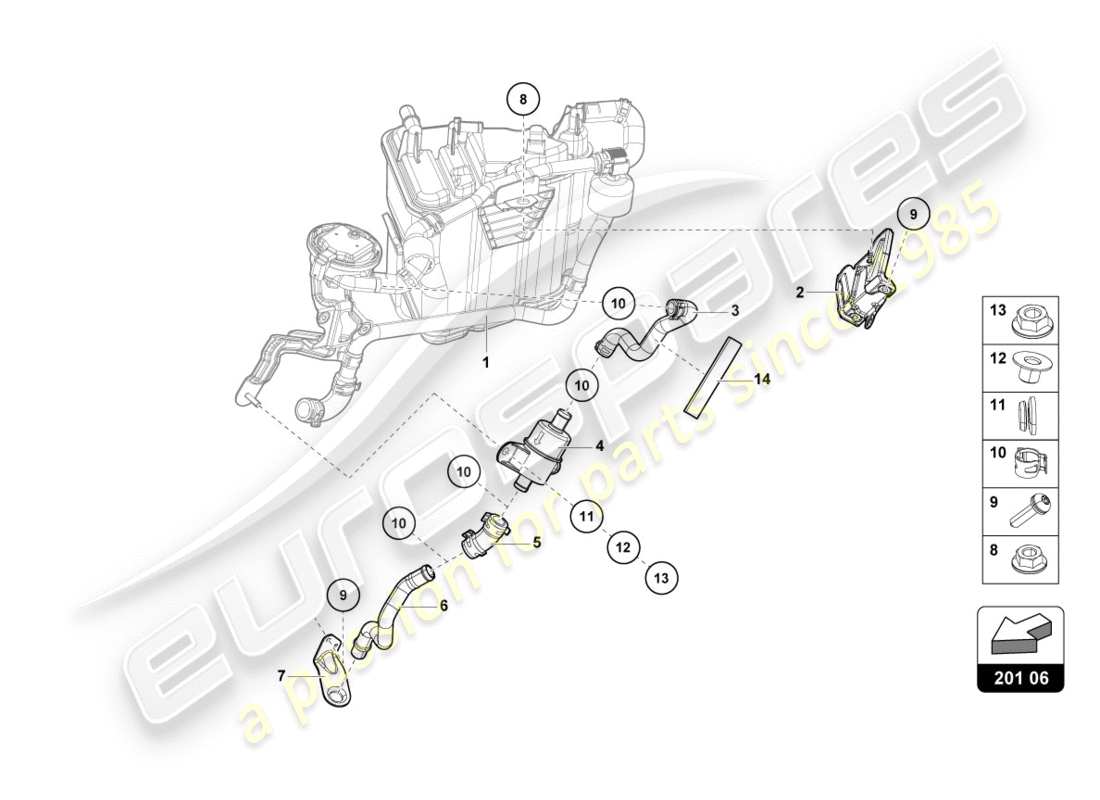

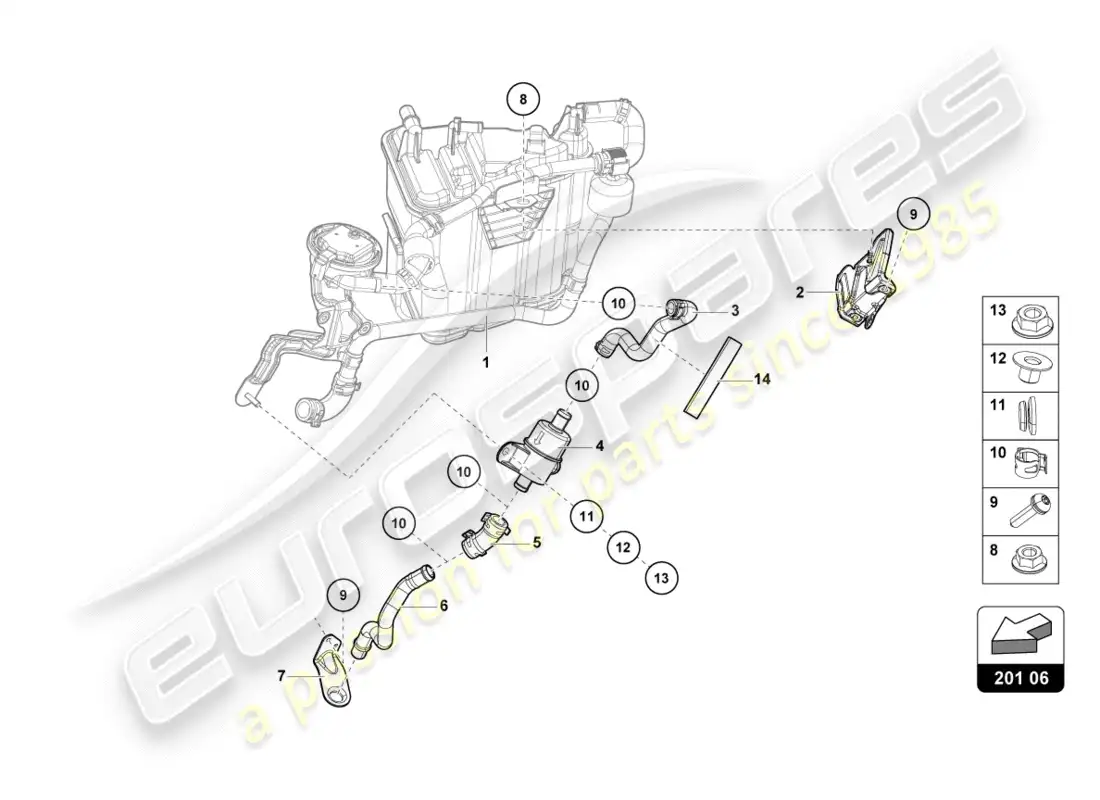

Lamborghini LP580-2 COUPE (2018) ACTIVATED CHARCOAL CONTAINER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    -
                    ACTIVATED CHARCOAL CONTAINER
                    # 002
                    MPN: 4S0201187E
                    BRACKET
                    from £13.93
                    from £13.93
                    # 003
                    MPN: 4S0906272B
                    HOSE
                    from £4.99
                    from £4.99
                    # 004
                    MPN: 4S0201752
                    KOMBI VALVE
                    from £52.79
                    from £52.79
                    # 005
                    MPN: 4S0201389C
                    AIR LINE
                    from £1.98
                    from £1.98
                    # 006
                    MPN: 4S0201411G
                    AIR LINE
                    from £4.99
                    from £4.99
                    # 008
                    MPN: N91205301
                    HEXAGON FLANGE NUT, SELF-LOCKING
                    M6
                    from £1.51
                    from £1.51
                    # 009
                    MPN: N0902619
                    HEXAGON HEAD BOLT (COMBI)
                    M6X20
                    from £1.28
                    from £1.28
                    # 010
                    MPN: 4B0422379A
                    SPRING BAND CLAMP
                    25X12
                    from £1.28
                    from £1.28
                    # 011
                    MPN: 431129669
                    GROMMET
                    from £4.33
                    from £4.33
                    # 012
                    MPN: 1K0129734B
                    BUSH
                    from £4.88
                    from £4.88
                    This part replaces part number 6N0129734
                    # 013
                    MPN: N01508210
                    HEXAGON COLLAR NUT
                    M6
                    from £1.24
                    from £1.24
                    # 014
                    MPN: 4T0127237
                    HEAT SHIELD
                    from £0.56
                    from £0.56
