lamborghini lp580-2 coupe (2018) headlight washer system parts diagram

955.02.00 - HEADLIGHT WASHER SYSTEM

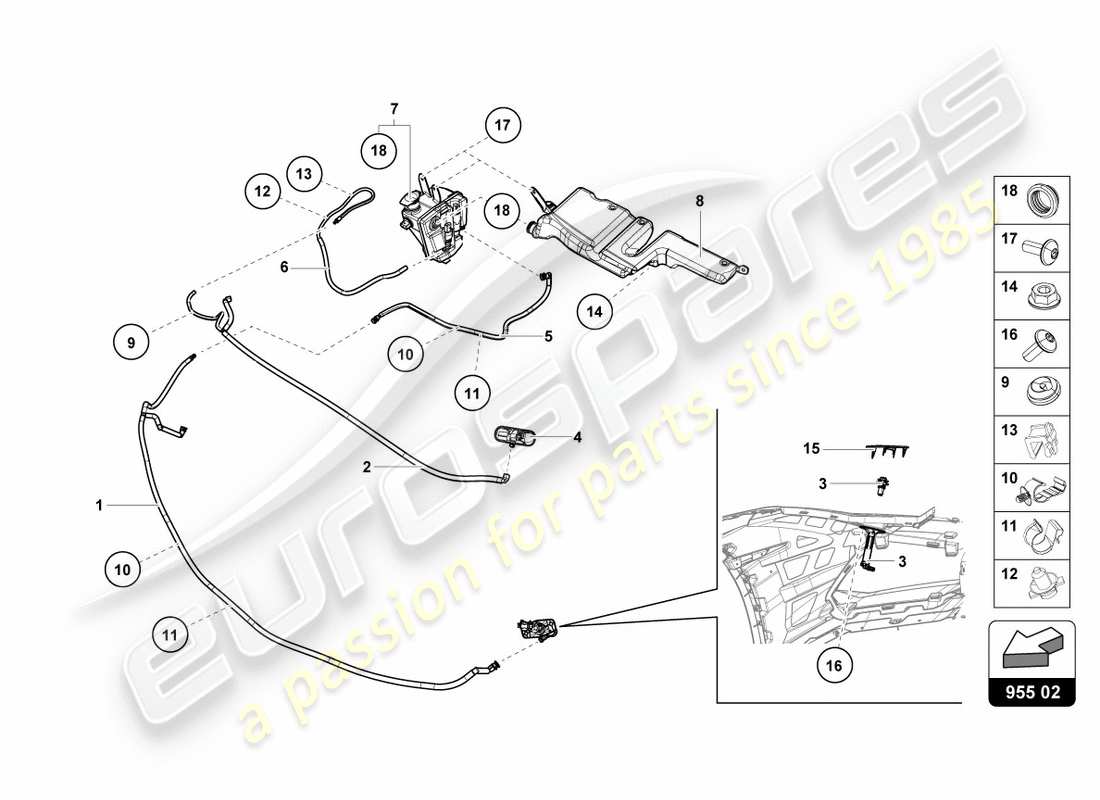

Lamborghini LP580-2 COUPE (2018) HEADLIGHT WASHER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                -
                WIRING HARNESS FOR HEADLIGHT WASHER SYSTEM
                # 001
                MPN: 4T1955970
                WIRING HARNESS FOR HEADLIGHT WASHER SYSTEM
                LHD (EUROPE, USA spec vehicles)
                from £42.11
                from £42.11
                # 001
                MPN: 4T2955970
                WIRING HARNESS FOR HEADLIGHT WASHER SYSTEM
                RHD (UK spec vehicles)
                from £42.85
                from £42.85
                # 002
                MPN: 4T0955964A
                PIPE
                from £50.94
                from £50.94
                # 003
                -
                INJECTOR UNIT FOR HEADLIGHT CLEANING
                # 004
                MPN: 5M0955985C
                WATER JET
                from £2.95
                from £2.95
                # 004
                MPN: 5M0955986C
                SPRAY NOZZLE, HEATED
                HEATED
                Supersession
                Supersession
                # 005
                -
                PIPE
                # 006
                MPN: 4T0955972A
                CORRUGATED PIPE
                from £13.98
                from £13.98
                # 007
                MPN: 4T1955449B
                CONTAINER FOR CLEANING MATERIAL
                LHD (EUROPE, USA spec vehicles)
                from £59.32
                from £59.32
                # 007
                MPN: 4T2955449B
                CONTAINER FOR CLEANING MATERIAL
                RHD (UK spec vehicles)
                from £32.63
                from £32.63
                # 008
                MPN: 4T1955945A
                CONTAINER FOR CLEANING MATERIAL
                LHD (EUROPE, USA spec vehicles)
                from £28.68
                from £28.68
                # 008
                MPN: 4T2955945A
                CONTAINER FOR CLEANING MATERIAL
                RHD (UK spec vehicles)
                from £28.68
                from £28.68
                # 009
                MPN: 420955997
                GROMMET
                from £1.98
                from £1.98
                # 010
                -
                CLAMP
                # 011
                -
                TERMINAL
                # 012
                MPN: 3D0971838K
                CABLE TIES
                from £0.80
                from £0.80
                # 013
                MPN: 7L5971847B
                CABLE TIE WITH TERMINAL SOCKET
                from £1.90
                from £1.90
                # 014
                MPN: N91173301
                HEX. NUT WITH WASHER
                from £1.47
                from £1.47
                # 015
                -
                COVER
                # 015
                MPN: 4T0955260
                COVER
                RIGHT
                from £95.11
                from £95.11
                # 016
                -
                HEXAGON SOCKET HEAD PANEL BOLT
                # 017
                MPN: N91042302
                OVAL HEXAGON SOCKET HEAD BOLT
                M6X16
                from £0.63
                from £0.63
                # 018
                MPN: 4T0955193
                SEAL
                from £3.07
                from £3.07
