lamborghini lp580-2 coupe (2019) crankshaft with bearings parts diagram

105.01.00 - crankshaft with bearings

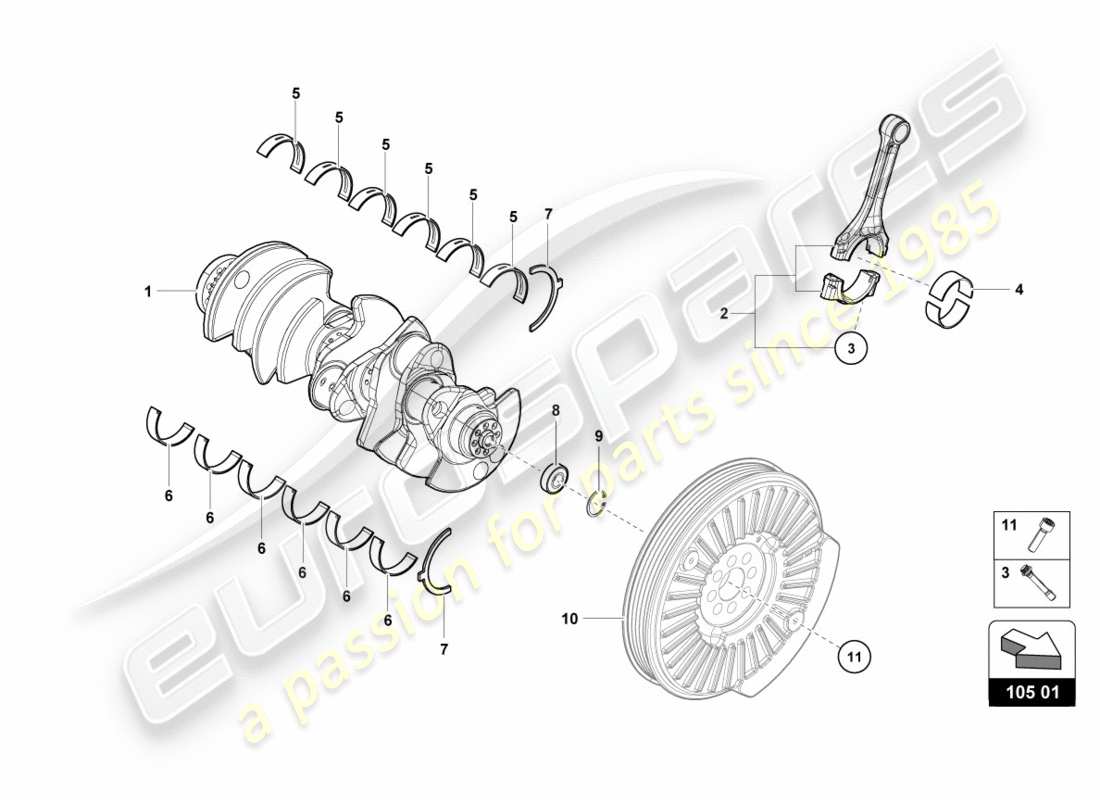

Lamborghini LP580-2 COUPE (2019) CRANKSHAFT WITH BEARINGS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 07L105101BC
        crankshaft
        Supersession
        Supersession
        # 002
        MPN: 07L198401F
        1 SET: CONNECTING RODS
        Supersession
        Supersession
        # 003
        MPN: WHT004562
        BOLT - CONNECTING ROD
        M9X1X50
        from £8.39
        from £8.39
        # 004
        MPN: 07L105701KGLB
        CONNECTING ROD BEARING SHELL
        1,396-YELLOW
        Supersession
        Supersession
        This part replaces part number 07L105701K
        # 005
        MPN: 079105561BEBLA
        BEARING SHELL
        Blue
        from £41.28
        from £41.28
        # 005
        MPN: 079105561BEGLB
        BEARING SHELL
        Yellow
        from £41.28
        from £41.28
        # 005
        MPN: 079105561BEGRN
        BEARING SHELL
        Green
        from £41.28
        from £41.28
        # 005
        MPN: 079105561BEROT
        BEARING SHELL
        red
        from £63.46
        from £63.46
        # 005
        MPN: 079105561BESWA
        BEARING SHELL
        Black
        from £41.28
        from £41.28
        # 006
        MPN: 079105591BEBLA
        BEARING SHELL
        Blue
        from £21.15
        from £21.15
        # 006
        MPN: 079105591BEGLB
        BEARING SHELL
        Yellow
        from £21.15
        from £21.15
        # 006
        MPN: 079105591BEGRN
        BEARING SHELL
        Green
        from £21.15
        from £21.15
        # 006
        MPN: 079105591BEROT
        BEARING SHELL
        red
        from £21.15
        from £21.15
        # 006
        MPN: 079105591BESWA
        BEARING SHELL
        Black
        from £21.15
        from £21.15
        # 007
        MPN: 078198421
        1 SET OF THRUST WASHERS
        from £27.63
        from £27.63
        # 008
        -
        BALL BEARING
        # 009
        -
        SECURING RING
        # 010
        -
        VIBRATION DAMPER
        # 011
        MPN: N91131202
        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
        M8X30
        from £2.04
        from £2.04
