103.02.00 - engine block

Lamborghini LP580-2 Coupe (2016) ENGINE BLOCK Parts Diagram

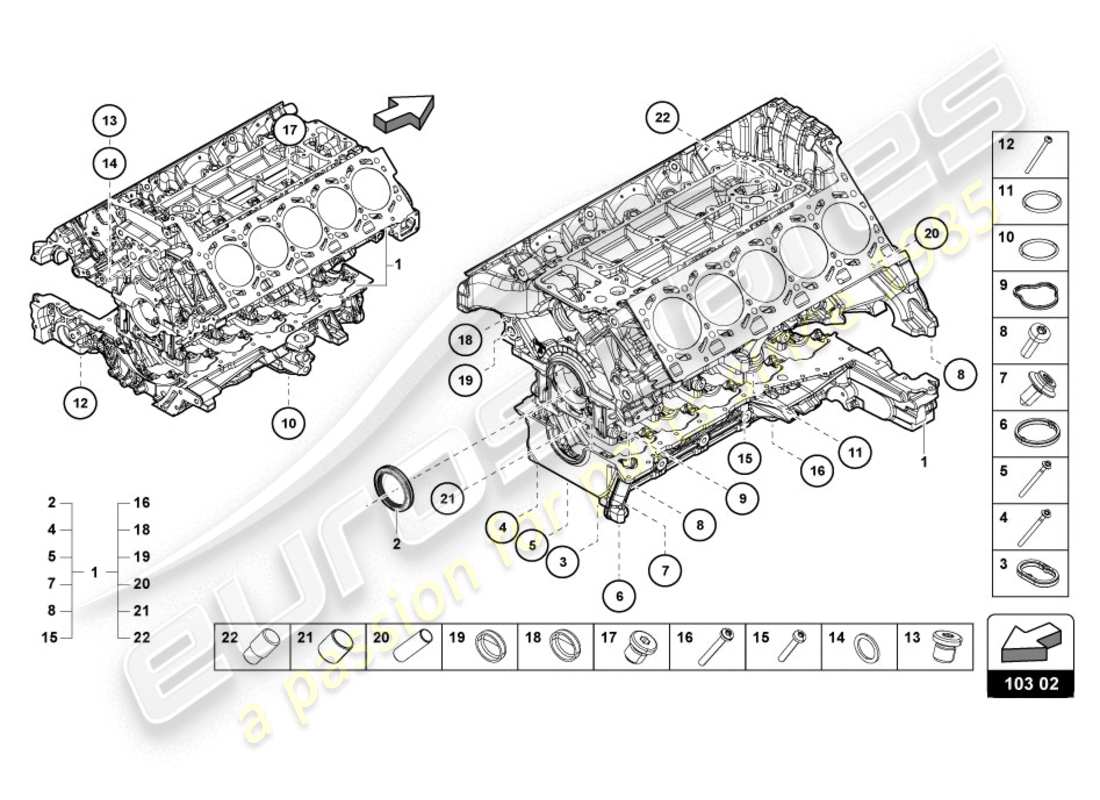

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 07L103011BQ
                  CRANKCASE HOUSING
                  Supersession
                  Supersession
                  # 002
                  MPN: 07L103051D
                  SHAFT OIL SEAL
                  55X74X10
                  Supersession
                  Supersession
                  # 003
                  MPN: 07L103121S
                  SEAL
                  from £5.80
                  from £5.80
                  # 004
                  MPN: WHT003328
                  BEARING SCREW
                  M10X116
                  from £2.95
                  from £2.95
                  # 005
                  MPN: WHT002235
                  BEARING SCREW
                  M10X125
                  from £2.95
                  from £2.95
                  # 006
                  MPN: 07L103121D
                  SEAL
                  from £6.19
                  from £6.19
                  # 007
                  MPN: N90989102
                  SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                  M8X16
                  from £2.09
                  from £2.09
                  # 008
                  MPN: N10124306
                  OVAL HEXAGON SOCKET HEAD BOLT
                  M6X20
                  from £0.89
                  from £0.89
                  # 009
                  MPN: 079103121AM
                  SEAL
                  from £10.38
                  from £10.38
                  # 010
                  MPN: N90713202
                  SEAL RING
                  31X3
                  from £2.95
                  from £2.95
                  # 011
                  MPN: N91008501
                  O-RING
                  35X3
                  from £4.91
                  from £4.91
                  # 012
                  MPN: N91097501
                  HEXAGON SOCKET FLAT HEAD BOLT
                  M6X85
                  from £3.38
                  from £3.38
                  # 013
                  MPN: N91119401
                  SEALING PLUG
                  M10X1X10
                  from £2.68
                  from £2.68
                  This part replaces part number N90281702
                  # 014
                  MPN: N0138063
                  SEAL RING
                  10X14
                  from £2.18
                  from £2.18
                  # 015
                  MPN: N10582103
                  OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD
                  M6X40
                  from £0.99
                  from £0.99
                  This part replaces part number N10331201 - and 1 more. Click to view details
                  # 016
                  MPN: N10470703
                  ROUND HD. SCREW
                  M6X50
                  from £1.46
                  from £1.46
                  This part replaces part number N10470701
                  # 017
                  MPN: 07L103271A
                  CHOKE
                  from £8.48
                  from £8.48
                  # 018
                  MPN: N01190310
                  END CAP
                  from £0.84
                  from £0.84
                  # 019
                  MPN: N0119078
                  END CAP
                  14
                  from £0.92
                  from £0.92
                  # 020
                  MPN: 055105277
                  SPRING PIN
                  from £1.34
                  from £1.34
                  # 021
                  MPN: 077115143D
                  CENTRE SLEEVE
                  10,4X12X12
                  from £8.73
                  from £8.73
                  This part replaces part number 077115143
                  # 022
                  MPN: 077103175B
                  VALVE
                  from £24.35
                  from £24.35
