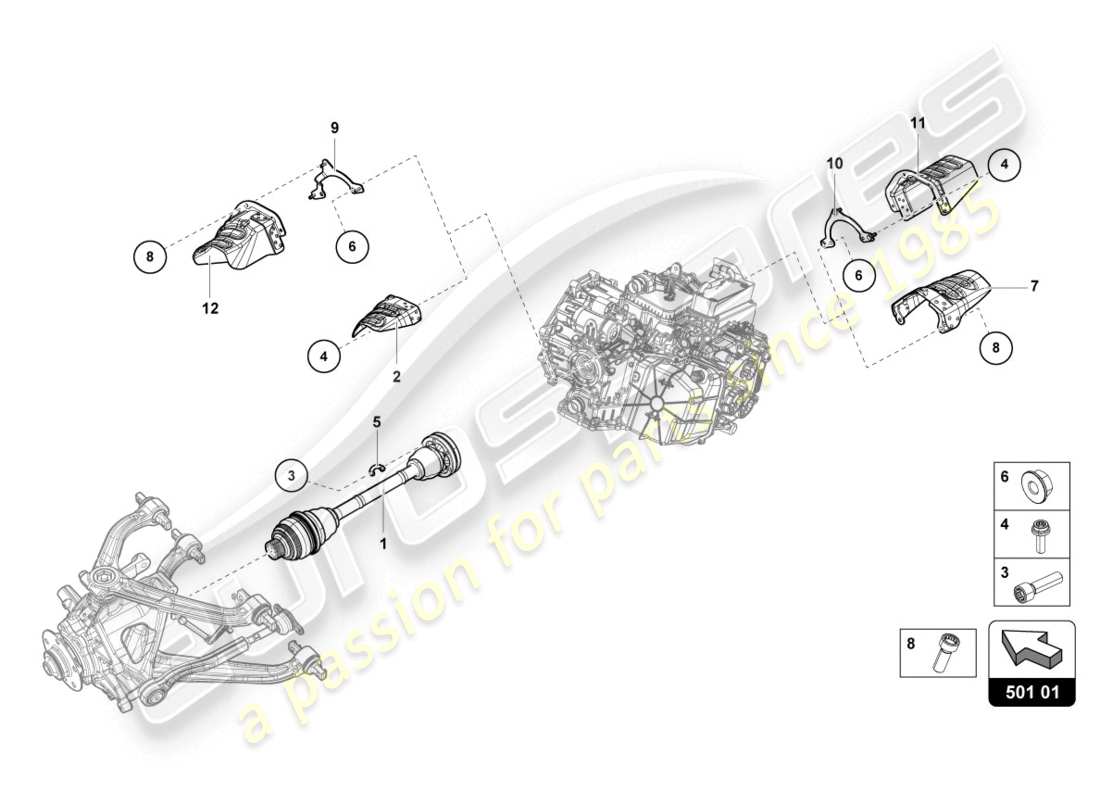

501.01.00 - AXLE SHAFT

Lamborghini LP580-2 Coupe (2016) AXLE SHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 4S0501203A
    DRIVE SHAFT
    CONTACT YOUR AREA MANAGER-LEFT
    from £457.48
    from £457.48
    # 001
    MPN: 4S0501204A
    DRIVE SHAFT
    CONTACT YOUR AREA MANAGER-RIGHT
    from £457.48
    from £457.48
    # 002
    MPN: 4H0301325A
    GUARD PLATE
    RIGHT
    from £12.44
    from £12.44
    # 003
    MPN: N10667901
    SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
    M10X55-M10X55
    from £1.87
    from £1.87
    This part replaces part number 008701008
    # 004
    MPN: N91048802
    SCREW WITH INT. SERRATIONS
    M8X20-M8X20
    from £2.04
    from £2.04
    # 005
    MPN: 7L0407357B
    SPACER
    from £1.24
    from £1.24
    # 006
    -
    HEXAGON COLLAR NUT
    # 007
    MPN: 4S0301325
    GUARD PLATE
    LEFT
    from £42.42
    from £42.42
    # 008
    MPN: N10517304
    SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.
    M8X20
    from £1.04
    from £1.04
    # 009
    -
    BRACKET
    # 010
    -
    BRACKET
    # 011
    -
    GUARD PLATE
    # 012
    -
    GUARD PLATE
