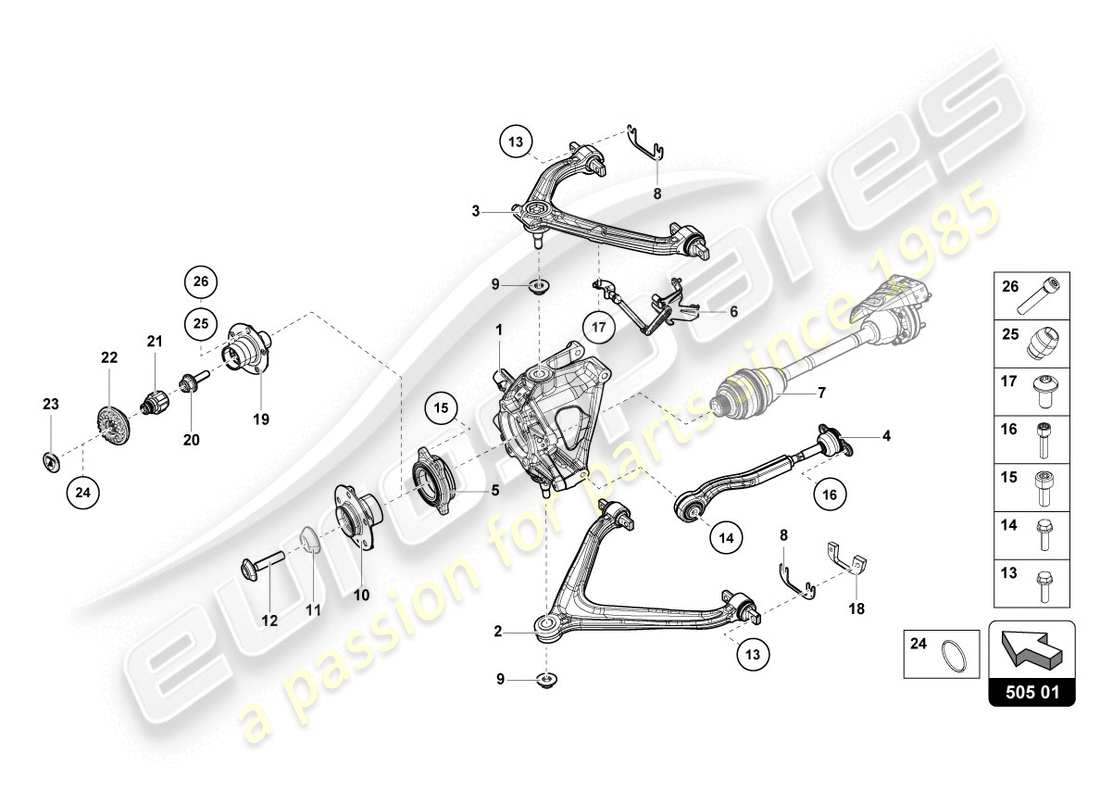

505.01.00 - rear axle

Lamborghini LP580-2 Coupe (2016) REAR AXLE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 4S0505434E
          WHEEL BEARING HOUSING
          CONTACT YOUR AREA MANAGER-RIGHT
          from £262.50
          from £262.50
          # 002
          MPN: 4T0505311A
          WISHBONE
          CONTACT YOUR AREA MANAGER-LEFT LOWER
          from £386.50
          from £386.50
          # 002
          MPN: 4T0505312A
          WISHBONE
          CONTACT YOUR AREA MANAGER-RIGHT LOWER
          from £386.50
          from £386.50
          # 003
          MPN: 4T0505323
          WISHBONE
          CONTACT YOUR AREA MANAGER-LEFT UPPER
          from £369.20
          from £369.20
          # 003
          MPN: 4T0505324
          WISHBONE
          CONTACT YOUR AREA MANAGER-RIGHT UPPER
          from £732.35
          from £732.35
          # 004
          MPN: 4S0501529B
          TRACK ROD
          LEFT A. RIGHT
          from £281.88
          from £281.88
          # 005
          MPN: 8K0407625Q
          DUOBLE BALL BEARING
          Supersession
          Supersession
          This part replaces part number 8K0407625N
          # 006
          MPN: 4S0941273D
          LEVEL SENSOR WITH POLES
          LEFT
          from £138.78
          from £138.78
          # 006
          MPN: 4S0941274D
          LEVEL SENSOR WITH POLES
          RIGHT
          from £76.33
          from £76.33
          # 007
          -
          AXLE SHAFT
          # 008
          MPN: 4S0407203C
          BALANCING PLATE
          1,0 MM-1MM
          from £4.88
          from £4.88
          # 008
          MPN: 4S0407203D
          BALANCING PLATE
          2,0 MM-2MM
          from £4.88
          from £4.88
          # 008
          MPN: 4S0407203E
          BALANCING PLATE
          3,0 MM-3MM
          from £4.88
          from £4.88
          # 008
          MPN: 4S0407203G
          BALANCING PLATE
          0,5 MM-0,5MM
          from £4.88
          from £4.88
          # 009
          MPN: WHT004898
          HEXAGON COLLAR NUT SELF-LOCKING
          M14X1,5-M14X1,5
          from £3.77
          from £3.77
          # 011
          -
          LENGTH-MEASURING DEVICE
          # 012
          MPN: 8E0407643A
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
          M16X72-M16X1,5X72
          from £4.61
          from £4.61
          # 013
          MPN: WHT007142
          HEXAGON BOLT
          M10X40-M10X40
          from £5.10
          from £5.10
          # 014
          MPN: WHT002059
          BOLT,HEX.HD.WITH SHOUL.(COMBI)
          AM12X1,5X80-M12X1,5X80
          from £3.16
          from £3.16
          # 015
          MPN: WHT000237
          BALL SCREW
          M12X45-M12X1,5X45
          from £3.93
          from £3.93
          # 016
          MPN: N10660901
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
          M10X40-M10X40
          from £4.28
          from £4.28
          # 017
          MPN: N10405604
          OVAL HEXAGON SOCKET HEAD BOLT
          M6X14-M6X14
          from £0.79
          from £0.79
          # 018
          -
          COMPENSATING PIECE
          # 019
          -
          WHEEL HUB
          # 020
          -
          SHOULDERED BOLT
          # 021
          -
          SUSPENSION BLOCKS
          # 022
          -
          NUT
          # 023
          -
          HUP CAP
          # 024
          MPN: 470698009
          O-RING
          from £5.93
          from £5.93
          # 025
          MPN: 470615315
          FOLLOWER
          from £13.05
          from £13.05
          # 026
          MPN: WHT008292
          SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
          M6X16
          from £1.21
          from £1.21
