615.04.00 - BRAKE DISC (VENTED)

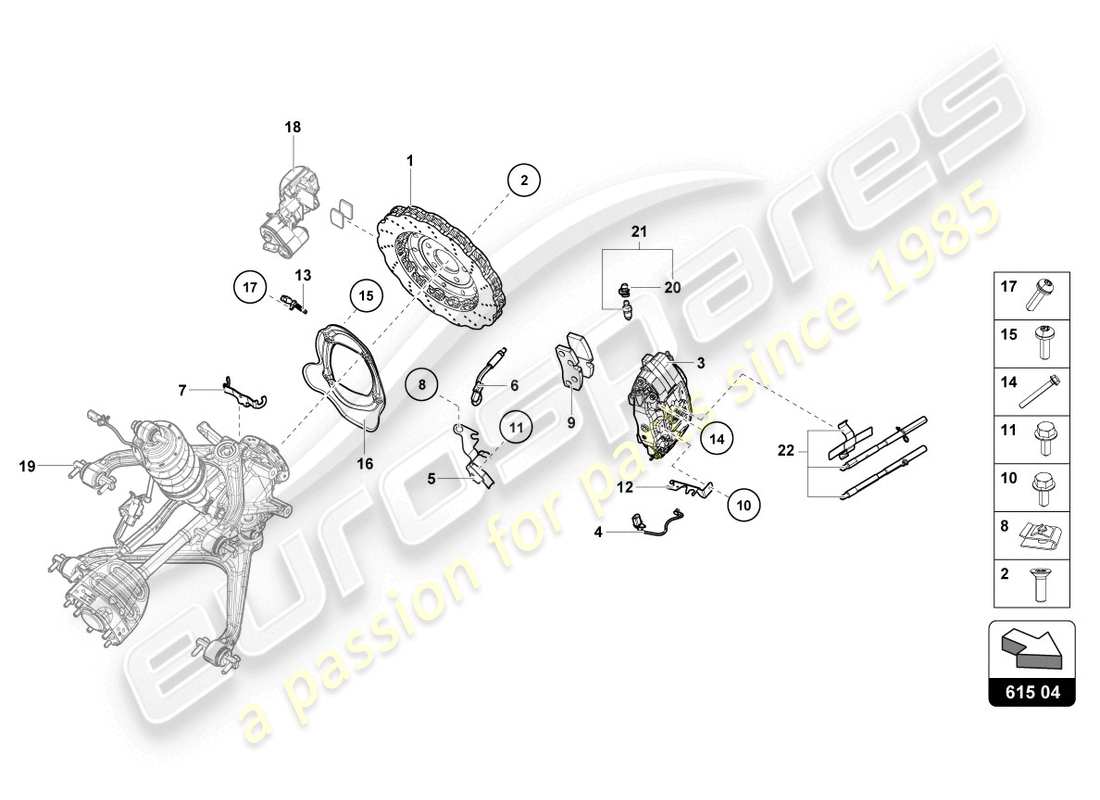

Lamborghini LP580-2 Coupe (2016) BRAKE DISC (VENTED) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 420615601J
        BRAKE DISC (VENTED)
        CAST IRON BRAKE-356X32MM 5/112 PUNCHED REAR
        from £445.30
        from £445.30
        BRAKE DISK Genuine Lamborghini - New (to order)
        # 002
        MPN: N10648301
        HEX SOCKET COUNTERSUNK BOLT
        M6X16
        from £0.56
        from £0.56
        HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
        Hex socket countersunk bolt (N 10648301) Genuine Porsche Part - New In stock
        # 003
        MPN: 4T0615405AJ
        FLOATING CALIPER BRAKE
        LEFT REAR 'VERDE MANTIS'
        from £972.73
        from £972.73
        SLIDING-CALIPER LAMBO GRUEN GUSS Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615405BA
        FLOATING CALIPER BRAKE
        LEFT REAR 'VERDE SCANDAL'
        from £2,650.14
        from £2,650.14
        SLIDING-CALIPER Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615405K
        FLOATING CALIPER BRAKE
        LEFT REAR BLACK
        from £829.19
        from £829.19
        SLIDING-CALIPER STAHL SCHWARZ Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615405L
        FLOATING CALIPER BRAKE
        LEFT REAR YELLOW
        from £506.46
        from £506.46
        SLIDING-CALIPER STAHL GELB Genuine Lamborghini - New (to order)
        SLIDING-CALIPER STAHL GELB Genuine Lamborghini - Used In stock
        # 003
        MPN: 4T0615405M
        FLOATING CALIPER BRAKE
        LEFT REAR SILVER
        from £907.87
        from £907.87
        SLIDING-CALIPER STAHL GRAU Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615405N
        FLOATING CALIPER BRAKE
        LEFT REAR ORANGE
        from £1,093.78
        from £1,093.78
        SLIDING-CALIPER STAHL ORANGE Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615405P
        FLOATING CALIPER BRAKE
        LEFT REAR RED
        from £1,093.78
        from £1,093.78
        SLIDING-CALIPER STAHL ROT Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615406AJ
        FLOATING CALIPER BRAKE
        RIGHT REAR 'VERDE MANTIS'
        from £972.73
        from £972.73
        SLIDING-CALIPER LAMBO GRUEN GUSS Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615406BA
        FLOATING CALIPER BRAKE
        RIGHT REAR 'VERDE SCANDAL'
        from £2,650.14
        from £2,650.14
        SLIDING-CALIPER Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615406K
        FLOATING CALIPER BRAKE
        RIGHT REAR BLACK
        from £829.19
        from £829.19
        SLIDING-CALIPER STAHL SCHWARZ Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615406L
        FLOATING CALIPER BRAKE
        RIGHT REAR YELLOW
        from £920.84
        from £920.84
        SLIDING-CALIPER STAHL GELB Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615406M
        FLOATING CALIPER BRAKE
        RIGHT REAR SILVER
        from £907.87
        from £907.87
        SLIDING-CALIPER STAHL GRAU Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615406N
        FLOATING CALIPER BRAKE
        RIGHT REAR ORANGE
        from £1,093.78
        from £1,093.78
        SLIDING-CALIPER STAHL ORANGE Genuine Lamborghini - New (to order)
        # 003
        MPN: 4T0615406P
        FLOATING CALIPER BRAKE
        RIGHT REAR RED
        from £1,093.78
        from £1,093.78
        SLIDING-CALIPER STAHL ROT Genuine Lamborghini - New (to order)
        # 004
        MPN: 420615437
        CONTACTS
        rear
        from £41.60
        from £41.60
        INDICATOR Genuine Lamborghini - New In stock
        # 005
        MPN: 4S0611847J
        RETAINER FOR BRAKE HOSE
        LEFT REAR
        from £8.09
        from £8.09
        BRACKET,BRAKE HOSELI.SEITE MSS Genuine Lamborghini - New (to order)
        BRACKET,BRAKE HOSELI.SEITE MSS Genuine Lamborghini - Used In stock
        # 005
        MPN: 4S0611848J
        RETAINER FOR BRAKE HOSE
        RIGHT REAR
        from £8.09
        from £8.09
        BRACKET,BRAKE HOSERE.SEITE MSS Genuine Lamborghini - New (to order)
        BRACKET,BRAKE HOSERE.SEITE MSS Genuine Lamborghini - Used In stock
        # 006
        MPN: 420611775A
        BRAKE HOSE
        rear
        from £20.00
        from £20.00
        BRAKE HOSE Genuine Lamborghini - New In stock
        BRAKE HOSE Genuine Lamborghini - Used In stock
        BRAKE HOSE Genuine Lamborghini - Used In stock
        # 007
        MPN: 4S0971845D
        HOLDER FOR WIRING HARNESS
        LEFT REAR
        from £5.97
        from £5.97
        BRACKET ACHSVERKABELUNG HI Genuine Lamborghini - New (to order)
        # 007
        MPN: 4S0971846A
        HOLDER FOR WIRING HARNESS
        RIGHT REAR
        from £10.19
        from £10.19
        BRACKET ACHSVERKABEL.HI. Genuine Lamborghini - New (to order)
        BRACKET ACHSVERKABEL.HI. Genuine Lamborghini - New (other) In stock
        BRACKET
        # 008
        MPN: 8K0611715
        RETAINING SPRING
        from £0.68
        from £0.68
        RETAINING SPRING Genuine Lamborghini - New In stock
        retaining spring (8K0611715) Genuine Porsche Part - New (to order)
        # 009
        MPN: 420698451B
        1 SET OF BRAKE PADS WITH WEAR DISPLAY FOR DISC BRAKES ECO
        356X32MM
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 010
        MPN: N10406504
        OVAL HEXAGON SOCKET HEAD BOLT
        M6X12
        from £1.13
        from £1.13
        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
        Oval hexagon socket head bolt (N 10406504) Genuine Porsche Part - New (to order)
        # 011
        MPN: N91042302
        OVAL HEXAGON SOCKET HEAD BOLT
        M6X16
        from £0.63
        from £0.63
        HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New In stock
        Oval hexagon socket head bolt (N 91042302) Genuine Porsche Part - New In stock
        # 012
        MPN: 4S0611847D
        RETAINER FOR BRAKE HOSE
        LEFT REAR
        from £6.98
        from £6.98
        BRACKET,BRAKE HOSELI.SEITE MSS Genuine Lamborghini - New (to order)
        BRACKET,BRAKE HOSELI.SEITE MSS Genuine Lamborghini - New (other) In stock
        BRACKET
        # 012
        MPN: 4S0611848D
        RETAINER FOR BRAKE HOSE
        RIGHT REAR
        from £6.98
        from £6.98
        BRACKET,BRAKE HOSELI.SEITE MSS Genuine Lamborghini - New (to order)
        BRACKET,BRAKE HOSELI.SEITE MSS Genuine Lamborghini - New (other) In stock
        BRACKET
        # 013
        MPN: 4E0927803F
        SPEED SENSOR
        LEFT
        from £46.41
        from £46.41
        This part replaces part number 4E0927803D which we have in stock - and 7 more. Click to view details
        SPEED SENSOR RIGHT Genuine Lamborghini - New (to order)
        SPEED SENSOR RIGHT Genuine Lamborghini - Used In stock
        speed sensor (4E0927803F) Genuine Porsche Part - New (to order)
        # 013
        MPN: 4E0927804F
        SPEED SENSOR
        RIGHT
        from £46.41
        from £46.41
        This part replaces part number 4E0927804D which we have in stock - and 6 more. Click to view details
        SPEED SENSOR LEFT Genuine Lamborghini - New (to order)
        SPEED SENSOR LEFT Genuine Lamborghini - Used In stock
        speed sensor (4E0927804F) Genuine Porsche Part - New (to order)
        # 014
        MPN: N91141801
        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
        M12X1,5X105X90
        from £12.89
        from £12.89
        TRIPLE SQUARE BOLTBM12X1.5X105X90 Genuine Lamborghini - New In stock
        # 015
        MPN: N10406504
        OVAL HEXAGON SOCKET HEAD BOLT
        M6X12
        from £1.07
        from £1.07
        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
        Oval hexagon socket head bolt (N 10406504) Genuine Porsche Part - New (to order)
        # 016
        MPN: 4S0615611A
        COVER PLATE FOR BRAKE DISC
        LEFT
        from £13.13
        from £13.13
        COVER Genuine Lamborghini - New (to order)
        COVER Genuine Lamborghini - Used In stock
        # 016
        MPN: 4S0615612A
        COVER PLATE FOR BRAKE DISC
        RIGHT
        from £13.13
        from £13.13
        COVER Genuine Lamborghini - New In stock
        COVER Genuine Lamborghini - Used In stock
        # 017
        MPN: N01474011
        SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
        M6X16
        from £1.26
        from £1.26
        PAN HEAD BOLT M6X16 Genuine Lamborghini - New In stock
        bolt, with hex. socket - hd. - M 6 X 16 - F 94-MS400 096>> - F 94-MS430 324>> (N 01474011) Genuine Porsche Part - New In stock
        # 018
        -
        FLOATING CALIPER
        # 019
        -
        SUSPENSION
        # 020
        MPN: 80A611483
        DUST CAP
        from £3.68
        from £3.68
        DUST CAP Genuine Lamborghini - New (to order)
        # 021
        MPN: 8A0615273
        BREATHER VALVE
        from £11.68
        from £11.68
        BLEEDER SCREW Genuine Lamborghini - New (to order)
        bleeder valve (8A0615273) Genuine Porsche Part - New (to order)
        # 022
        MPN: 420698269
        1 SET ATTACHMENT PARTS
        rear
        from £47.56
        from £47.56
        RETAINING SPRING Genuine Lamborghini - New (to order)
