805.01.00 - CHASSIS

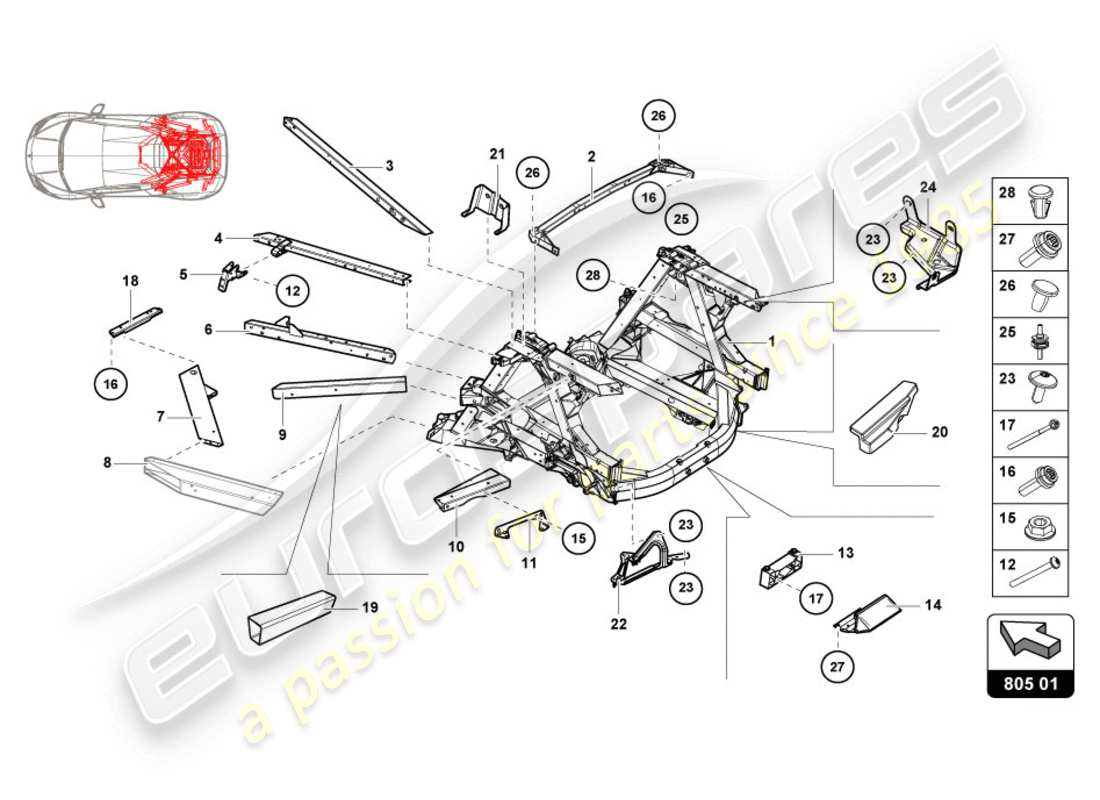

Lamborghini LP580-2 Coupe (2016) CHASSIS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4T8813031K
Frame
CONTACT YOUR AREA MANAGER-REAR ENGINE BAY
from £9,500.00
from £9,500.00
# 002
MPN: 4S0813441F
REINFORCEMENT
from £115.43
from £115.43
# 003
MPN: 4T8817361C
SUPPORT
CONTACT YOUR AREA MANAGER-LEFT REAR
from £147.42
from £147.42
# 003
MPN: 4T8817362C
SUPPORT
CONTACT YOUR AREA MANAGER-RIGHT REAR
from £147.42
from £147.42
# 004
MPN: 4T8810243E
SUPPORT
CONTACT YOUR AREA MANAGER-LEFT UPPER
from £229.13
from £229.13
# 004
MPN: 4T8810244F
SUPPORT
CONTACT YOUR AREA MANAGER-RIGHT UPPER
from £51.84
from £51.84
# 005
MPN: 4T0813499B
ADAPTER
LEFT
from £7.45
from £7.45
# 005
MPN: 4T0813500B
ADAPTER
RIGHT
from £5.57
from £5.57
# 006
MPN: 4T8814201E
SUPPORT
CONTACT YOUR AREA MANAGER-LEFT LOWER
from £74.55
from £74.55
# 006
MPN: 4T8814202D
SUPPORT
CONTACT YOUR AREA MANAGER-RIGHT LOWER
from £74.55
from £74.55
# 007
-
CROSS MEMBER
# 008
-
CROSS MEMBER
# 009
MPN: 4S0813253C
REINFORCEMENT
CONTACT YOUR AREA MANAGER-LEFT
from £113.27
from £113.27
# 009
MPN: 4S0813254B
REINFORCEMENT
CONTACT YOUR AREA MANAGER-RIGHT
from £48.16
from £48.16
# 010
MPN: 4T0810251B
CARRIER
LEFT
from £41.47
from £41.47
# 010
MPN: 4T0810252B
CARRIER
RIGHT
from £39.73
from £39.73
# 011
MPN: 4T0810439B
BRACKET
LEFT
from £13.54
from £13.54
# 011
MPN: 4T0810440B
BRACKET
RIGHT
from £7.45
from £7.45
# 012
MPN: N91097301
HEXAGON SOCKET FLAT HEAD BOLT
M6X45
from £1.25
from £1.25
# 013
MPN: 4S0813857B
REINFORCEMENT
CONTACT YOUR AREA MANAGER
from £57.75
from £57.75
# 014
MPN: 4T0813483B
SUPPORT
CONTACT YOUR AREA MANAGER
from £74.42
from £74.42
# 015
MPN: N01508210
HEXAGON COLLAR NUT
M6
from £1.21
from £1.21
# 016
MPN: N91128001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X25
from £0.95
from £0.95
# 017
MPN: N10683301
HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)
M10X115
from £3.90
from £3.90
# 018
MPN: 4S0813239C
BRACE
CONTACT YOUR AREA MANAGER
from £24.54
from £24.54
# 019
MPN: 4S0813945K
SLEEVE
TO BE USED FOR REF. 9 - CONTACT YOUR AREA MANAGER-LEFT
from £166.02
from £166.02
# 020
MPN: 4T0814329
BRACKET
VALID FOR 2WD VERSION FOR A MARKET USA, CANADA, SOUTH KOREA AND CHINA-LEFT (EUROPE, USA spec vehicles)
from £182.02
from £182.02
# 020
MPN: 4T0814330
BRACKET
VALID FOR 2WD VERSION FOR A MARKET USA, CANADA, SOUTH KOREA AND CHINA-RIGHT (EUROPE, USA spec vehicles)
from £156.08
from £156.08
# 021
-
BRACKET
# 022
-
ARM
# 023
-
OVAL HEXAGON SOCKET HEAD BOLT
# 024
-
BRACKET
# 025
-
ADJUSTING PIN
# 026
-
CAP CLOSURE
# 027
MPN: N10664801
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X20
from £1.09
from £1.09
# 028
MPN: 8D5827499
STOP
from £0.97
from £0.97
