lamborghini lp580-2 spyder (2016) for fuel tank and fuel line fuel line fasteners parts diagram

201.02.00 - FOR FUEL TANK AND FUEL LINE FUEL LINE FASTENERS

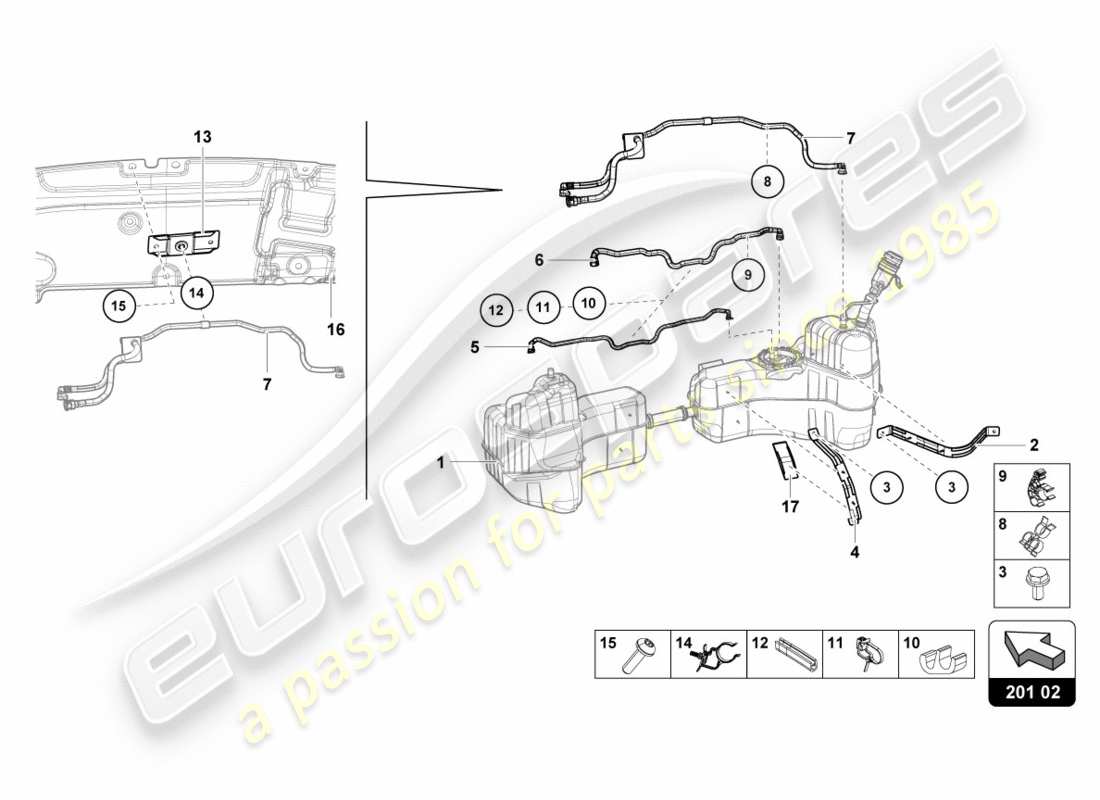

Lamborghini LP580-2 SPYDER (2016) FOR FUEL TANK AND FUEL LINE FUEL LINE FASTENERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            -
            FUEL TANK WITH ATTACHMENTS
            # 002
            MPN: 4S0201653G
            TENSIONING STRAP
            LEFT
            from £21.38
            from £21.38
            # 002
            MPN: 4S0201654G
            TENSIONING STRAP
            RIGHT
            from £21.38
            from £21.38
            # 003
            MPN: N10704601
            SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
            M8X35
            from £1.34
            from £1.34
            # 004
            MPN: 4S0201653H
            TENSIONING STRAP
            CENTRE LEFT
            from £21.38
            from £21.38
            # 004
            MPN: 4S0201654H
            TENSIONING STRAP
            CENTRE RIGHT
            from £21.38
            from £21.38
            # 005
            MPN: 4S0201420G
            FUEL LINE
            from £48.27
            from £48.27
            # 006
            MPN: 4S0201419G
            FUEL LINE
            from £83.53
            from £83.53
            # 007
            MPN: 4T7201167C
            breather line
            from £86.08
            from £86.08
            # 009
            MPN: 4S0201367C
            RETAINER FOR FUEL LINE
            4 POINT
            from £7.74
            from £7.74
            # 010
            MPN: 4S0201532B
            SPACER HOLDER
            from £3.90
            from £3.90
            # 011
            MPN: 4S0201888
            CABLE TIE WITH HOLDER FOR PLASTIC PIN:
            4,5X187 5
            from £2.42
            from £2.42
            # 012
            MPN: 701947149A
            BEADING
            100MM
            from £2.38
            from £2.38
            # 013
            -
            ARM
            # 014
            MPN: 4S0201449B
            SECURING CLIP
            from £13.32
            from £13.32
            # 015
            -
            OVAL HEXAGON SOCKET HEAD BOLT
            # 016
            -
            PROTECTOR
            # 017
            MPN: 4S0201645
            EDGE PROTECTION
            LEFT
            from £3.91
            from £3.91
            # 017
            MPN: 4S0201645A
            EDGE PROTECTION
            RIGHT
            from £3.91
            from £3.91
