615.01.00 - CERAMIC BRAKE DISC FRONT

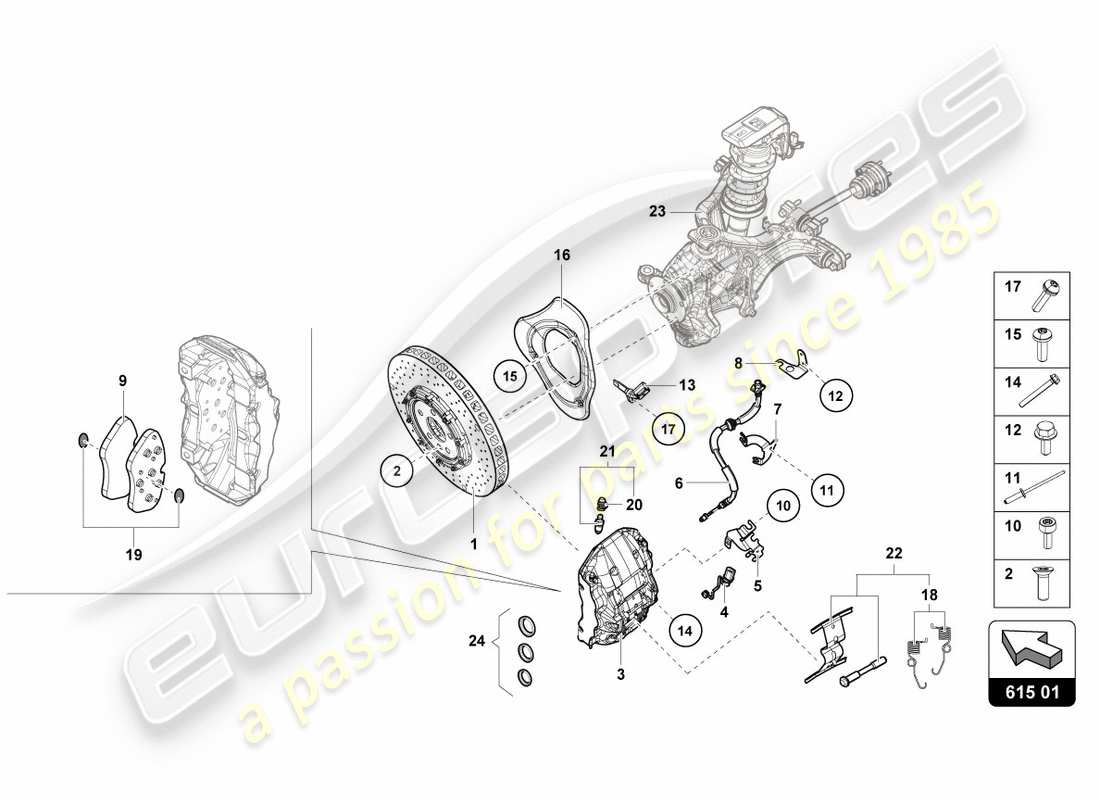

Lamborghini LP580-2 SPYDER (2016) CERAMIC BRAKE DISC FRONT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4S0615301A
CERAMIC BRAKE DISC (VENTED)
380X38MM 5/112 LEFT FRONT
from £4,530.73
from £4,530.73
# 001
MPN: 4S0615302A
CERAMIC BRAKE DISC (VENTED)
RIGHT FRONT
from £4,530.73
from £4,530.73
# 002
MPN: N10648301
HEX SOCKET COUNTERSUNK BOLT
M6X16
from £0.56
from £0.56
# 003
MPN: 4T0615105AL
BRAKE CALIPER HOUSING
UNTIL VIN ZHWEC1ZF5HLA 06214 ORDER ALSO RIGHT 4T0615106AL - FROM VIN LA07429 ALSO ORDER REF. 9-LEFT YELLOW
from £2,040.56
from £2,040.56
# 003
MPN: 4T0615105CA
BRAKE CALIPER HOUSING
UNTIL VIN ZHWUR2ZF8HLA 07423 ORDER ALSO RIGHT 4T0615106CA-LEFT BLACK
from £1,074.75
from £1,074.75
# 003
MPN: 4T0615105CE
BRAKE CALIPER HOUSING
UNTIL VIN ZHWEC1ZF6HLA 07422 ORDER ALSO RIGHT 4T0615106CE-LEFT RED
from £2,057.85
from £2,057.85
# 003
MPN: 4T0615105DG
BRAKE CALIPER HOUSING
UNTIL VIN LA13951 ORDER ALSO RIGHT 4T0615106DG - FROM VIN LA13951 ALSO ORDER REF.9-LEFT 'VERDE MANTIS'
from £2,204.84
from £2,204.84
# 003
MPN: 4T0615105DH
BRAKE CALIPER HOUSING
AD PERSONAM-LEFT 'VERDE SCANDAL'
from £3,778.49
from £3,778.49
# 003
MPN: 4T0615105DJ
BRAKE CALIPER HOUSING
AD PERSONAM-LEFT BLUE
from £3,138.66
from £3,138.66
# 003
MPN: 4T0615105S
BRAKE CALIPER HOUSING
LEFT SILVER
from £2,057.85
from £2,057.85
# 003
MPN: 4T0615105T
BRAKE CALIPER HOUSING
UNTIL VIN ZHWUC1ZF2GLA 03717 ORDER ALSO RIGHT 4T0615106T-LEFT ORANGE
from £2,049.21
from £2,049.21
# 003
MPN: 4T0615106AL
BRAKE CALIPER HOUSING
UNTIL VIN ZHWEC1ZF5HLA 06214 ORDER ALSO LEFT 4T0615105AL-RIGHT YELLOW
from £2,040.56
from £2,040.56
# 003
MPN: 4T0615106CA
BRAKE CALIPER HOUSING
UNTIL VIN ZHWUR2ZF8HLA 07423 ORDER ALSO LEFT 4T0615105CA-RIGHT BLACK
from £1,954.09
from £1,954.09
# 003
MPN: 4T0615106CE
BRAKE CALIPER HOUSING
UNTIL VIN ZHWEC1ZF6HLA 07422 ORDER ALSO LEFT 4T0615105CE-RIGHT RED
from £2,057.85
from £2,057.85
# 003
MPN: 4T0615106CF
BRAKE CALIPER HOUSING
UNTIL VIN ZHWER1ZF9HLA 07459 ORDER ALSO LEFT 4T0615105CF-RIGHT 'VERDE MANTIS'
from £1,153.22
from £1,153.22
# 003
MPN: 4T0615106DH
BRAKE CALIPER HOUSING
AD PERSONAM-RIGHT 'VERDE SCANDAL'
from £3,778.49
from £3,778.49
# 003
MPN: 4T0615106DJ
BRAKE CALIPER HOUSING
AD PERSONAM-RIGHT BLUE
from £3,138.66
from £3,138.66
# 003
MPN: 4T0615106S
BRAKE CALIPER HOUSING
RIGHT SILVER
from £2,057.85
from £2,057.85
# 003
MPN: 4T0615106T
BRAKE CALIPER HOUSING
UNTIL VIN ZHWUC1ZF2GLA 03717 ORDER ALSO LEFT 4T0615105T-RIGHT ORANGE
from £2,049.21
from £2,049.21
# 004
MPN: 4S0615437B
CONTACTS
FRONT
from £52.40
from £52.40
# 005
MPN: 4S0611845H
BRACKET
LEFT
from £7.35
from £7.35
# 005
MPN: 4S0611846H
BRACKET
RIGHT
from £6.98
from £6.98
# 006
MPN: 4S0611707F
BRAKE HOSE
FRONT
from £35.85
from £35.85
# 007
MPN: 4S0611841H
BRACKET
LEFT FRONT
from £7.35
from £7.35
# 007
MPN: 4S0611842H
BRACKET
RIGHT FRONT
from £7.35
from £7.35
# 008
MPN: 4S0611847E
RETAINER FOR BRAKE HOSE
LEFT FRONT
from £2.85
from £2.85
# 008
MPN: 4S0611848E
RETAINER FOR BRAKE HOSE
RIGHT FRONT
from £28.49
from £28.49
# 009
MPN: 4S0698151F
FRONT BRAKE PADS SET
Supersession
Supersession
# 010
MPN: N10572403
SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.
M8X16
from £1.82
from £1.82
# 011
MPN: N0902619
HEXAGON HEAD BOLT (COMBI)
M6X20
from £1.31
from £1.31
# 012
MPN: N90692402
POP RIVET
4,8X10
from £1.16
from £1.16
# 013
MPN: 4E0927803F
SPEED SENSOR
RIGHT
from £46.41
from £46.41
This part replaces part number 4E0927803D which we have in stock - and 7 more. Click to view details
# 013
MPN: 4E0927804F
SPEED SENSOR
LEFT
from £46.41
from £46.41
This part replaces part number 4E0927804D which we have in stock - and 6 more. Click to view details
# 014
MPN: WHT001330A
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
M12X1,5X77X30
from £8.39
from £8.39
This part replaces part number WHT001330
# 015
MPN: N10406504
OVAL HEXAGON SOCKET HEAD BOLT
M6X12
from £1.13
from £1.13
# 016
MPN: 4S0615311
COVER PLATE FOR BRAKE DISC
LEFT
from £15.75
from £15.75
# 016
MPN: 4S0615312
COVER PLATE FOR BRAKE DISC
RIGHT
from £15.75
from £15.75
# 017
MPN: N01474011
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
M6X16
from £1.26
from £1.26
# 018
MPN: 0R1400210
1 SET SPRINGS
4 SPRINGS FOR KIT
from £23.84
from £23.84
# 019
MPN: 4T0698010
1 SET DOUBLE-SIDED ADHESIVE TAPE
from £70.12
from £70.12
# 020
MPN: 211611483
DUST CAP
from £3.47
from £3.47
# 021
MPN: 8A0615273
BREATHER VALVE
from £11.68
from £11.68
# 022
MPN: 4S0698269A
1 SET ATTACHMENT PARTS
from £65.89
from £65.89
# 023
-
AXLE SHAFT
# 024
MPN: 4E0698507
SET OF GASKETS FOR BRAKE CALIPER HOUSING
from £50.51
from £50.51
